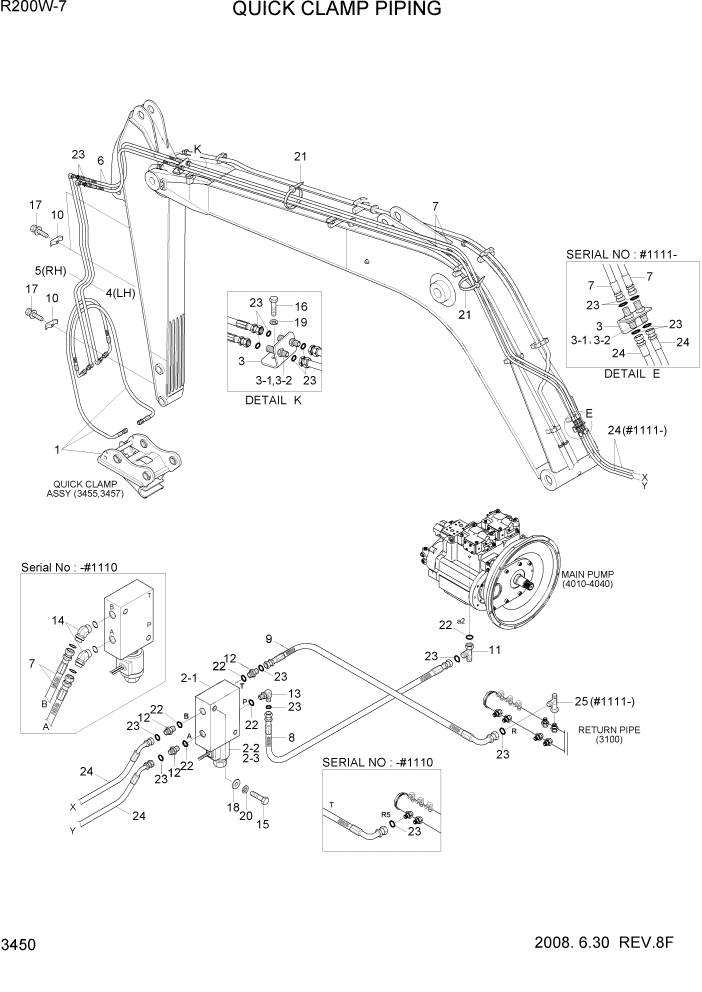

Запчасти Hyundai R200W7 PAGE 3450 QUICK CLAMP PIPING ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

QUICK CLAMP PIPING

NOT #0001

1шт.

1

@

QUICK CLAMP ASSY

NOT #0001

1шт.

2

34EA-91720

SOLENOID VALVE

1шт.

2-1

34EA-91720BLOCK

MANIFOLD

#0001

1шт.

2-2

GS044200NC

VALVE-SOLENOID

#0001

1шт.

2-3

CAP024L+DT

COIL

#0001

1шт.

3

31N4-90660

TERMINAL-Q/CLAMP

#0126

1шт.

3

31N4-90680

TERMAINAL-Q/CLAMP

#0127 - #1110

1шт.

3

31N4-90680

TERMAINAL-Q/CLAMP

#1111

2шт.

3-1

31E4-3033

CONNECTOR-2NUT

#0126

2шт.

3-1

X540-120001

CONNECTOR-ORFS

#0127

2шт.

3-2

S621-011001

O-RING

#0127

2шт.

4

31N6-95720

PIPE ASSY

2.9M,2.4M AM #0126

1шт.

4

31N6-95721

PIPE ASSY

2.9M,2.4M,2.6M #0127

1шт.

4

31N6-95740

PIPE ASSY

2.0M AM #0126

1шт.

4

31N6-95741

PIPE ASSY

2.0M AM #0127 - #0784

1шт.

4

31N6-95770

PIPE ASSY

2.0M AM #0785

1шт.

5

31N6-95730

PIPE ASSY

2.9M,2.4M AM #0126

1шт.

5

31N6-95731

PIPE ASSY

2.9M,2.4M,2.6M #0127

1шт.

5

31N6-95750

PIPE ASSY

2.0M AM #0126

1шт.

5

31N6-95751

PIPE ASSY

2.0M AM #0127 - #0784

1шт.

5

31N6-95780

PIPE ASSY

2.0M AM #0785

1шт.

6

P603-047039

HOSE ASSY-THD

2.9M AM #0031

2шт.

6

P603-047033

HOSE ASSY-THD

2.9M AM #0032 - #0126

2шт.

6

P913-047033

HOSE ASSY-ORFS 0X0

2.9M,2.6M AM #0127

2шт.

6

P603-047022

HOSE ASSY-THD

2.0M 2.4M AM #0126

2шт.

6

P913-047022

HOSE ASSY-ORFS 0X0

2.0M 2.4M AM #0127 - #0828

2шт.

6

P913-047022

HOSE ASSY-ORFS 0X0

2.4M AM #0829

2шт.

6

P603-047064

HOSE ASSY-THD

3.9M AM #0126

2шт.

6

P913-047064

HOSE ASSY-ORFS 0X0

3.9M AM #0127

2шт.

6

P913-047030

HOSE ASSY-ORFS 0X0

2.0M AM #0829

2шт.

7

P600-047165

HOSE ASSY-THD 0X0

#0126

2шт.

7

P910-047165

HOSE ASSY-ORFS 0X0

#0127 - #1110

2шт.

7

P910-047121

HOSE ASSY-ORFS 0X0

#1111

2шт.

8

P603-047024

HOSE ASSY-THD

#0126

1шт.

8

P913-047024

HOSE ASSY-ORFS 0X0

#0127 - #0618

1шт.

8

31N4-95760

HOSE ASSY-Q/COUPLER

#0619

1шт.

9

P420-042012

HOSE ASSY-COMP 0X90

#0126

1шт.

9

X420-042012

HOSE ASSY-ORFS 0X90

#0127 - #0185

1шт.

9

P930-042012

HOSE ASSY-ORFS 0X90

#0186

1шт.

10

34EA-91811

CLAMP-PIPE

3шт.

11

31EM-94090

TEE

#0126

1шт.

11

31N4-22170

TEE-RUN TYPE

#0127

1шт.

12

P010-110002

CONNECTOR

#0126

1шт.

12

X500-110001

CONNECTOR-ORFS

#0127 - #1110

1шт.

12

X500-110001

CONNECTOR-ORFS

#1111

3шт.

13

P020-110001

ELBOW-90

#0126

1шт.

13

X520-110001

ELBOW-90,ORFS

#0127

1шт.

14

P030-110001

ELBOW-45

#0126

2шт.

14

X530-110001

ELBOW-45,ORFS

#0127 - #1110

2шт.

15

S017-100552

BOLT-HEX

#0126

2шт.

15

S017-100506

BOLT-HEX

#0127

2шт.

16

S017-160752

BOLT-HEX

#0126

1шт.

16

S017-16075A

BOLT-HEX

#0127

1шт.

17

S037-103022

BOLT-W/WASHER

#0126

3шт.

17

S037-103026

BOLT-W/WASHER

#0127

3шт.

18

S411-100002

WASHER-SPRING

#0126

2шт.

18

S411-100006

WASHER-SPRING

#0127

2шт.

19

S411-160002

WASHER-SPRING

#0126

1шт.

19

S411-160006

WASHER-SPRING

#0127

1шт.

20

S441-100002

WASHER-HARDENED

#0126

2шт.

20

S441-100006

WASHER-HARDENED

#0127 - #1110

2шт.

20

S403-101006

WASHER-PLAIN

#1111

2шт.

21

S554-054300

CLAMP-BAND

20шт.

22

S631-011004

O-RING

#0127

5шт.

23

S621-011001

O-RING

#0127 - #1110

12шт.

23

S621-011001

O-RING

#1111

16шт.

24

P920-047037

HOSE ASSY-ORFS 0X45

#1111

2шт.

25

X840-515151

TEE-R/TYPE,SWIVEL,ORFS

#1111

1шт.
