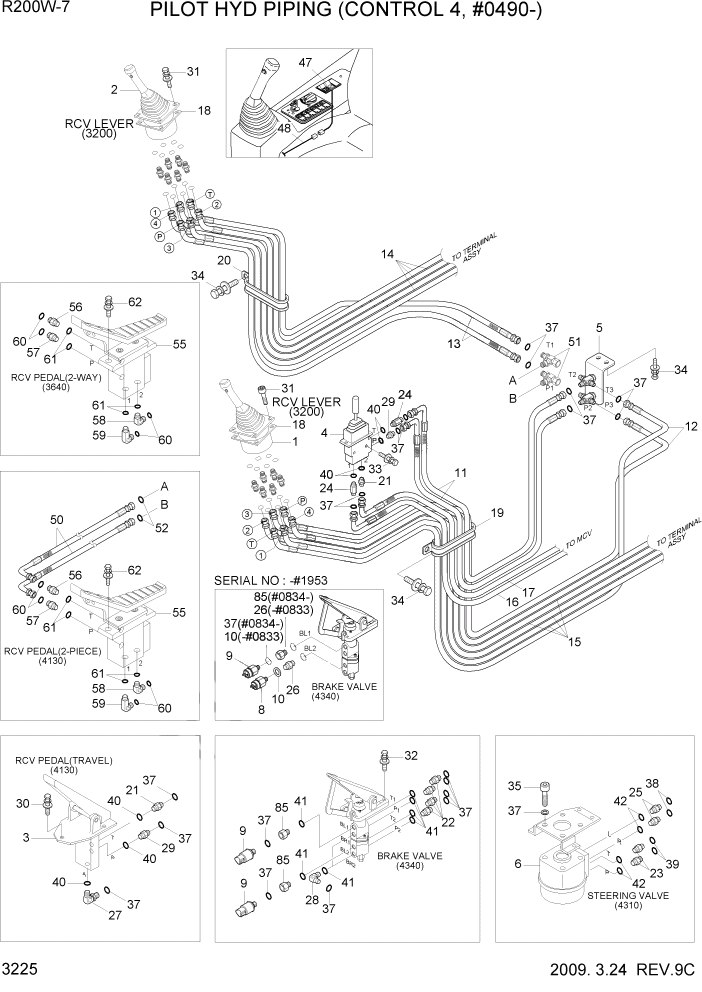

Запчасти Hyundai R200W7 PAGE 3225 PILOT HYD PIPING(CONTROL 4, #0490-) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

@

RCV SUB ASSY-LH

NOT

1шт.

2

@

RCV SUB ASSY-RH

NOT

1шт.

3

@

ACCELERATOR PEDAL

NOT

1шт.

4

@

RCV LEVER

NOT

1шт.

5

@

CROSS ASSY

NOT

1шт.

6

@

STEERING VALVE

NOT

1шт.

7

@

BRAKE VALVE ASSY

NOT

1шт.

8

34EA-30160

SWITCH-PRESSURE

WORKING LAMP #1953

1шт.

8

31N4-30160

SWITCH-PRESSURE

WORKING LAMP #1954

1шт.

9

31L7-40030

SWITCH-PRESSURE

STOP LAMP #0933

1шт.

9

31L7-41030

SWITCH-PRESSURE

STOP LAMP #0834 - #1953

1шт.

9

31Q4-40560

SWITCH-PRESSURE

STOP LAMP #1954

1шт.

10

P392-120000

WASHER-COPPER

#0833

2шт.

10

P392-120000

WASHER-COPPER

#0834 - #1954

1шт.

11

X410-042024

HOSE ASSY-ORFS 0X45

2шт.

12

X410-042026

HOSE ASSY-ORFS 0X45

2шт.

13

X410-042028

HOSE ASSY-ORFS 0X45

2шт.

14

X410-042036

HOSE ASSY-ORFS 0X45

4шт.

15

X410-042038

HOSE ASSY-ORFS 0X45

4шт.

16

X420-042056

HOSE ASSY-ORFS 0X90

1шт.

17

X420-042066

HOSE ASSY-ORFS 0X90

1шт.

18

31M6-51061

SHIM(3.2T)

2шт.

19

31E7-0309

CLAMP-HOSE

1шт.

20

31E7-0312

CLAMP-HOSE

1шт.

21

X500-110001

CONNECTOR-ORFS

2шт.

22

X500-110002

CONNECTOR-ORFS

4шт.

23

X500-310003

CONNECTOR-ORFS

2шт.

24

X511-104512

CONNECTOR-LONG,ORFS

2шт.

25

31N5-30050

CONNECTOR

2шт.

26

31EE-30061

CONNECTOR

#0833

2шт.

26

31EE-30061

CONNECTOR

#0834 - #1953

1шт.

27

X520-110001

ELBOW-90,ORFS

1шт.

28

X520-110002

ELBOW-90,ORFS

2шт.

29

31N6-25060

FILTER-LAST GUARD

2шт.

30

S035-062026

BOLT-W/WASHER

3шт.

31

S035-063046

BOLT-W/WASHER

8шт.

32

S035-083026

BOLT-W/WASHER

4шт.

33

S035-083526

BOLT-W/WASHER

2шт.

34

S037-102526

BOLT-W/WASHER

4шт.

35

S109-100256

BOLT-SOCKET

4шт.

36

S403-10100B

WASHER-PLAIN

4шт.

37

S621-011001

O-RING

#0833

19шт.

37

S621-011001

O-RING

#0834 - #1953

20шт.

37

S621-011001

O-RING

#1954

21шт.

38

S621-012001

O-RING

2шт.

39

S621-014001

O-RING

2шт.

40

S631-011004

O-RING

7шт.

41

S631-014004

O-RING

8шт.

42

S611-016001

O-RING

4шт.

47

21E6-30540

SWITCH-BREAKER

1шт.

48

21NB-00200

HARNESS-EXT

2-WAY

1шт.

50

X420-042020

HOSE ASSY-ORFS 0X90

2-PIECE BOOM

2шт.

51

X840-515151

TEE-R/TYPE,SWIVEL,ORFS

2-PIECE BOOM

2шт.

52

S621-011001

O-RING

2-PIECE BOOM

2шт.

55

@

PEDAL-SINGLE

NOT

1шт.

56

X500-110001

CONNECTOR-ORFS

2-WAY, 2-PIECE

1шт.

57

31N6-25060

FILTER-LAST GUARD

2-WAY, 2-PIECE

1шт.

58

X520-110001

ELBOW-90,ORFS

2-WAY, 2-PIECE

1шт.

59

31N6-25110

ELBOW-90,ORFS,LONG

2-WAY, 2-PIECE

1шт.

60

S621-011001

O-RING

2-WAY, 2-PIECE

4шт.

61

S631-011004

O-RING

2-WAY, 2-PIECE

4шт.

62

S037-103026

BOLT-W/WASHER

2-WAY, 2-PIECE

2шт.

85

31N6-39130

CONNECTOR-TEST

#0834 - #1953

1шт.

85

31N6-39130

CONNECTOR-TEST

#1954

2шт.
