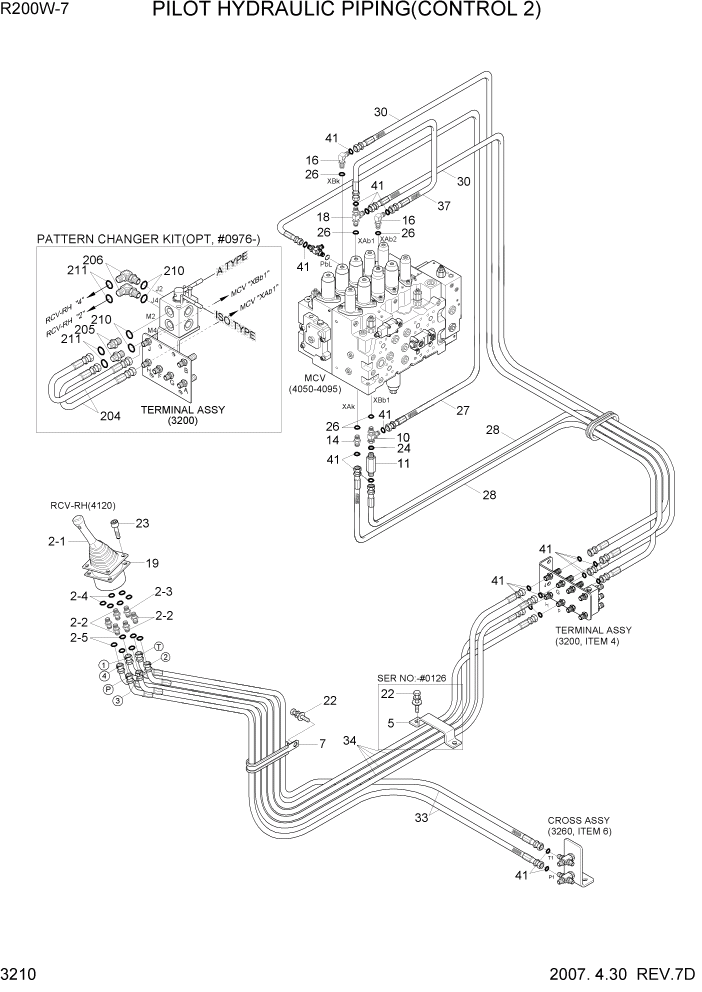

Запчасти Hyundai R200W7 PAGE 3210 PILOT HYD PIPING(CONTROL 2) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

2

31N6-20210

RCV SUB ASSY-RH

WITH FITTING #0126

1шт.

2

31N6-25210

RCV SUB ASSY-RH

WITH FITTING #0127

1шт.

2-1

@

RCV LEVER

NOT

1шт.

2-2

P010-110002

CONNECTOR

#0126

5шт.

2-2

X500-110001

CONNECTOR-ORFS

#0127

5шт.

2-3

31EK-20100

FILTER-LAST GUARD

#0126

1шт.

2-3

31N6-25060

FILTER-LAST GUARD

#0127

1шт.

2-4

S631-011004

O-RING

6шт.

2-5

S621-011001

O-RING

#0127

6шт.

5

31E9-10410

CLAMP-HOSE

#0126

1шт.

7

31E7-0312

CLAMP-HOSE

1шт.

10

31N6-22030

TEE-SWIVEL NUT

#0126

1шт.

10

X840-525151

TEE-R/TYPE,SWIVEL,ORFS

#0127

1шт.

11

31N6-22100

VALVE-SHOCKLESS

#0126

1шт.

11

31N6-22360

VALVE-SHOCKLESS

#0127

1шт.

14

P010-110013

CONNECTOR

#0126

1шт.

14

X500-110013

CONNECTOR-ORFS

#0127

1шт.

16

P020-110012

ELBOW-90

#0126

2шт.

16

X520-110012

ELBOW-90,ORFS

#0127

2шт.

18

P320-060404

TEE-RUN TYPE

#0126

1шт.

18

X820-065151

TEE-R/TYPE,ORFS

#0127

1шт.

19

31M6-51061

SHIM(3.2T)

1шт.

22

S037-102522

BOLT-W/WASHER

#0126

2шт.

22

S037-102526

BOLT-W/WASHER

#0127

1шт.

23

Z175-063036

SCREW-W/WASHER

#0126

4шт.

23

S035-063046

BOLT-W/WASHER

#0127

4шт.

24

S621-012001

O-RING(SEAL LOCK TYPE)

#0127

1шт.

26

S631-014004

O-RING

5шт.

27

P400-042014

HOSE ASSY-COMPACT

#0126

1шт.

27

X400-042014

HOSE ASSY-SYNFLEX,ORFS

#0127

1шт.

28

P400-042024

HOSE ASSY-COMPACT

#0126

2шт.

28

X400-042024

HOSE ASSY-SYNFLEX,ORFS

#0127

2шт.

30

P400-042034

HOSE ASSY-COMPACT

#0126

2шт.

30

X400-042034

HOSE ASSY-SYNFLEX,ORFS

#0127

2шт.

33

P850-042028

HOSE ASSY-SYN 0X45

#0126

2шт.

33

X410-042028

HOSE ASSY-ORFS 0X45

#0127

2шт.

34

P850-042036

HOSE ASSY-SYN 0X45

#0126

4шт.

34

X410-042036

HOSE ASSY-ORFS 0X45

#0127

4шт.

37

P420-042010

HOSE ASSY-COMP 0X90

#0126

1шт.

37

X420-042010

HOSE ASSY-ORFS 0X90

#0127

1шт.

41

S621-011001

O-RING

#0127

18шт.

200

@

PATTERN CHANGER KIT

NOT #0976

1шт.

204

P910-042008

HOSE ASSY-ORFS 0X0

OPT, PATT VALVE #0976

2шт.

205

X500-110001

CONNECTOR-ORFS

OPT, PATT VALVE #0976

2шт.

206

X520-110001

ELBOW-90,ORFS

OPT, PATT VALVE #0976

2шт.

210

S631-011004

O-RING

OPT, PATT VALVE #0976

4шт.

211

S621-011001

O-RING

OPT, PATT VALVE #0976

4шт.
