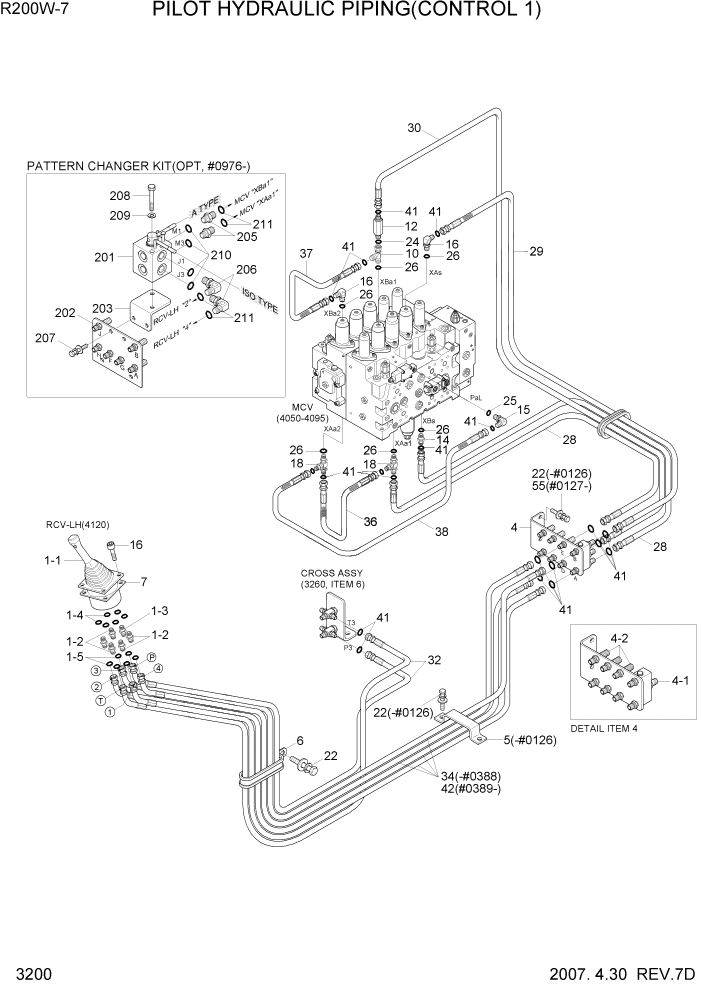

Запчасти Hyundai R200W7 PAGE 3200 PILOT HYD PIPING(CONTROL 1) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31N6-20200

RCV SUB ASSY-LH

WITH FITTING #0126

1шт.

1

31N6-25200

RCV LEVER SUB ASSY-LH

WITH FITTING #0127

1шт.

1-1

@

RCV LEVER

NOT

1шт.

1-2

P010-110002

CONNECTOR

#0126

5шт.

1-2

X500-110001

CONNECTOR-ORFS

#0127

5шт.

1-3

31EK-20100

FILTER-LAST GUARD

#0126

1шт.

1-3

31N6-25060

FILTER-LAST GUARD

#0127

1шт.

1-4

S631-011004

O-RING

6шт.

1-5

S621-011001

O-RING

#0127

6шт.

4

31N6-22011

TERMINAL ASSY

#0126

1шт.

4

31N6-25010

TERMINAL ASSY

#0127

1шт.

4-1

31EK-20310

SHUTTLE-5 PORT

#0126

1шт.

4-1

31N6-25030

SHUTTLE-5 PORT

#0127

1шт.

4-2

31E4-3033

CONNECTOR-2NUT

#0126

6шт.

4-2

X540-120001

CONNECTOR-ORFS

#0127

6шт.

4-3

S621-011001

O-RING

#0127

12шт.

5

31E9-10410

CLAMP-HOSE

#0126

1шт.

6

31E7-0309

CLAMP-HOSE

1шт.

10

31N6-22030

TEE-SWIVEL NUT

#0126

1шт.

10

X840-525151

TEE-R/TYPE,SWIVEL,ORFS

#0127

1шт.

12

31N6-22120

VALVE-SHOCKLESS

#0126

1шт.

12

31N6-22350

VALVE-SHOCKLESS

#0127

1шт.

14

P010-110013

CONNECTOR

#0126

1шт.

14

X500-110013

CONNECTOR-ORFS

#0127

1шт.

15

P020-110001

ELBOW-90

#0126

1шт.

15

X520-110001

ELBOW-90,ORFS

#0127

1шт.

16

P020-110012

ELBOW-90

#0126

2шт.

16

X520-110012

ELBOW-90,ORFS

#0127

2шт.

18

P320-060404

TEE-RUN TYPE

#0126

2шт.

18

X820-065151

TEE-R/TYPE,ORFS

#0127

2шт.

19

31M6-51061

SHIM(3.2T)

1шт.

22

S037-102522

BOLT-W/WASHER

#0126

6шт.

22

S037-102526

BOLT-W/WASHER

#0127

1шт.

23

Z175-063036

SCREW-W/WASHER

#0126

4шт.

23

S035-063046

BOLT-W/WASHER

#0127

4шт.

24

S621-012001

O-RING(SEAL LOCK TYPE)

#0127

1шт.

25

S631-011004

O-RING

1шт.

26

S631-014004

O-RING

6шт.

28

P400-042024

HOSE ASSY-COMPACT

#0126

2шт.

28

X400-042024

HOSE ASSY-SYNFLEX,ORFS

#0127

2шт.

29

P400-042030

HOSE ASSY-COMPACT

#0126

1шт.

29

X400-042030

HOSE ASSY-SYNFLEX,ORFS

#0127

1шт.

30

P400-042034

HOSE ASSY-COMPACT

#0126

1шт.

30

X400-042034

HOSE ASSY-SYNFLEX,ORFS

#0127

1шт.

32

P850-042026

HOSE ASSY-SYN 0X45

#0126

2шт.

32

X410-042026

HOSE ASSY-ORFS 0X45

#0127

2шт.

34

P850-042036

HOSE ASSY-SYN 0X45

#0126

4шт.

34

X410-042036

HOSE ASSY-ORFS 0X45

#0127 - #0388

4шт.

36

P420-042006

HOSE ASSY-COMP 0X90

#0126

1шт.

36

X420-042006

HOSE ASSY-ORFS 0X90

#0127

1шт.

37

P420-042010

HOSE ASSY-COMP 0X90

#0126

1шт.

37

X420-042010

HOSE ASSY-ORFS 0X90

#0127

1шт.

38

P420-042016

HOSE ASSY-COMP 0X90

#0126

1шт.

38

X420-042016

HOSE ASSY-ORFS 0X90

#0127

1шт.

41

S621-011001

O-RING

#0127

20шт.

42

X410-042038

HOSE ASSY-ORFS 0X45

#0389

4шт.

55

S037-102026

BOLT-W/WASHER

#0127

2шт.

200

31N6-26100

PATTERN CHANGER KIT

OPT, PATT VALVE #0976

1шт.

201

31N6-22050

SELECTOR VALVE

OPT, PATT VALVE #0976

1шт.

202

31N6-26110

TERMINAL ASSY

OPT, PATT VALVE #0976

1шт.

203

31N9-22120

BRACKET-WA

OPT, PATT VALVE #0976

1шт.

205

X500-110001

CONNECTOR-ORFS

OPT, PATT VALVE #0976

2шт.

206

X520-110001

ELBOW-90,ORFS

OPT, PATT VALVE #0976

2шт.

207

S037-102526

BOLT-W/WASHER

OPT, PATT VALVE #0976

2шт.

208

S015-080806

BOLT-HEX

OPT, PATT VALVE #0976

2шт.

209

S411-080006

WASHER-SPRING

OPT, PATT VALVE #0976

2шт.

210

S631-011004

O-RING

OPT, PATT VALVE #0976

4шт.

211

S621-011001

O-RING

OPT, PATT VALVE #0976

4шт.
