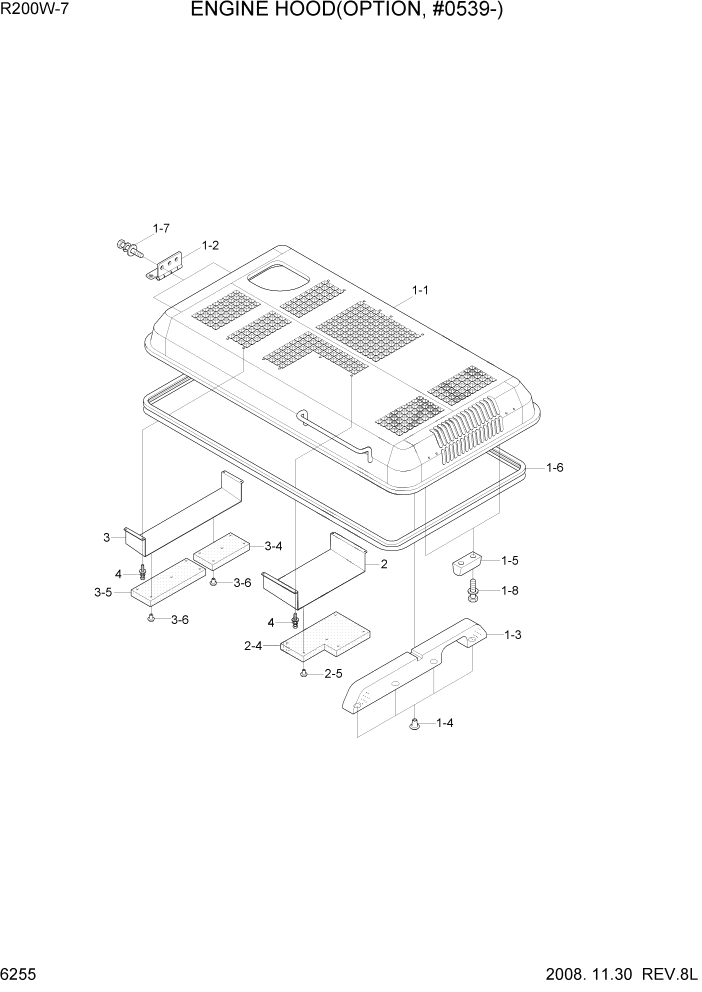

Запчасти Hyundai R200W7 PAGE 6255 ENGINE HOOD(OPTION, #0539-) СТРУКТУРА

*

74N6-51500

ENGINE HOOD ASSY

LOW NOISE #0539 - #1300

1шт.

*

74N6-51500BG

ENGINE HOOD ASSY

#1301

1шт.

1

74N6-51000

ENGINE HOOD ASSY

#1300

1шт.

1

74N6-51000BG

ENGINE HOOD ASSY

#1301

1шт.

1-1

74N6-51010

ENGINE HOOD WA

1шт.

1-2

71N6-51101

HINGE-ENG HOOD

#1300

2шт.

1-2

71N6-51101BG

HINGE-ENG HOOD

#1301

2шт.

1-3

74N6-51200

SPONGE

1шт.

1-4

71EM-51580

CAP-STUD BOLT

4шт.

1-5

71N6-51140

STOPPER-A

2шт.

1-6

S771-061500

WEATHER STRIP

1шт.

1-7

S037-123522

BOLT-W/WASHER

6шт.

1-8

S132-063052

SCREW-W/WASHER

4шт.

2

74N6-51510

BAFFLE ASSY(A)-E/HOOD

1шт.

2-4

74N6-51540

SPONGE

1шт.

2-5

71EM-51580

CAP-STUD BOLT

6шт.

3

74N6-51520

BAFFLE ASSY(B)

#1300

2шт.

3

74N6-51520BG

BAFFLE ASSY(B)-E/HOOD

#1301 - #1852

2шт.

3

74N6-51520BG

BAFFLE ASSY(B)-E/HOOD

#1853

1шт.

3-4

74N6-51550

SPONGE

1шт.

3-5

74N6-51560

SPONGE

1шт.

3-6

71EM-51580

CAP-STUD BOLT

8шт.

4

S035-08252V

BOLT-W/WASHER

#1852

12шт.

4

S035-082526

BOLT-W/WASHER

#1853

8шт.
