Запчасти Hyundai R170W7A PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

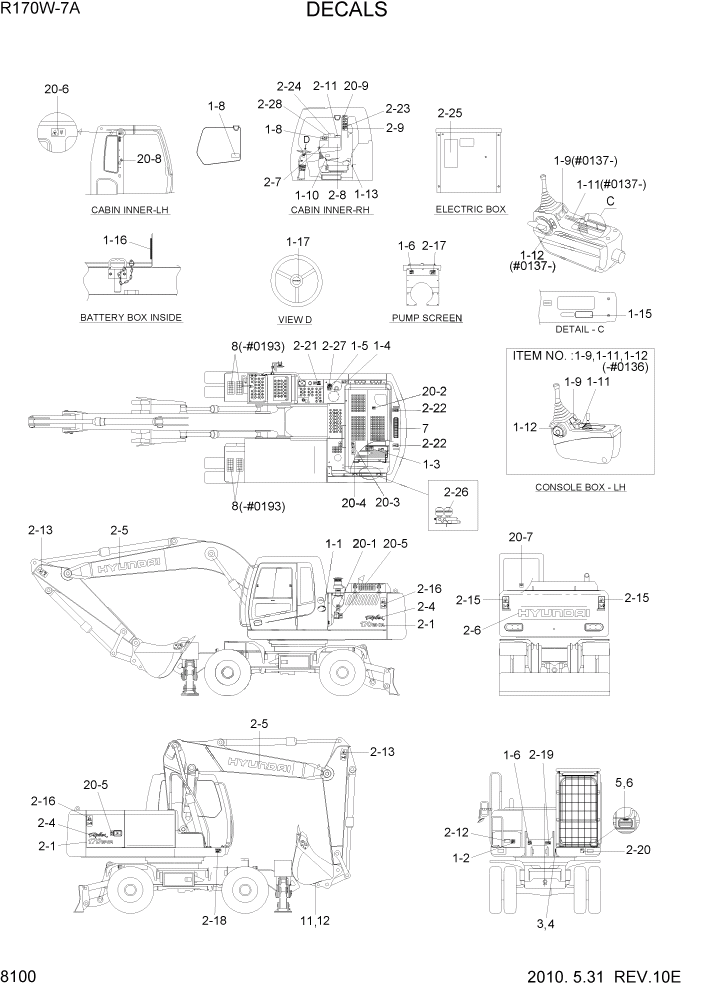

Схема запчастей Hyundai R170W7A - PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

Артикул

Название

Примечание

Количество

1

93N8-00030

DECAL KIT(A)

#0135

1шт.

1

94N8-00030

DECAL KIT(A)

#0136 - #0313

1шт.

1

94N8-00031

DECAL KIT(A)

#0314

1шт.

1-1

91E1-27110

DECAL-LOW EMI ENGINE

1шт.

1-2

91N6-02120

DECAL-BATT ACCIDENT

1шт.

1-3

91N6-01121

DECAL-RADIATOR CAP

1шт.

1-4

91N6-03140

DECAL-FALLING

1шт.

1-5

91N6-03111

DECAL-OIL LUBRICATION

1шт.

1-6

91N6-03130

DECAL-HIGH PRESS HOSE

2шт.

1-8

92N6-07200

DECAL-CNTL IDEOGRAM

ISO

1шт.

1-8

92N6-08200

DECAL-CNTL IDEOGRAM

SOUTH ASIA

1шт.

1-8

92N6-07500

DECAL-CNTL IDEOGRAM

ISO, ADJUST BM

1шт.

1-8

92N6-08500

DECAL-CNTL IDEOGRAM

S/ASIA, ADJUST

1шт.

1-9

91N6-07212

DECAL-CNTL IDEOGRAM,LH

ISO #0135

1шт.

1-9

92N6-07210

CONTROL IDEOGRAM-LH

#0136

1шт.

1-9

91N6-08210

DECAL-CNTL IDEOGRAM,LH

SOUTH ASIA #0135

1шт.

1-9

92N6-08210

CONTROL IDEOGRAM

#0136

1шт.

1-1

91N6-07221

DECAL-CNTL IDEOGRAM,RH

#0135

1шт.

1-1

92N6-07220

CONTROL IDEOGRAM-RH

#0136

1шт.

1-11

91N6-07301

CONSOLE BOX TILTING

#0135

1шт.

1-11

92N6-07300

CONSOLE BOX TILTING

#0136 - #0313

1шт.

1-11

92N6-07510

CONSOLE BOX TILTING

#0314

1шт.

1-12

91N6-07311

DECAL-SAFETY LEVER

#0135

1шт.

1-12

92N6-07310

DECAL-SAFETY LEVER

#0136

1шт.

1-13

91N6-07272

DECAL-AIRCON FILTER

1шт.

1-15

91N6-07340

IDEOGRAM

1шт.

1-15

92N6-07360

IDEOGRAM

1шт.

1-15

92N6-07430

IDEOGRAM

#0135

1шт.

1-15

92N6-07431

IDEOGRAM

#0136

1шт.

1-16

92N6-07410

DECAL-SWING IDEOGRAM

1шт.

1-17

92N6-07420

DECAL-STEERING WHEEL

1шт.

2

93N5-01300

DECAL KIT(B)

#0193

1шт.

2

93N5-01301

DECAL KIT(B)

#0194 - #0313

1шт.

2

93N5-01302

DECAL KIT(B)

#0314 - #0323

1шт.

2

93N5-01303

DECAL KIT(B)

#0324 - #0329

1шт.

2

93N5-01302

DECAL KIT(B)

#0314

1шт.

2

93N5-01304

DECAL KIT(B)

#0330

1шт.

2-1

93N5-10211

DECAL-MODEL NAME

2шт.

2-4

91N6-17140

ROBEX LOGO

2шт.

2-5

91N6-23100

DECAL-HYUNDAI LOGO

2шт.

2-6

91N6-23140

DECAL-HYUNDAI LOGO

1шт.

2-7

93N5-04100

LIFTING CHART

1шт.

2-8

93N5-10720

SERVICE INSTRUCTION

#0313

1шт.

2-8

93N5-10721

SERVICE INSTRUCTION

#0314 - #0323

1шт.

2-8

93N5-10722

SERVICE INSTRUCTION

#0324

1шт.

2-9

91N6-07330

DECAL-LOCKING CLAMP

1шт.

2-11

91N6-07390

DECAL-TURBOCHARGER

1шт.

2-12

91LB-01350

DECAL-ECM CONNECTOR

1шт.

2-13

91N6-06110

DECAL-KEEP CLEAR-ATT

2шт.

2-14

91N6-04170

REFLECTING

2шт.

2-15

91N6-04122

KEEP CLEAR/RR

2шт.

2-16

91N6-07102

DECAL-KEEP CLEAR

2шт.

2-17

92N6-03100

HYD OIL LEVEL

1шт.

2-18

92N6-07140

TRANSPORTING

1шт.

2-19

91N6-03121

DECAL-RED GEAR GREASE

1шт.

2-2

91N6-22110

DECAL-NOISE LWA/101DB

EUROPE

1шт.

2-21

91M8-01140

DECAL-FUELING

1шт.

2-22

91N6-04140

DECAL-LIFTING EYE

2шт.

2-23

92N6-07350

SWING LOCK

1шт.

2-24

91N6-07400

DECAL-M/CONTROL,CAB

OPT,PATTERN VLV

1шт.

2-25

91N6-07410

DECAL-MACHINE CNTL

OPT,PATTERN VLV

1шт.

2-26

91N6-03200

DECAL-ACCUMULATOR

#0194 - #0313

4шт.

2-26

91N6-03200

DECAL-ACCUMULATOR

#0314

5шт.

2-27

91Q6-03230

DECAL-FUEL SHUT OFF

#0330

1шт.

2-28

91Q4-07180

DECAL-WATER SEPARATOR

#0330

1шт.

3

91E1-14110

NAME PLATE

STD #0329

1шт.

3

91LM-14110

DECAL-PIN PLATE

STD #0330

1шт.

3

91E1-14130

NAME PLATE

EUROPE #0329

1шт.

3

91LM-14130

DECAL-PIN PLATE

EUROPE #0330

1шт.

4

91EK-12010

RIVET

4шт.

5

91N6-01280

FOPS FOG PLATE

FOG TYPE

1шт.

6

91EK-12010

RIVET

FOG TYPE

4шт.

7

91N6-27510

DECAL-SAFETY

1шт.

8

91E1-26300

DECAL-STEP TREAD

#0193

8шт.

11

91N6-06410

NAME PLATE-BUCKET

1шт.

12

91N6-06420

METAL TACK

4шт.

20

93N4-00090

DECAL KIT-A/S

1шт.

20-1

91N6-01102

DECAL-A/CLEANER FILTER

1шт.

20-2

91N6-01111

DECAL-TURBO COVER

1шт.

20-3

91N6-07121

DECAL-SHEARING

1шт.

20-4

91N6-07131

DECAL-NO STEP

1шт.

20-5

91N6-07112

DECAL-STAY FIX

2шт.

20-6

91N6-07252

DECAL-SAFETY FR WINDOW

1шт.

20-7

91N6-07261

DECAL-ALTERNATE EXIT

1шт.

20-8

91N6-07280

DECAL-HAMMER

1шт.

20-9

91N6-07370

DECAL-CABIN RH PILLAR

1шт.

Выбрано товаров: 86
