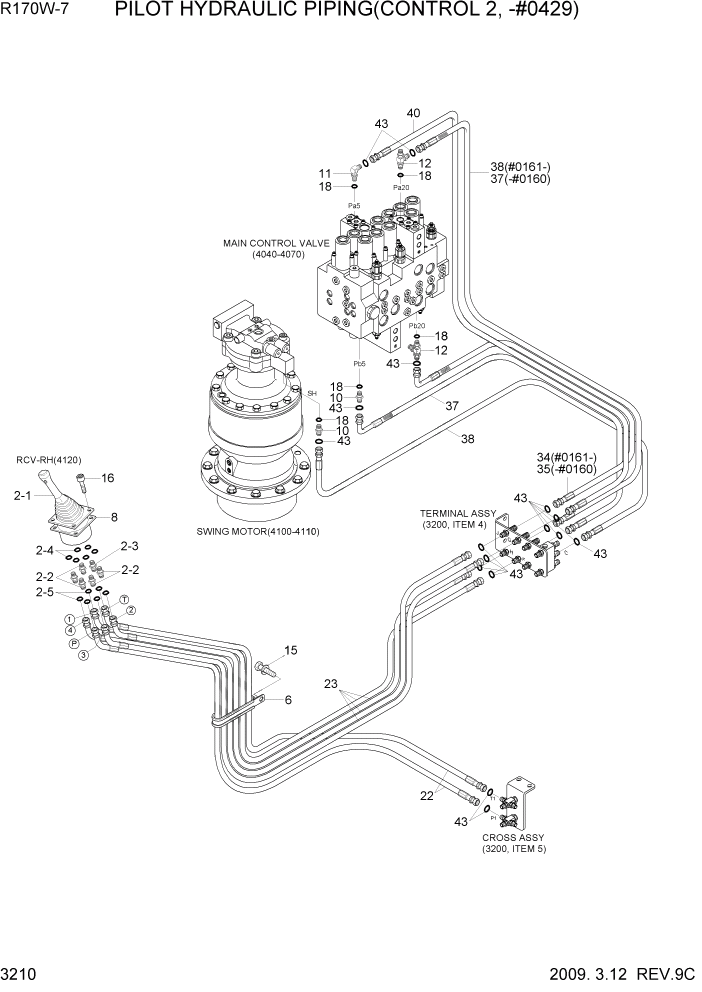

Запчасти Hyundai R170W7 PAGE 3210 PILOT HYD PIPING(CONTROL 2, -#0429) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

PILOT HYD PIPING

NOT #0429

1шт.

2

31N6-20210

RCV SUB ASSY-RH

WITH FITTING #0071

1шт.

2

31N6-25210

RCV SUB ASSY-RH

WITH FITTING #0072

1шт.

2-1

@

RCV LEVER

NOT

1шт.

2-2

P010-110002

CONNECTOR

#0071

5шт.

2-2

X500-110001

CONNECTOR-ORFS

#0072

5шт.

2-3

31EK-20100

FILTER-LAST GUARD

#0071

1шт.

2-3

31N6-25060

FILTER-LAST GUARD

#0072

1шт.

2-4

S631-011004

O-RING

6шт.

2-5

S621-011001

O-RING

#0072

6шт.

6

31E7-0312

CLAMP-HOSE

1шт.

7

31M6-51061

SHIM(3.2T)

1шт.

10

P010-110002

CONNECTOR

#0071

2шт.

10

X500-110001

CONNECTOR-ORFS

#0072

2шт.

11

P020-110001

ELBOW-90

STD #0071

1шт.

11

X520-110001

ELBOW-90,ORFS

STD #0072

1шт.

11

X520-110001

ELBOW-90,ORFS

OPT, PATT VLV #0797

1шт.

12

P320-040404

TEE-RUN TYPE

#0071

2шт.

12

X820-045151

TEE-R/TYPE,ORFS

#0072

2шт.

15

S037-102042

BOLT-W/WASHER

1шт.

16

S175-060256

SCREW-SOCKET RD HD

4шт.

18

S631-011004

O-RING

5шт.

22

P850-042028

HOSE ASSY-SYN 0X45

#0071

2шт.

22

X410-042028

HOSE ASSY-ORFS 0X45

#0072

2шт.

23

P850-042035

HOSE ASSY-SYN 0X45

#0071

4шт.

23

X410-042035

HOSE ASSY-ORFS 0X45

#0072

4шт.

34

X400-042019

HOSE ASSY-SYNFLEX,ORFS

#0161

4шт.

35

P840-042021

HOSE ASSY-SYN THD

#0071

1шт.

35

X400-042021

HOSE ASSY-SYNFLEX,ORFS

#0072 - #0160

1шт.

37

P840-042030

HOSE ASSY-SYN THD

#0071

2шт.

37

X400-042030

HOSE ASSY-SYNFLEX,ORFS

#0072 - #0160

2шт.

37

X400-042024

HOSE ASSY-ORFS

#0161

1шт.

38

P840-042026

HOSE ASSY-SYN THD

#0071

1шт.

38

X400-042026

HOSE ASSY-ORFS 0X0

#0072 - #0160

1шт.

38

X400-042026

HOSE ASSY-ORFS 0X0

#0161

2шт.

40

P840-042031

HOSE ASSY-SYN THD

#0071

1шт.

40

X400-042031

HOSE ASSY-SYNFLEX,ORFS

#0072 - #0160

1шт.

40

X400-042029

HOSE ASSY-SYNFLEX,ORFS

#0161

1шт.

43

S621-011001

O-RING

#0072

16шт.
