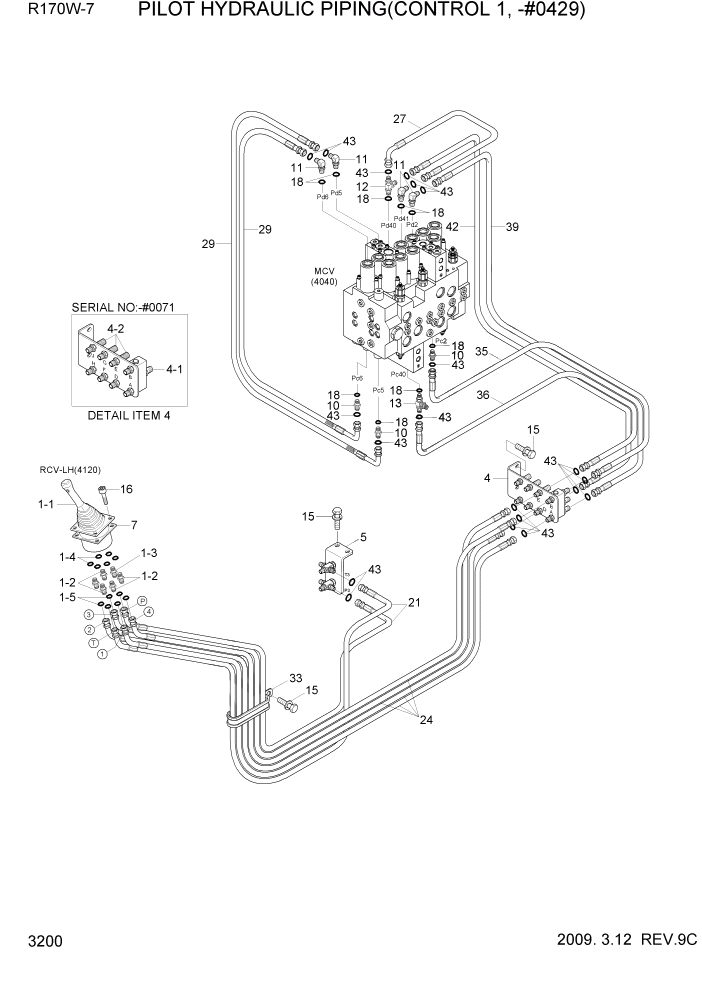

Запчасти Hyundai R170W7 PAGE 3200 PILOT HYD PIPING(CONTROL 1, -#0429) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

PILOT HYD PIPING

NOT #0429

1шт.

1

31N6-20200

RCV SUB ASSY-LH

WITH FITTING #0071

1шт.

1

31N6-25200

RCV SUB ASSY-LH

WITH FITTING #0072

1шт.

1-1

@

RCV LEVER

NOT

1шт.

1-2

P010-110002

CONNECTOR

#0071

5шт.

1-2

X500-110001

CONNECTOR-ORFS

#0072

5шт.

1-3

31EK-20100

FILTER-LAST GUARD

#0071

1шт.

1-3

31N6-25060

FILTER-LAST GUARD

#0072

1шт.

1-4

S631-011004

O-RING

6шт.

1-5

S621-011001

O-RING

#0072

6шт.

4

31N6-22011

TERMINAL ASSY

STD #0071

1шт.

4

31N6-25010

TERMINAL ASSY

STD #0072

1шт.

4-1

31EK-20310

SHUTTLE-5 PORT

#0071

1шт.

4-1

31N6-25030

SHUTTLE-5 PORT

#0072

1шт.

4-2

31E4-3033

CONNECTOR-2NUT

#0071

6шт.

4-2

X540-120001

CONNECTOR-ORFS

#0072

6шт.

4-3

S621-011001

O-RING

#0072

12шт.

5

31N4-22021

CROSS ASSY

#0071

1шт.

5

31N6-25100

CROSS ASSY

#0072

1шт.

7

31M6-51061

SHIM(3.2T)

1шт.

10

P010-110002

CONNECTOR

#0071

3шт.

10

X500-110001

CONNECTOR-ORFS

#0072

3шт.

11

P020-110001

ELBOW-90

STD #0071

4шт.

11

X520-110001

ELBOW-90,ORFS

STD #0072

4шт.

11

X520-110001

ELBOW-90,ORFS

OPT, PATT VLV #0797

8шт.

12

P320-040404

TEE-RUN TYPE

#0071

1шт.

12

X820-045151

TEE-R/TYPE,ORFS

#0072

1шт.

13

31E6-0219

TEE-LONG

#0071

1шт.

13

31N4-22150

TEE-LONG,ORFS

#0072

1шт.

15

S037-102042

BOLT-W/WASHER

5шт.

16

S175-060256

SCREW-SOCKET RD HD

4шт.

18

S631-011004

O-RING

9шт.

21

P850-042024

HOSE ASSY-SYN 0X45

#0071

2шт.

21

X410-042024

HOSE ASSY-ORFS 0X45

#0072

2шт.

24

P850-042040

HOSE ASSY-SYN 0X45

#0071

4шт.

24

X410-042040

HOSE ASSY-ORFS 0X45

#0072

4шт.

27

P860-042010

HOSE ASSY-SYN 0X90

#0071

1шт.

27

X420-042010

HOSE ASSY-ORFS 0X90

#0072

1шт.

29

P840-042020

HOSE ASSY-SYN THD

#0071

2шт.

29

X400-042020

HOSE ASSY-SYNFLEX,ORFS

#0072

2шт.

33

31E7-0309

CLAMP-HOSE

1шт.

35

P840-042021

HOSE ASSY-SYN THD

#0071

1шт.

35

X400-042021

HOSE ASSY-SYNFLEX,ORFS

#0072 - #0160

1шт.

36

P840-042022

HOSE ASSY-SYN THD

#0071

1шт.

36

X400-042022

HOSE ASSY-SYNFLEX,ORFS

#0072

1шт.

39

P840-042032

HOSE ASSY-SYN THD

#0071

1шт.

39

X400-042032

HOSE ASSY-SYNFLEX,ORFS

#0072

1шт.

42

P840-042033

HOSE ASSY-SYN THD

#0071

1шт.

42

X400-042033

HOSE ASSY-ORFS 0X0

#0072

1шт.

43

S621-011001

O-RING

#0072

20шт.

100

31N4-20140

TERMINAL ASSY

OPT, PATT VLV #0797

1шт.

101

31N6-22050

SELECTOR VV-MULTIMODE

OPT, PATT VLV #0797

1шт.

102

S015-080806

BOLT-HEX

OPT, PATT VLV #0797

2шт.

103

S411-080006

WASHER-SPRING

OPT, PATT VLV #0797

2шт.
