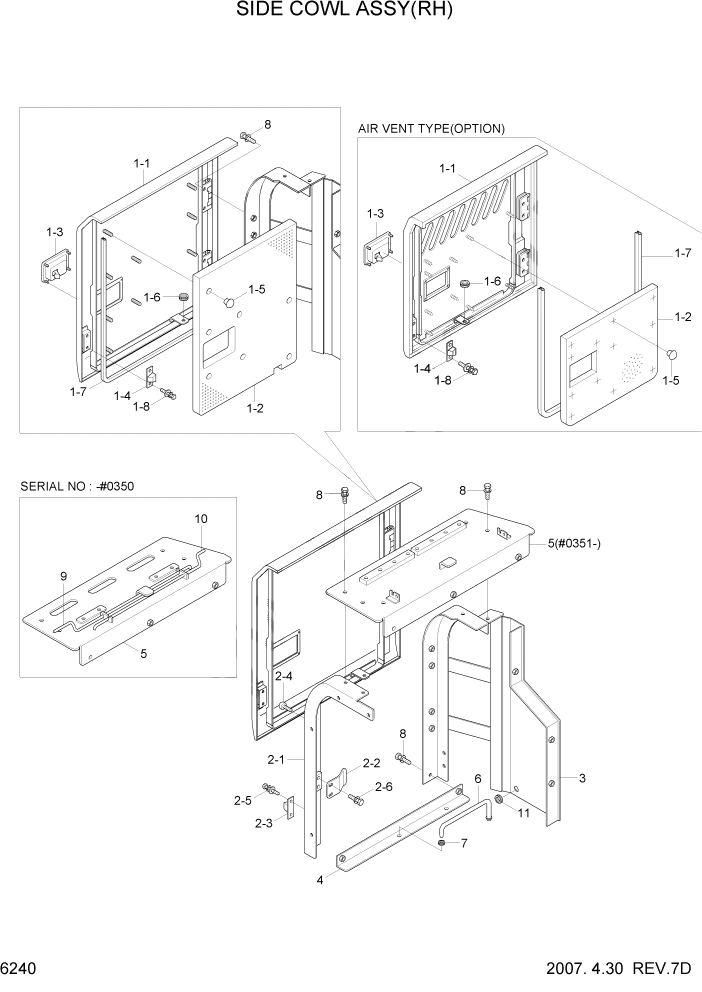

Запчасти Hyundai R140W7 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

72N4-53000

SIDE COWL ASSY-RH

STD #0350

1шт.

*

72N4-53001

SIDE COWL ASSY-RH

STD #0351 - #0381

1шт.

*

72N4-53001Y

SIDE COWL ASSY-RH

STD #0382

1шт.

*

72N4-83000

SIDE COWL ASSY-RH

AIR VENT TYPE #0350

1шт.

*

72N4-83001

SIDE COWL ASSY-RH

AIR VENT TYPE #0351 - #0381

1шт.

*

72N4-83001Y

SIDE COWL ASSY-RH

AIR VENT TYPE #0382

1шт.

*

72N4-58000

SIDE COWL ASSY-RH

PRE HEATING #0525

1шт.

1

71N4-53102

SIDE COVER ASSY-RH

STD #0381

1шт.

1

71N4-53102Y

SIDE COVER ASSY-RH

STD #0382

1шт.

1

71N4-73100

SIDE COVER ASSY-RH

AIR VENT TYPE #0381

1шт.

1

71N4-73100Y

SIDE COVER ASSY-RH

AIR VENT TYPE #0382

1шт.

1-1

71N4-53112

SIDE COVER WA

STD

1шт.

1-1

71N4-73110

SIDE COVER WA

AIR VENT TYPE

1шт.

1-2

71N4-53132

SPONGE-SIDE COVER

STD

1шт.

1-2

71N4-73130

SPONGE-SIDE COVER

AIR VENT TYPE

1шт.

1-3

71EE-52520

CATCH ASSY

BLACK #0381

1шт.

1-3

74N8-52520

CATCH ASSY

YELLOW #0382

1шт.

1-4

71EE-53530

STOPPER-A

#0001

1шт.

1-5

71EM-51580

CAP-STUD BOLT

9шт.

1-6

S681-100400

GROMMET

1шт.

1-7

S772-022630

WEATHER STRIP

1шт.

1-8

S035-061522

BOLT-W/WASHER

2шт.

2

71N4-53281

SUPPORT ASSY-RH(FR)

1шт.

2-1

71N4-53271

SUPPOTR WA-RH(FR)

1шт.

2-2

71N8-52492

PLATE-LOCK

1шт.

2-3

71EE-53540

STOPPER-B

1шт.

2-4

71EH-13150

BUMPER-RUBBER

1шт.

2-5

S035-062022

BOLT-W/WASHER

2шт.

2-6

S037-122052

BOLT-W/WASHER

2шт.

3

72N4-53201

SUPPORT WA-RH(RR)

STD, AIR VENT

1шт.

3

72N4-58200

SUPPORT WA-RH(RR)

PRE HEATING #0525

1шт.

4

71N4-53302

SUPPORT-BOTTOM

1шт.

5

72N4-53400

HOOD WA-PUMP

#0350

1шт.

5

72N4-53401

HOOD WA-PUMP

#0351

1шт.

6

71N8-52950

STAY-SIDE COVER

1шт.

7

S681-100400

GROMMET

1шт.

8

S037-122552

BOLT-W/WASHER

10шт.
