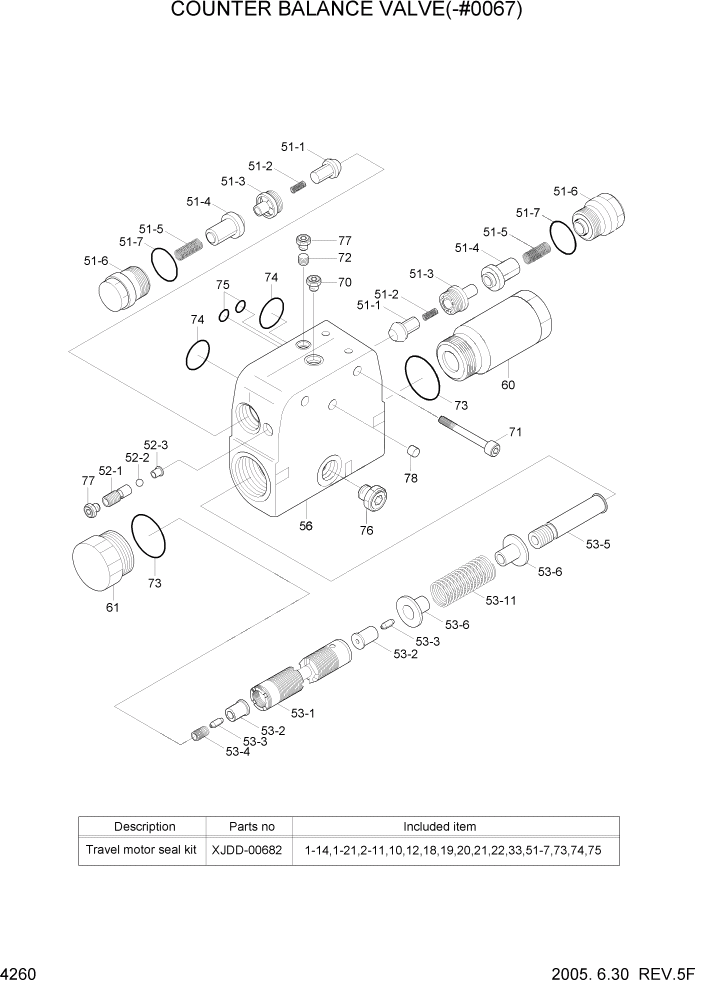

Запчасти Hyundai R55W7 PAGE 4260 COUNTER BALANCE VALVE(-#0067) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*-2

ZGAR-00474

COUNTER BALANCE VLV

#0067

1шт.

51

ZGAR-00534

VALVE

2шт.

51-1

ZGAR-00240

POPPET-VALVE

1шт.

51-2

ZGAR-00241

SPRING-PRESSURE

1шт.

51-3

ZGAR-00242

SEAT-POPPET

1шт.

51-4

ZGAR-00537

POPPET-VALVE

1шт.

51-5

ZGAR-00244

SPRING-PRESSURE

1шт.

51-6

ZGAR-00245

SCREW-LOCKING

1шт.

K51-7

XJDD-00316

O-RING

1шт.

52

ZGAR-00228

VALVE-SHUTTLE

1шт.

52-1

ZGAR-00099

SCREW-VALVE

1шт.

52-2

ZGAR-00109

BALL

1шт.

52-3

ZGAR-00100

BUSHING

1шт.

53

ZGAR-00535

PISTON ASSY

1шт.

53-1

ZGAR-00247

PISTON-BRAKE

1шт.

53-2

ZGAR-00539

BUSHING-VALVE

2шт.

53-3

ZGAR-00540

PIN-THROTTLE

2шт.

53-4

ZGAR-00250

SCREW-VALVE

1шт.

53-5

ZGAR-00251

BOLT

1шт.

53-6

ZGAR-00252

COLLAR-SPRING

2шт.

53-11

ZGAR-00253

SPRING

1шт.

56

ZGAR-00536

HOUSING

1шт.

60

ZGAR-00231

SCREW-LOCKING

1шт.

61

ZGAR-00232

SCREW-LOCKING

1шт.

70

ZGAR-00233

SCREW-LOCKING

1шт.

71

ZGAR-00234

SCREW-SOCKET

2шт.

72

ZGAR-00235

PLUG

1шт.

K73

XJDD-00306

O-RING

2шт.

K74

XJDD-00284

O-RING

2шт.

K75

XJDD-00307

O-RING

2шт.

76

ZGAR-00238

SCREW-LOCKING

1шт.

77

ZGAR-00239

SCREW-LOCKING

4шт.

78

ZGAR-00207

PIN-D/BREAK OFF

1шт.

K

XJDD-00682

SEAL KIT

SEE ILLUST

1шт.
