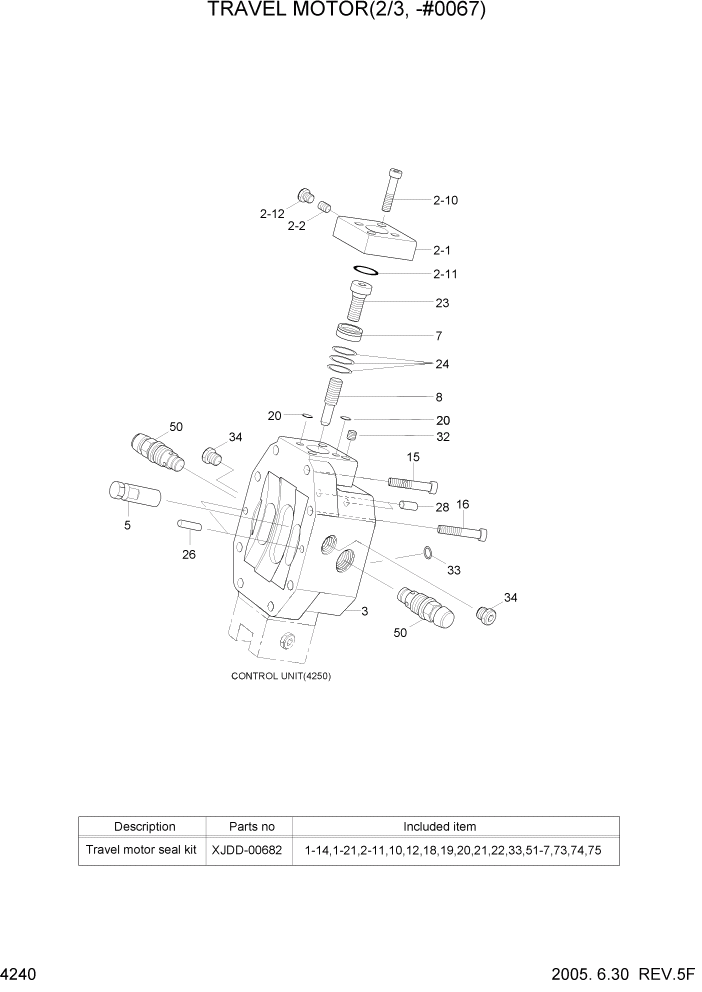

Запчасти Hyundai R55W7 PAGE 4240 TRAVEL MOTOR(2/3, -#0067) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*-1

ZGAR-00476

CONTROL

#0067

1шт.

2

ZGAR-00511

COVER

1шт.

2-1

ZGAR-00530

COVER

1шт.

2-2

ZGAR-00531

SCREW-THROTTLE

1шт.

2-1

ZGAR-00532

SCREW-SOCKET HEAD

4шт.

K2-11

XJDD-00284

O-RING

1шт.

2-12

ZGAR-00104

SCREW-LOCKING

1шт.

3

ZGAR-00512

PLATE-PORT

1шт.

5

ZGAR-00514

TRUNNION-POSITIONING

1шт.

7

ZGAR-00515

PISTON

1шт.

8

ZGAR-00516

PIN-THREADED

1шт.

15

ZGAR-00517

SCREW-SOCKET HEAD

4шт.

16

ZGAR-00518

SCREW-SOCKET HEAD

4шт.

K20

XJDD-00258

O-RING

3шт.

23

ZGAR-00190

SCREW-SOCKET HEAD

1шт.

24

ZGAR-00519

RING-SQUARE

3шт.

26

ZGAR-00192

PIN-CYLINDER

2шт.

28

ZGAR-00108

PIN-D/BREAK OFF

1шт.

32

ZGAR-00111

PIN-D/BREAK OFF

1шт.

K33

XJDD-00287

O-RING

1шт.

34

ZGAR-00140

SCREW-LOCKING

2шт.

50

ZGAR-00521

VALVE-RELIEF

2шт.

K

XJDD-00682

SEAL KIT

SEE ILLUST

1шт.
