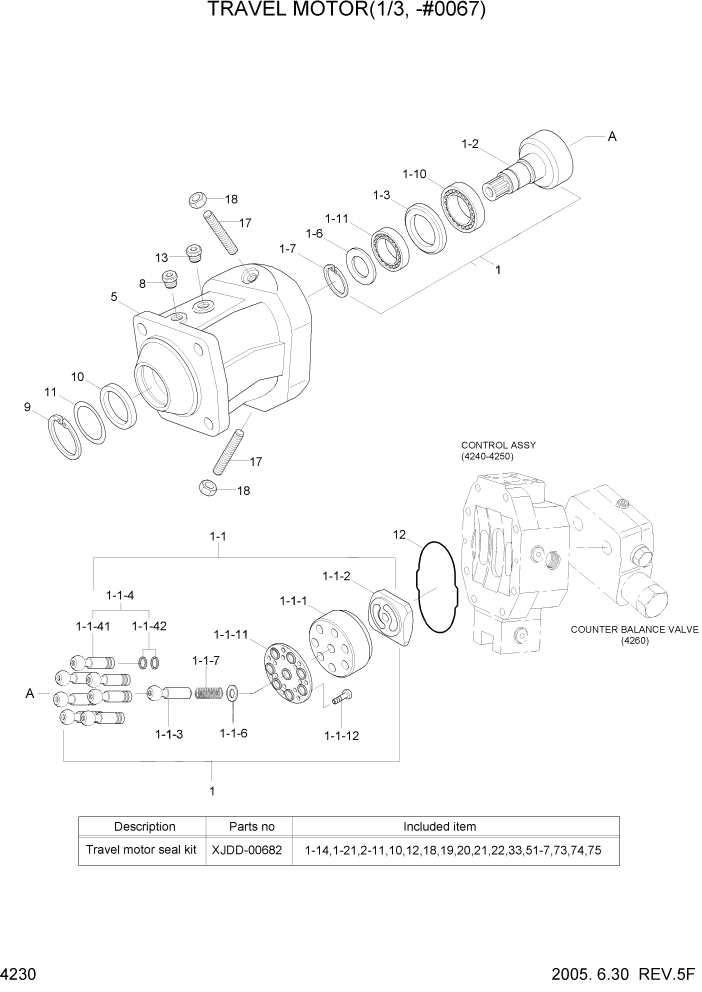

Запчасти Hyundai R55W7 PAGE 4230 TRAVEL MOTOR(1/3, -#0067) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31M5-00031

TRAVEL MOTOR

#0067

1шт.

1

ZGAR-00475

ROTARY GROUP

1шт.

1-1

ZGAR-00482

ROTARY GROUP

1шт.

1-1-1

ZGAR-00496

CYLINDER

1шт.

1-1-2

ZGAR-00497

CONTROL LENS

1шт.

1-1-3

ZGAR-00498

PIN-CENTER

1шт.

1-1-4

ZGAR-00499

PISTON

7шт.

1-1-41

ZGAR-00508

PISTON

1шт.

1-1-42

ZGAR-00509

RING-S/SEALING

2шт.

1-1-6

ZGAR-00500

SHIM(3.5T)-ADJUSTMENT

1шт.

1-1-6

ZGAR-00541

SHIM(3.6T)-ADJUSTMENT

1шт.

1-1-6

ZGAR-00544

SHIM(3.7T)-ADJUSTMENT

1шт.

1-1-6

ZGAR-00545

SHIM(3.8T)-ADJUSTMENT

1шт.

1-1-6

ZGAR-00546

SHIM(3.9T)-ADJUSTMENT

1шт.

1-1-6

ZGAR-00547

SHIM(4.0T)-ADJUSTMENT

1шт.

1-1-7

ZGAR-00506

SPRING-PRESSURE

1шт.

1-1-11

ZGAR-00507

PLATE-RETAINING

1шт.

1-1-12

ZGAR-00172

SCREW-PAN HEAD

1шт.

1-2

ZGAR-00483

SHAFT-DRIVE

14шт.

1-3

ZGAR-00484

SHIM

1шт.

1-6

ZGAR-00488

PLATE-BACK UP

1шт.

1-6

ZGAR-00490

PLATE-BACK UP

1шт.

1-6

ZGAR-00491

PLATE-BACK UP

1шт.

1-6

ZGAR-00492

PLATE-BACK UP

1шт.

1-6

ZGAR-00489

PLATE-BACK UP

1шт.

1-6

ZGAR-00487

PLATE-BACK UP

1шт.

1-6

ZGAR-00486

PLATE-BACK UP

1шт.

1-6

ZGAR-00485

PLATE-BACK UP

1шт.

1-7

ZGAR-00493

RING-RETAINING

1шт.

1-1

ZGAR-00494

BEARING-TAPERED ROL

1шт.

1-11

ZGAR-00495

BEARING-TAPERED ROL

1шт.

5

ZGAR-00477

HOUSING

1шт.

8

ZGAR-00140

SCREW-LOCKING

1шт.

9

ZGAR-00478

RING-RETAINING

1шт.

K10

XJDD-00549

RING-SHAFT SEAL

1шт.

11

ZGAR-00480

PLATE-BACK UP

1шт.

K12

XJDD-00551

O-RING

1шт.

13

ZGAR-00140

SCREW-LOCKING

1шт.

17

ZGAR-00041

PIN-THREADED

2шт.

K18

XJDD-00120

NUT-SEAL LOCK

2шт.

K

XJDD-00682

SEAL KIT

SEE ILLUST

1шт.
