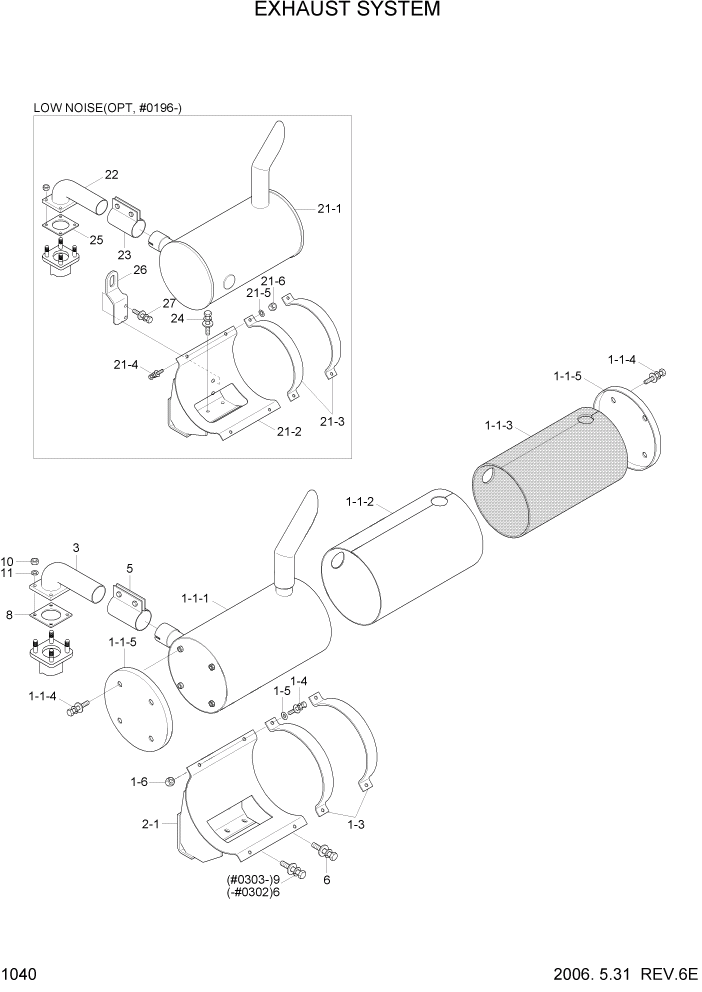

Запчасти Hyundai R55W7 PAGE 1040 EXHAUST SYSTEM СИСТЕМА ДВИГАТЕЛЯ

1

11M8-30100

MUFFLER SUB ASSY

STD

1шт.

1-1

11M8-30051

MUFFLER ASSY

1шт.

1-1-1

11M8-30002

MUFFLER WA

1шт.

1-1-2

11M8-30060

COVER-BODY

1шт.

1-1-3

11M8-30080

INSULATOR-BODY

1шт.

1-1-4

S035-081522

BOLT-W/WASHER

8шт.

1-1-5

11M8-30071

COVER-END

2шт.

1-2

11M8-30011

BRACKET-MUFFLER

1шт.

1-3

11M8-30090

CLAMP-BAND

2шт.

1-4

S035-083022

BOLT-W/WASHER

4шт.

1-5

S441-080002

WASHER-HARDENED

4шт.

1-6

S203-081002

NUT-HEX

4шт.

3

11M8-30020

PIPE WA

1шт.

5

11M8-30040

CLAMP-SEAL

1шт.

6

S035-082022

BOLT-W/WASHER

#0302

6шт.

6

S035-082022

BOLT-W/WASHER

#0303

2шт.

8

11M6-56100

GASKET

1шт.

9

S035-082522

BOLT-W/WASHER

#0303

2шт.

10

S205-081002

NUT-HEX

#0303

4шт.

11

S403-082002

WASHER-PLAIN

#0303

4шт.

21

11M8-32011

MUFFLER SUB ASSY

LOW NOISE #0196 - #0298

1шт.

21

11M8-32060

MUFFLER SUB ASSY

LOW NOISE #0299

1шт.

21-1

11M8-32023

MUFFLER WA

LOW NOISE #0196 - #0298

1шт.

21-1

11M8-32050

MUFFLER WA

LOW NOISE #0299

1шт.

21-2

11M8-32030

BRACKET-MUFFLER

LOW NOISE #0196 - #0298

1шт.

21-2

11M8-32250

BRACKET-MUFFLER

LOW NOISE #0299

1шт.

21-3

11M8-30090

CLAMP-BAND

LOW NOISE #0196 - #0298

2шт.

21-3

11M8-32260

CLAMP-BAND

LOW NOISE #0299

2шт.

21-4

S035-083022

BOLT-W/WASHER

LOW NOISE #0196

4шт.

21-5

S441-080002

WASHER-HARDENED

LOW NOISE #0196

4шт.

21-6

S203-081002

NUT-HEX

LOW NOISE #0196

4шт.

22

11M8-30020

PIPE WA

LOW NOISE #0196

1шт.

23

11M8-30040

CLAMP-SEAL

LOW NOISE #0196

1шт.

24

S035-082022

BOLT-W/WASHER

LOW NOISE #0196

6шт.

25

11M6-56100

GASKET

LOW NOISE #0196

1шт.

26

11M8-02020

BRACKET

LOW NOISE #0299

1шт.

27

S035-082522

BOLT-W/WASHER

LOW NOISE #0299

2шт.
