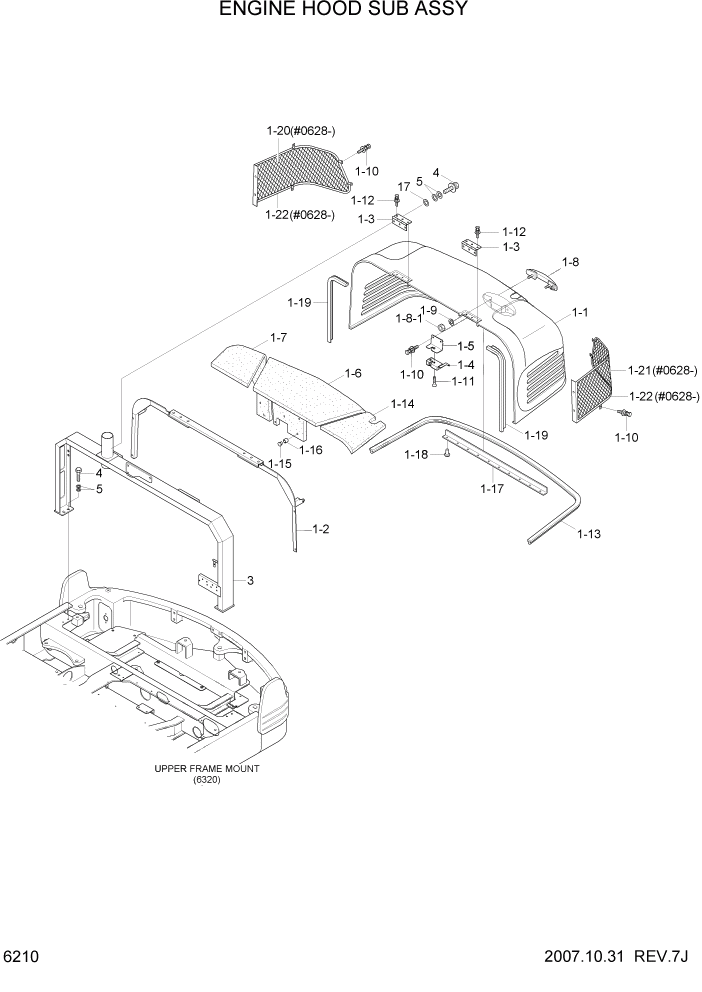

Запчасти Hyundai R55W7 PAGE 6210 ENGINE HOOD SUB ASSY СТРУКТУРА

*

71M8-51001

ENGINE HOOD SUB ASSY

#0590

1шт.

*

71M8-61001

ENGINE HOOD SUB ASSY

#0591 - #0627

1шт.

*

71M8-61002

ENGINE HOOD SUB ASSY

#0628

1шт.

1

71M8-51101

ENGINE HOOD ASSY

#0627

1шт.

1

71M8-61100

ENGINE HOOD ASSY

#0628

1шт.

1-1

71M8-51111

BODY-ENGINE HOOD

1шт.

1-2

71M8-51122

SUPPORT WA

1шт.

1-3

71M8-51131

HINGE ASSY

2шт.

1-4

71M8-55140

LATCH ASSY

1шт.

1-5

71M8-51152

BRACKET WA-LATCH

1шт.

1-6

71M8-51161

SPONGE

1шт.

1-7

71M8-51171

SPONGE

1шт.

1-8

71M8-00831

LATCH ASSY-OUT

1шт.

1-8-1

S275-080002

NUT-SELF LOCKING

2шт.

1-9

S403-10100B

WASHER-PLAIN

2шт.

1-1

S035-081526

BOLT-W/WASHER

#0627

10шт.

1-1

S035-081526

BOLT-W/WASHER

#0628

22шт.

1-11

S141-080406

SCREW-FLAT HD

2шт.

1-12

S037-103026

BOLT-W/WASHER

7шт.

1-13

S771-025000

WEATHER STRIP

1шт.

1-14

71M8-51190

SPONGE-AL COATING

1шт.

1-15

71M7-52200

CAP-INSULAION

15шт.

1-16

71M7-52300

BOSS-INSULAION

15шт.

1-17

71M8-51330

ANGLE-REINFOCEMENT

1шт.

1-18

S181-148164

RIVET(POP)

10шт.

1-19

S772-008500

WEATHER STRIP

2шт.

1-2

71M8-61200

WIRE NET-RH

#0628

1шт.

1-21

71M8-61300

WIRE NET-LH

#0628

1шт.

1-22

S791-016100

GROMMET-PLATE

#0628

2шт.

3

71M8-52101

SUPPORT ASSY

#0590

1шт.

3

71M8-62100

SUPPORT ASSY

#0591

1шт.

4

S037-100202

BOLT-W/WASHER

6шт.

5

S403-105002

WASHER-PLAIN

12шт.

17

S403-125002

WASHER-PLAIN

#0001

6шт.
