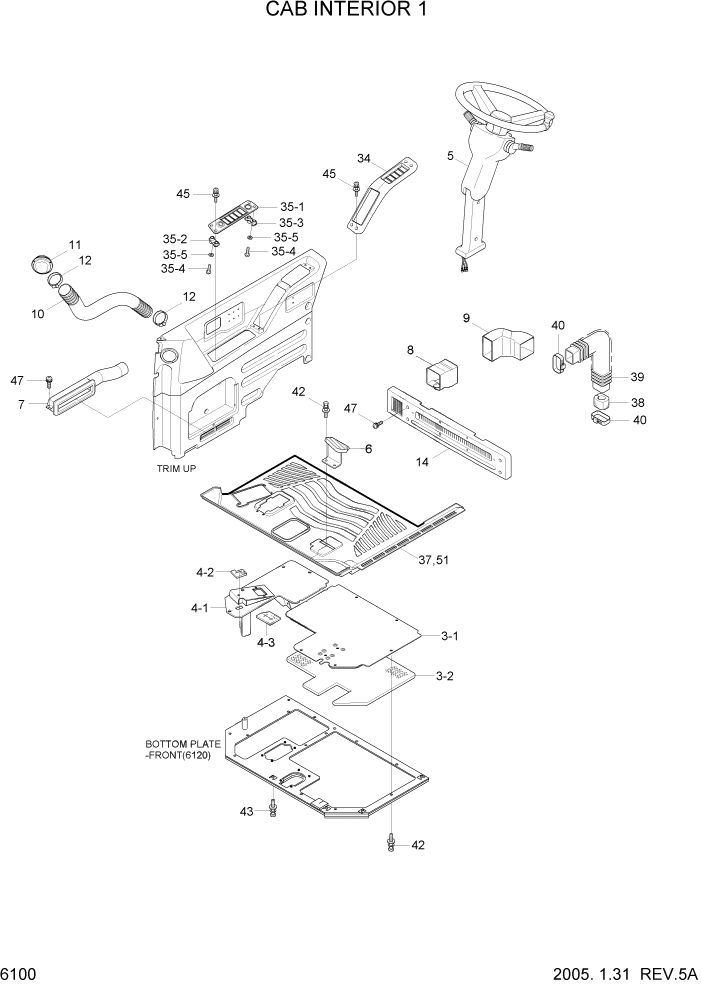

Запчасти Hyundai R55W7 PAGE 6100 CAB INTERIOR 1 СТРУКТУРА

3

72M8-10271

COVER ASSY-MCV

1шт.

3-1

72M8-10102

COVER WA-MCV

1шт.

3-2

72M8-10280

SPONGE

1шт.

4

72M8-10291

COVER ASSY-T/JOINT

1шт.

4-1

72M8-10122

COVER WA-T/JOINT

1шт.

4-2

72M8-10300

SPONGE

1шт.

4-3

72M8-10310

SPONGE

1шт.

5

@

STEERING COLUMN ASSY

NOT #0001

1шт.

6

71M8-10270

FOOT REST ASSY-LH

1шт.

7

71M8-20011

DUCT-FOOT(RH)

1шт.

8

71M8-20021

DUCT-FOOT(SEAT LOW)

1шт.

9

71M8-20031

DUCT-FOOT(REAR)

1шт.

10

71N6-20210

HOSE-DEFROSTER

1шт.

11

71M8-21030

NOZZLE-DEF

1шт.

12

S520-055000

CLAMP-HOSE

2шт.

14

71M8-20272

COVER-SEAT BASE

1шт.

34

71M8-20850

PANEL-RADIO

1шт.

35

71M8-20862

PANEL-KEY

1шт.

35-1

71M8-21310

PANEL

1шт.

35-2

71M8-21320

CONNECTOR(1)

1шт.

35-3

71M8-21330

CONNECTOR(2)

1шт.

35-4

S151-030106

SCREW-TAPPING

6шт.

35-5

S403-032006

WASHER-PLAIN

6шт.

37

72M8-20941

MAT-FLOOR

SINGLE ACTING

1шт.

38

71N6-20450

FILTER-SPONGE

2шт.

39

71N6-20181

TUBE

1шт.

40

S520-115000

CLAMP-HOSE

2шт.

42

S037-102026

BOLT-W/WASHER

16шт.

43

S037-102526

BOLT-W/WASHER

17шт.

45

S131-051526

SCREW-W/WASHER

#0001

8шт.

47

S132-061526

SCREW-W/WASHER

4шт.

51

72M8-20950

MAT-FLOOR

DOUBLE ACTING

1шт.
