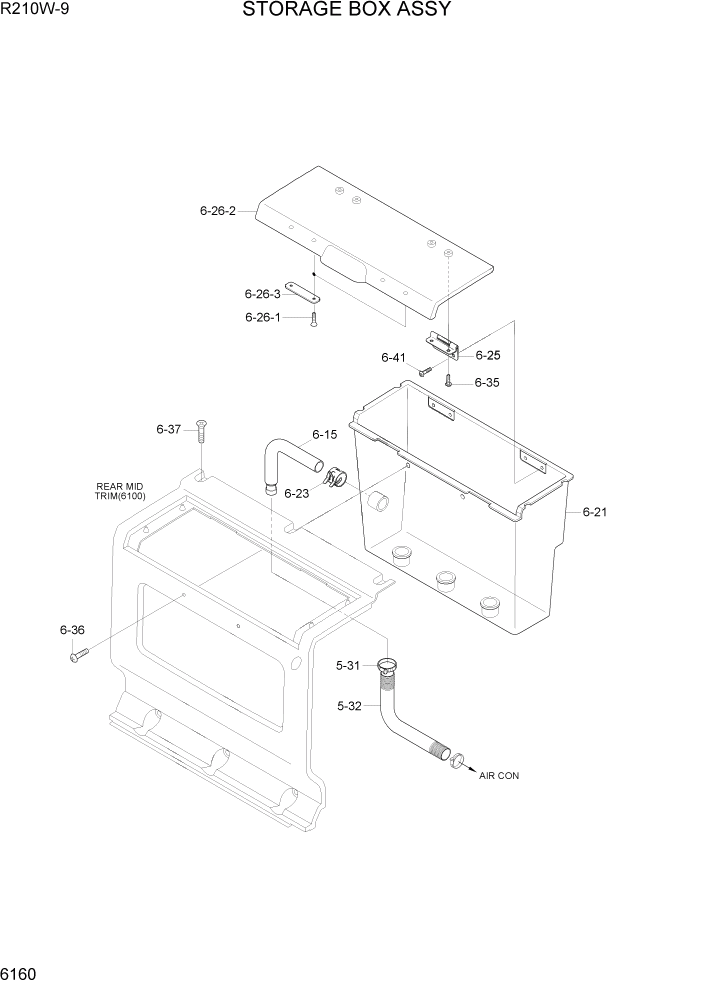

Запчасти Hyundai R210W-9 PAGE 6160 STORAGE BOX ASSY СТРУКТУРА

5

@

BOTTOM PLATE SUB ASSY

NOT

1шт.

5-31

71N6-20370

CLIP-HOSE

1шт.

5-32

71N6-20360

HOSE-STORAGE BOX

1шт.

6

@

CABIN SUB ASSY

NOT

1шт.

6-15

71Q6-23000

HOSE ASSY

1шт.

6-21

71Q6-22190GG

STORAGE BOX

1шт.

6-23

71N6-20370

CLIP-HOSE

1шт.

6-25

71Q6-21570

HINGE ASSY

1шт.

6-26

71Q6-22200GG

COVER ASSY-S/BOX

1шт.

6-26-1

S141-040166

SCREW-FLAT HD

4шт.

6-26-2

71Q6-22550GG

COVER-STORAGE BOX

1шт.

6-26-3

71Q6-22560

PLATE

2шт.

6-35

S002-06015B

SCREW-TRUS HEAD

4шт.

6-36

S002-06010B

SCREW-TRUS HEAD

2шт.

6-37

S002-06015B

SCREW-TRUS HEAD

3шт.

6-41

S132-051026

SCREW-W/WASHER

4шт.
