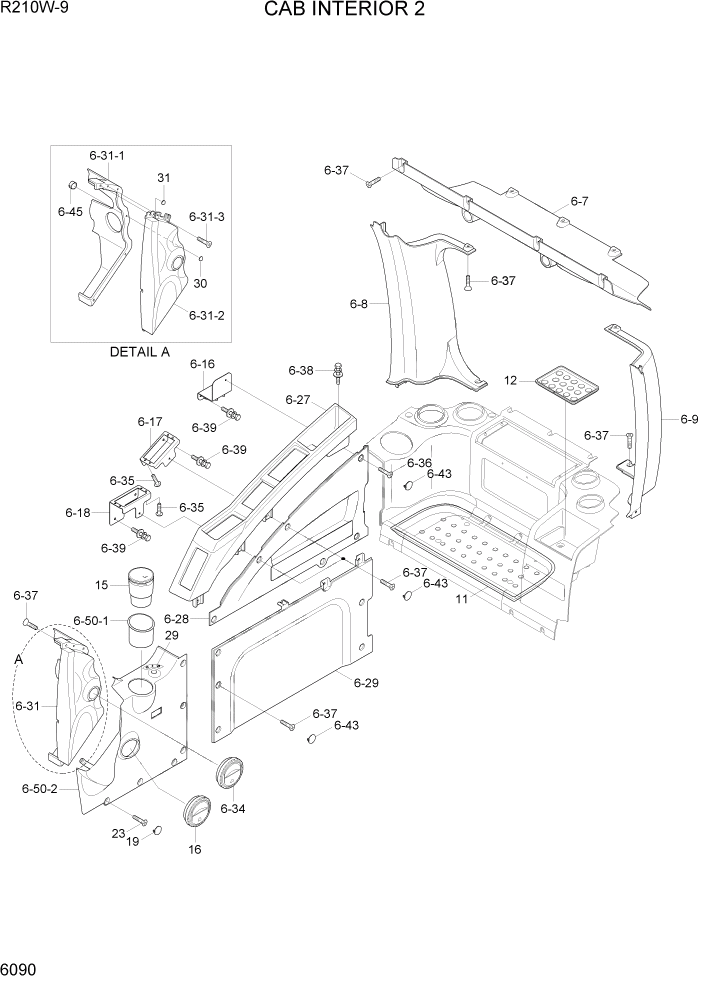

Запчасти Hyundai R210W-9 PAGE 6090 CAB INTERIOR 2 СТРУКТУРА

6

@

CABIN SUB ASSY

NOT

1шт.

6-7

71Q6-22250GG

COVER-SPEAKER

1шт.

6-8

71Q6-22240GG

TRIM-PILLAR,RH

1шт.

6-9

71Q6-22230GG

TRIM-PILLAR,LH

1шт.

6-16

71Q6-21500

BRACKET-TRAY

1шт.

6-17

71Q6-21530

BRACKET-REMOTE

1шт.

6-18

71Q6-21550

BRACKET-MEMBRANE

1шт.

6-27

71Q6-22141

PANEL-SWITCH

1шт.

6-28

71Q6-22800GG

TRIM ASSY-UPPER,RH

1шт.

6-29

71Q6-22660GG

TRIM ASSY-LOWER,RH

1шт.

6-31

71Q6-22581GG

COVER-WIPER MOTOR

1шт.

6-31-1

71Q6-22091

COVER(1)-WIPER MOTOR

1шт.

6-31-2

71Q6-22101

COVER(2)-WIPER MOTOR

1шт.

6-31-3

S002-06015B

SCREW-TRUS HEAD

2шт.

6-34

71Q6-22390

NOZZLE-AIR, FRONT

2шт.

6-35

S002-05015B

SCREW-TRUSHEAD

8шт.

6-36

S002-06010B

SCREW-TRUS HEAD

1шт.

6-37

S002-06015B

SCREW-TRUS HEAD

16шт.

6-38

S035-061526

BOLT-W/WASHER

1шт.

6-39

S035-081526

BOLT-W/WASHER

6шт.

6-43

71Q6-22760GG

CAP-TRIM

11шт.

6-45

71Q6-23040

CAP-WIPER MOTOR(2)

1шт.

6-5

71Q6-22980GG

TRIM-RH,FRONT LOW

1шт.

6-50-1

71Q6-22110GG

HOLDER-CUP

1шт.

6-50-1

71Q6-22110

HOLDER-CUP

1шт.

6-50-2

71Q6-22080

TRIM-RH,FRONT LOW

1шт.

6-50-2

71Q6-22080GG

TRIM-RH,FRONT LOW

1шт.

11

71Q6-22340

COVER MAT-AIRCON

1шт.

12

71Q6-22350

COVER MAT-RADIO TRAY

1шт.

15

71Q6-22410

ASH-TRAY

1шт.

16

71Q6-22390

NOZZLE-AIR, FRONT

1шт.

19

71Q6-22760GG

CAP-TRIM

3шт.

30

71Q6-22771

CAP-WIPER MOTOR

1шт.

31

71Q6-23050

CAP-WIPER MOTOR

1шт.

30

71Q6-22771

CAP-WIPER MOTOR

1шт.

31

71Q6-23050

CAP-WIPER MOTOR

1шт.
