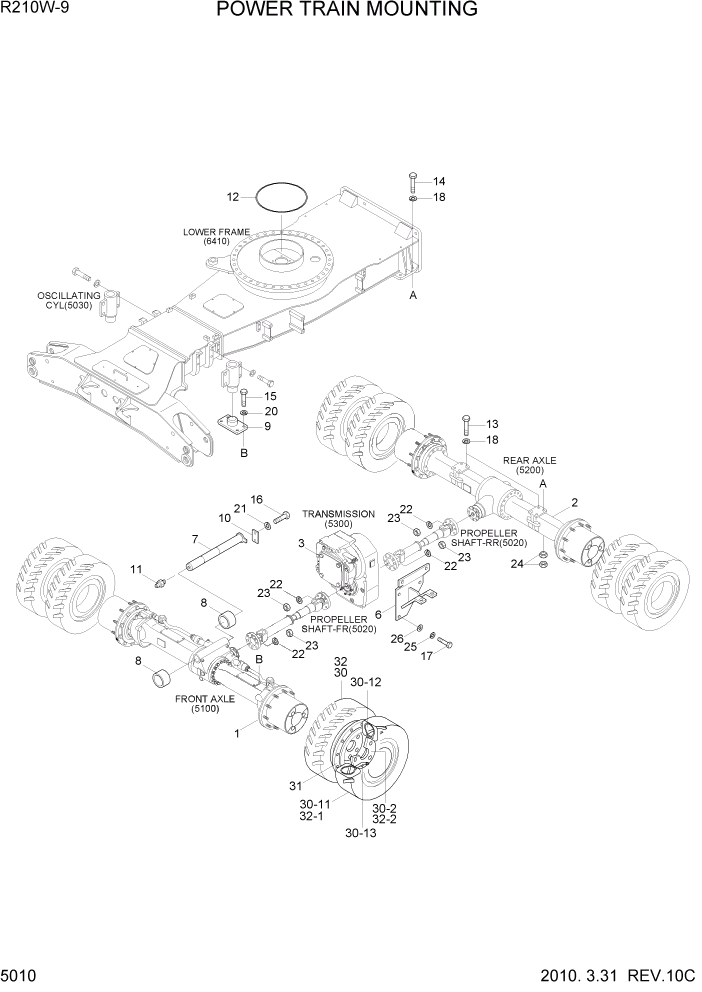

Запчасти Hyundai R210W-9 PAGE 5010 POWER TRAIN MOUNTING ТРАНСМИССИЯ

1

81N6-41010

AXLE-FRONT

SEE 5100 #0010

1шт.

1

81Q6-40010

AXLE-FRONT

SEE 5400 #0011

1шт.

2

81N6-41020

AXLE-REAR

SEE 5200 #0010

1шт.

2

81Q6-40020

AXLE-REAR

SEE 5500 #0011

1шт.

3

81Q6-40030

TRANSMISSION

SEE 5300

1шт.

6

81Q6-40100

BRACKET WA-T/M

1шт.

7

81N6-41050GG

PIN-PIVOT

1шт.

8

81E4-0004

BUSHING

2шт.

9

81N6-40151GG

SUPPORT-OSCIL CYL

2шт.

10

51E3-3164GG

PLATE-LOCK

1шт.

11

S652-810002

NIPPLE-GREASE

1шт.

12

E181-3001

SEAL-GREASE

1шт.

13

S018-24200D

BOLT-HEX

4шт.

14

S017-24260D

BOLT-HEX

4шт.

15

S017-16040D

BOLT-HEX

8шт.

16

S017-120256

BOLT-HEX

2шт.

17

S017-20045D

BOLT-HEX

7шт.

18

S441-240006

WASHER-HARDENED

8шт.

20

S411-160006

WASHER-SPRING

8шт.

21

S411-120006

WASHER-SPRING

2шт.

22

S411-100006

WASHER-SPRING

32шт.

23

81E4-3007-DA

NUT-HEX

32шт.

24

S205-24100B

NUT-HEX

8шт.

25

S411-200006

WASHER-SPRING

7шт.

26

S441-200006

WASHER-HARDENED

7шт.

30

81N5-50100GG

TIRE & WHEEL ASSY

DUAL, 10.00*20

8шт.

30-1

81E4-20200

TIRE ASSY

DU/10.0*,KUMHO

1шт.

N30-1

81E4-20200H

TIRE ASSY

NOT

1шт.

N30-1

81E4-20200S

TIRE ASSY

NOT #0106

1шт.

30-11

81E4-2001

TIRE

DU/10.0*,KUMHO

1шт.

30-12

81E4-2002

TIRE

DUAL, 10.00*20

1шт.

30-13

81E4-2003

FLAP

DUAL, 10.00*20

1шт.

30-2

81N5-50010GG

WHEEL WA

DUAL, 10.00*20

1шт.

31

81N5-50061

RING-STONE REGISTER

DUAL, 10.00*20

4шт.

32

81N5-50200GG

TIRE & WHEEL ASSY

SOLID, 10.00*20

8шт.

32-1

81E4-21020

TIRE

SOLID, 10.00*20

1шт.

32-2

81N5-50010GG

WHEEL WA

SOLID, 10.00*20

1шт.
