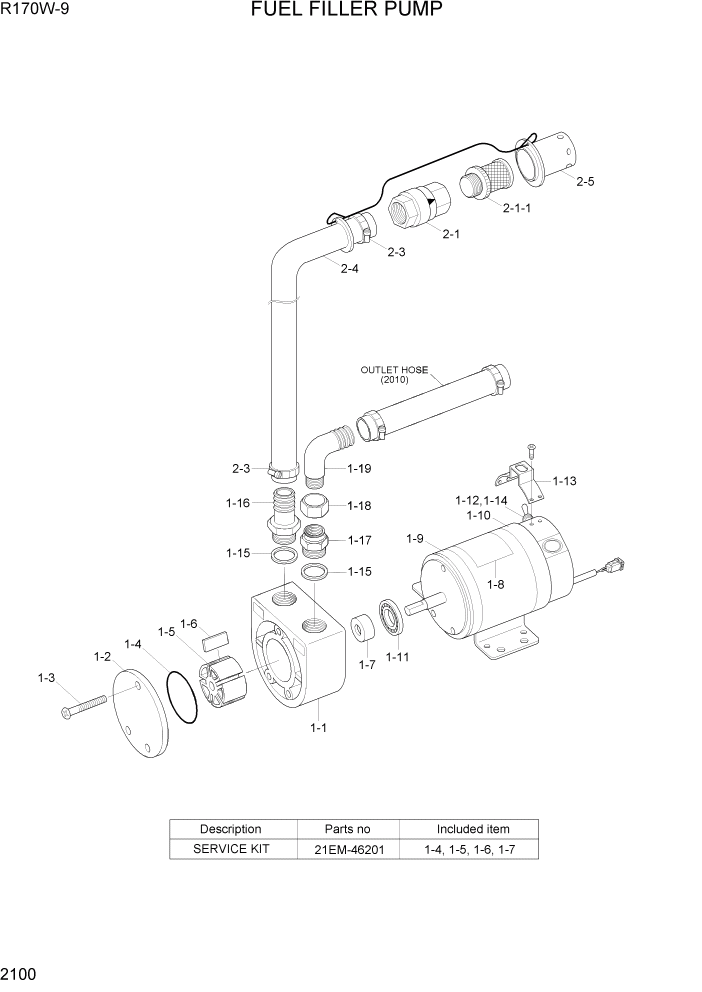

Запчасти Hyundai R170W9 PAGE 2100 FUEL FILLER PUMP ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

21N6-20312

FUEL FILLER PUMP

1шт.

1

21N6-20302

PUMP & MOTOR ASSY

1шт.

N1-1

@

BODY

NOT

1шт.

N1-2

@

COVER-PUMP

NOT

1шт.

N1-3

@

SCREW

NOT

3шт.

K1-4

21EM-45050

O-RING

1шт.

K1-5

21EM-45060

ROTOR

1шт.

K1-6

21EM-45070

PLATE-VANE

5шт.

K1-7

21EM-45080

SEAL-OIL

1шт.

1-8

21EM-45091

DECAL

1шт.

N1-9

@

COVER-FRONT

NOT

1шт.

N1-10

@

COVER-REAR

NOT

1шт.

N1-11

@

BEARING

NOT

1шт.

1-12

21EM-45101

BOX-SWITCH

1шт.

N1-13

@

COVER-SWITCH

NOT

1шт.

N1-14

@

SWITCH-TOGGEL

NOT

1шт.

1-15

21EM-45500

WASHER-AL

3шт.

N1-16

@

ADAPTER

NOT

1шт.

1-17

21EM-45700

FITTING

1шт.

1-18

21EM-45800

NUT-ELBOW

1шт.

1-19

21EM-45900

ELBOW

1шт.

2

21EM-46400

HOSE ASSY

1шт.

2-1

21M5-50260

VALVE-CHECK

1шт.

2-1-1

2P1-SP-01

STRAINER ASSY

1шт.

2-3

S520-027000

CLAMP-HOSE

1шт.

2-4

21EM-46101

HOSE

1шт.

2-5

21EM-46300

CAP ASSY

1шт.

K

21EM-46201

SERVICE KIT

SEE ILLUST

1шт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
