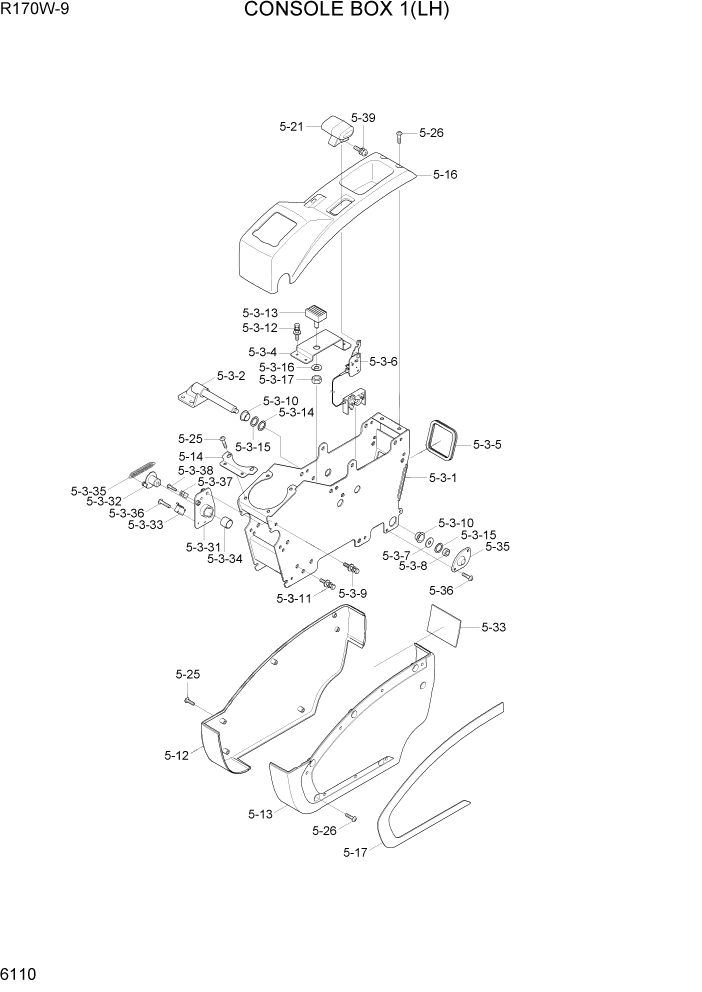

Запчасти Hyundai R170W9 PAGE 6110 CONSOLE BOX 1(LH) СТРУКТУРА

5

@

BOTTOM PLATE SUB ASSY

NOT

1шт.

5-3

71Q4-21001

CONSOLE FRAME ASSY-LH

1шт.

5-3-1

71Q4-21331

FRAME WA-CONSOLE

1шт.

5-3-2

71Q6-21311

BRACKET WA-CONSOLE

1шт.

5-3-3

71Q6-20920

BRACKET ASSY-SAFETY

1шт.

5-3-31

71Q6-20930

BRACKET-LOWER

1шт.

5-3-32

71Q6-20960

BRACKET-UPPER

1шт.

5-3-33

21N8-20300

SWITCH-MICRO

1шт.

5-3-34

S731-020010

BUSHING-DU

1шт.

5-3-35

71N6-21610

SPRING

1шт.

5-3-36

S161-030156

SCREW-CROSS R/ROUND

2шт.

5-3-37

71Q6-22840

PLATE-STOPPER

1шт.

5-3-38

S131-051526

SCREW-W/WASHER

1шт.

5-3-4

71Q4-22070

PLATE

1шт.

5-3-5

71Q6-21420

GROMMET

1шт.

5-3-6

71Q4-22002

LATCH ASSY

1шт.

5-3-7

71Q6-22690

SHIM-ROUND

1шт.

5-3-8

S275-12000B

NUT-SELF LOCKING

1шт.

5-3-9

71Q6-22631

SHIM-CONSOLE

2шт.

5-3-10

S731-020020

BUSHING-DU

2шт.

5-3-11

S035-084526

BOLT-W/WASHER

2шт.

5-3-12

S132-061526

SCREW-W/WASHER

5шт.

5-3-13

71Q4-22140

DAMPER-CONSOLE

1шт.

5-3-14

71Q6-22631

SHIM-CONSOLE

1шт.

5-3-15

71Q6-23080

SHIM-CONSOLE

3шт.

5-3-16

S403-08200B

WASHER-PLAIN

1шт.

5-3-17

S205-08100B

NUT-HEX

1шт.

5-12

71Q6-22050GG

CONSOLE COVER-LOW,RH

1шт.

5-13

71Q6-22010GG

CONSOLE COVER-LOW,LH

1шт.

5-14

71Q6-21610

BRACKET-CONSOLE UP

1шт.

5-16

71Q4-22060GG

CONSOLE COVER-UP,LH

1шт.

5-17

71Q6-22031

CONSOLE COVER-TRIM

1шт.

5-21

71Q4-22120GG

KNOB-LATCH

1шт.

5-25

S002-06010B

SCREW-TRUS HEAD

6шт.

5-26

S002-06015B

SCREW-TRUS HEAD

11шт.

5-33

71Q6-22670

PROTECTOR

1шт.

5-35

71Q6-23130GG

CAP-CONSOLE

1шт.

5-36

S002-05015B

SCREW-TRUSHEAD

2шт.

5-39

S131-040826

SCREW-W/WASHER

1шт.
