Запчасти Hyundai R140W9 PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

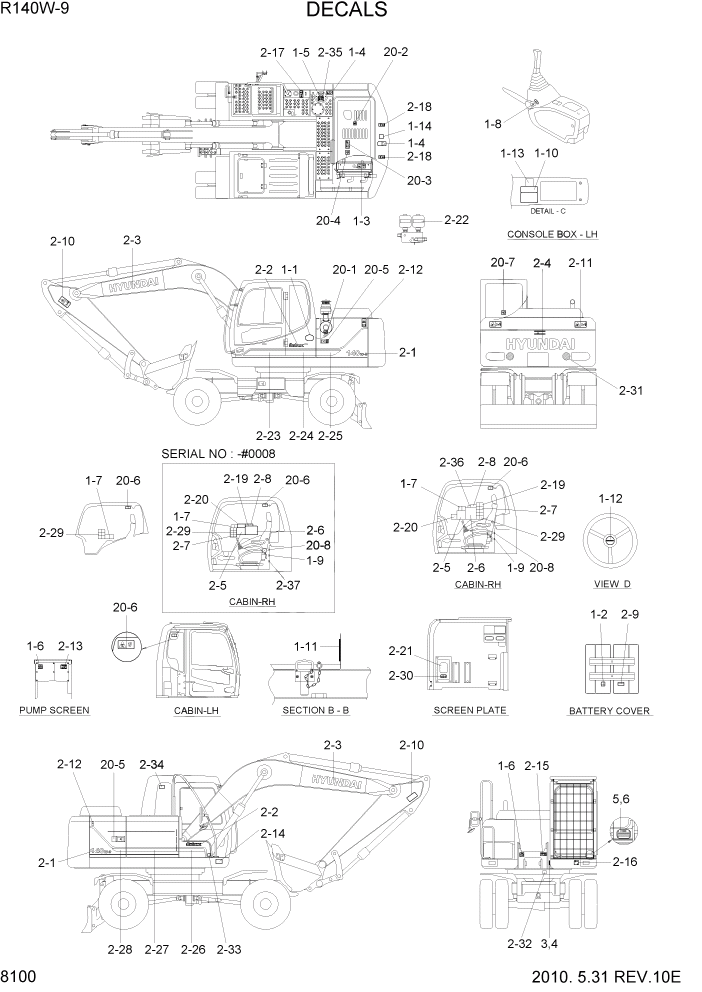

Схема запчастей Hyundai R140W9 - PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

Артикул

Название

Примечание

Количество

1

91Q4-00200

DECAL KIT(A)

1шт.

1-1

91E1-27110

DECAL-LOW EMI ENGINE

1шт.

1-2

91N6-02120

DECAL-BATT ACCIDENT

1шт.

1-3

91N6-01121

DECAL-RADIATOR CAP

1шт.

1-4

91N6-03140

DECAL-FALLING

2шт.

1-5

91N6-03111

DECAL-OIL LUBRICATION

1шт.

1-6

91N6-03130

DECAL-HIGH PRESS HOSE

2шт.

1-7

92N6-07200

DECAL-CNTL IDEOGRAM

ISO, MONO BM

1шт.

1-7

92N6-08200

DECAL-CNTL IDEOGRAM

ASIA, MONO BM

1шт.

1-7

92N6-07500

DECAL-CNTL IDEOGRAM

ISO, ADJUST BM

1шт.

1-7

92N6-08500

DECAL-CNTL IDEOGRAM

ASIA,ADJUST BM

1шт.

1-8

92N6-07310

DECAL-SAFETY LEVER

1шт.

1-9

91N6-07272

DECAL-AIRCON FILTER

1шт.

1-1

91N6-07340

DECAL-IDEOGRAM

1шт.

1-1

92N6-07360

DECAL-IDEOGRAM

1шт.

1-1

92N6-07431

DECAL-IDEOGRAM

1шт.

1-11

92N6-07410

DECAL-SWING IDEOGRAM

1шт.

1-12

92N6-07420

DECAL-STEERING WHEEL

1шт.

1-13

92N6-07510

DECAL-CONSOLE BOX TILT

1шт.

1-14

91N6-07131

DECAL-NO STEP

1шт.

2

91Q4-20100

DECAL KIT(B)

#0008

1шт.

2

91Q4-20101

DECAL KIT(B)

#0009 - #0016

1шт.

2

91Q4-20102

DECAL KIT(B)

#0017 - #0037

1шт.

2

91Q4-20103

DECAL KIT(B)

#0038 - #0043

1шт.

2

91Q4-20104

DECAL KIT(B)

#0044

1шт.

2-1

91Q4-10060

DECAL-MODEL NAME,LH

2шт.

2-2

91Q6-07112

DECAL-ROBEX LOGO

2шт.

2-3

91N6-23100

DECAL-HYUNDAI LOGO

2шт.

2-4

91N6-26160

DECAL-HYUNDAI LOGO

1шт.

2-5

91Q4-03100

DECAL-LIFTING CHART KIT

1шт.

2-6

91Q4-10720

DECAL-S/INSTRUCTION

#0008

1шт.

2-6

91Q4-10721

DECAL-S/INSTRUCTION

#0009

1шт.

2-7

91Q6-07330

DECAL-LOCKING CLAMP

1шт.

2-8

91N6-07390

DECAL-TURBOCHARGER

1шт.

2-9

91LB-01350

DECAL-ECM CONNECTOR

1шт.

2-1

91N6-06110

DECAL-KEEP CLEAR-ATT

2шт.

2-11

91Q6-07010

DECAL-KEEP CLEAR,RR

2шт.

2-12

91Q6-07021

DECAL-KEEP CLEAR,SIDE

2шт.

2-13

92N6-03100

DECAL-HYD OIL LEVEL

1шт.

2-14

92N6-07140

DECAL-TRANSPORTING

1шт.

2-15

91N6-03121

DECAL-RED GEAR GREASE

1шт.

2-16

91N6-22120

DECAL-NOISE LEVEL/LWA

1шт.

2-16

91N6-22120

DECAL-NOISE LEVEL/LWA

1шт.

2-17

91M8-01140

DECAL-FUELING

1шт.

2-18

91N6-04140

DECAL-LIFTING EYE

2шт.

2-19

92N6-07350

DECAL-SWING LOCK

#0008

1шт.

2-19

92Q6-07350

DECAL-SWING LOCK

#0009

1шт.

2-2

91N6-07400

DECAL-M/CONTROL,CAB

1шт.

2-21

91N6-07410

DECAL-MACHINE CNTL

1шт.

2-22

91N6-03200

DECAL-ACCUMULATOR

5шт.

2-23

91Q6-07510

DECAL-CAB FR BAND

1шт.

2-24

91Q6-07520

DECAL-CAB RR BAND

1шт.

2-25

91Q4-07530

DECAL-S/DOOR BAND,LH

#0008

1шт.

2-25

91Q4-07531

DECAL-S/DOOR BAND,LH

#0009

1шт.

2-26

91Q4-07610

DECAL-TOOL BOX BAND

#0008

1шт.

2-26

91Q4-07611

DECAL-TOOL BOX BAND

#0009

1шт.

2-27

91Q4-07620

DECAL-TANK BAND

#0008

1шт.

2-27

91Q4-07621

DECAL-TANK BAND

#0009

1шт.

2-28

91Q4-07630

DECAL-S/DOOR BAND,RH

#0008

1шт.

2-28

91Q4-07631

DECAL-S/DOOR BAND,RH

#0009

1шт.

2-29

91Q6-07371

DECAL-CABIN RH PILLAR

#0037

1шт.

2-29

91Q4-07370

DECAL-CABIN RH PILLAR

#0038

1шт.

2-3

91Q6-03210

DECAL-RCV L/PATTERN

1шт.

2-31

91Q4-07020

DECAL-REFLECTING

2шт.

2-32

91Q6-03220

DECAL-SWING BEARING

1шт.

2-33

91M9-02110

DECAL-BATTERY POSITION

#0008

1шт.

2-33

91MJ-02110

DECAL-BATT POSITION

#0009

1шт.

2-34

91Q4-02200

DECAL-BEACON LAMP

#0009

1шт.

2-35

91Q6-03230

DECAL-FUEL SHUT OFF

#0017

1шт.

2-36

91Q4-07180

DECAL-WATER SEPARATOR

#0017

1шт.

2-37

91Q4-15860

DECAL-MCU/ECM CONNECT

#0044

1шт.

3

91E1-14110

NAME PLATE

#0016

1шт.

3

91LM-14110

DECAL-PIN PLATE

#0017

1шт.

3

91E1-14130

NAME PLATE

EU ONLY #0016

1шт.

3

91LM-14130

DECAL-PIN PLATE

EU ONLY #0017

1шт.

4

91EK-12010

RIVET

4шт.

5

91N6-01280

DECAL-FOPS FOG PLATE

1шт.

6

91EK-12010

RIVET

4шт.

20

91Q4-00091

DECAL KIT-A/S

4шт.

20-1

91N6-01102

DECAL-A/CLEANER FILTER

1шт.

20-2

91N6-01111

DECAL-TURBO COVER

1шт.

20-3

91N6-07121

DECAL-SHEARING

1шт.

20-4

91N6-07131

DECAL-NO STEP

1шт.

20-5

91N6-07112

DECAL-STAY FIX

2шт.

20-6

91Q6-07250

DECAL-SAFETY FR WINDOW

2шт.

20-7

91N6-07261

DECAL-ALTERNATE EXIT

1шт.

20-8

91N6-07280

DECAL-HAMMER

1шт.

Выбрано товаров: 87
