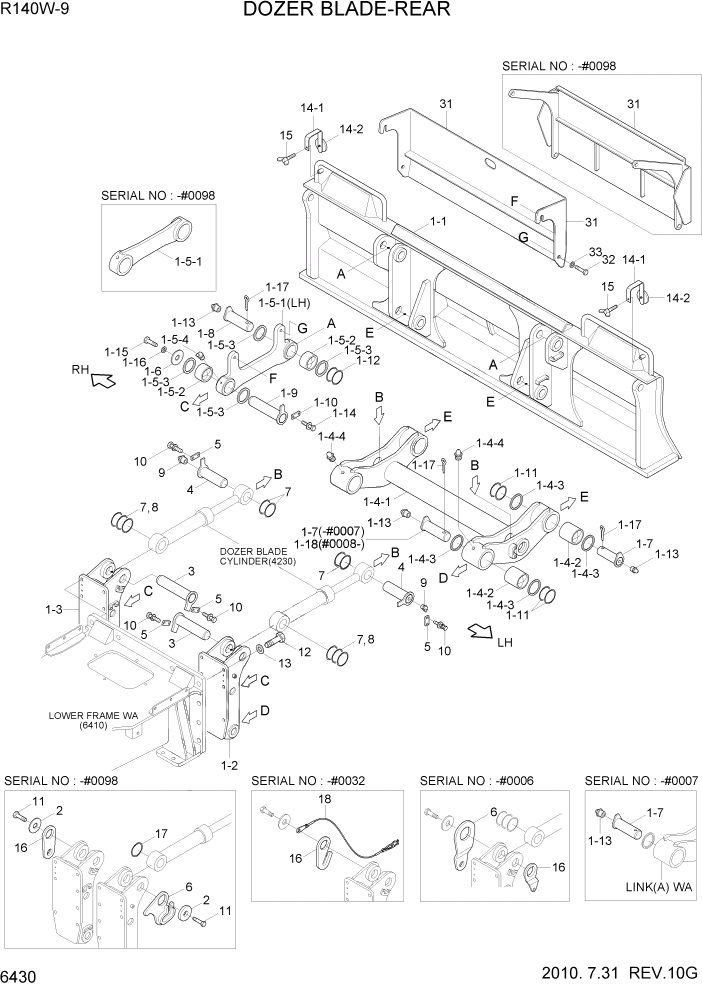

Запчасти Hyundai R140W9 PAGE 6430 DOZER BLADE-REAR СТРУКТУРА

1

51Q4-51001

BLADE ASSY

#0006

1шт.

1

51Q4-51002

BLADE ASSY

#0007 - #0098

1шт.

1

51Q4-51003

BLADE ASSY

#0099

1шт.

1-1

51Q4-51011

BLADE WA

#0006

1шт.

1-1

51Q4-51012

BLADE WA

#0007 - #0007

1шт.

1-1

51Q4-51013

BLADE WA

#0008 - #0098

1шт.

1-1

51Q4-51014

BLADE WA

#0099

1шт.

1-2

51Q4-51250

BRACKET WA-LH

1шт.

1-3

51Q4-51260

BRACKET WA-RH

1шт.

1-4

51Q4-51310

LINK(A) ASSY

#0007

1шт.

1-4

51Q4-50311

LINK(A) ASSY

#0008

1шт.

1-4-1

51Q4-51320

LINK(A) WA

1шт.

N1-4-1

51Q4-50321

LINK WA

NOT

1шт.

1-4-2

51Q4-55010

BUSHING

4шт.

1-4-3

Y020-055511

SEAL-DUST,DLI,KPU

8шт.

1-4-4

S651-810002

NIPPLE-GREASE

#0008

2шт.

1-5

51Q4-51330

LINK(B) ASSY

#0009

2шт.

1-5

51Q4-50330

LINK(B) ASSY

#0010 - #0098

2шт.

1-5

51Q4-50610

LINK(B) ASSY

#0099

2шт.

1-5-1

51Q4-51340

LINK(B) WA

#0009

1шт.

N1-5-1

51Q4-50340

LINK(B) WA

NOT #0010 - #0098

1шт.

N1-5-1

51Q4-50620

LINK(B) WA

NOT #0099

1шт.

1-5-2

51Q4-55000

BUSHING

2шт.

1

51Q4-51001

BLADE ASSY

1шт.

1-1

51Q4-51011

BLADE WA

1шт.

1-2

51Q4-51250

BRACKET WA-LH

1шт.

1-3

51Q4-51260

BRACKET WA-RH

1шт.

1-4

51Q4-51310

LINK ASSY(A)

1шт.

1-4-1

51Q4-51320

LINK(A) WA

1шт.

1-4-2

51Q4-55010

BUSHING

4шт.

1-4-3

Y020-055511

SEAL-DUST,DLI,KPU

8шт.

1-5

51Q4-51330

LINK (B) ASSY

2шт.

1-5-1

51Q4-51340

LINK(B) WA

2шт.

1-5-2

51Q4-55000

BUSHING

2шт.

1-5-3

Y020-055511

SEAL-DUST,DLI,KPU

4шт.

1-5-4

S652-810002

NIPPLE-GREASE

1шт.

1-6

51Q4-50210

WASHER-LOCK

2шт.

1-7

53N4-55310

PIN ASSY

#0007

4шт.

1-7

53N4-55310

PIN ASSY

#0008

2шт.

1-8

53N4-55320

PIN ASSY

2шт.

1-9

53N4-55330

PIN ASSY

2шт.

1-1

51Q4-51410

PLATE-LOCK

2шт.

1-11

S391-055095

SHIM-ROUND(1.0T)

12шт.

1-12

S392-055095

SHIM-ROUND(2.0T)

4шт.

1-13

S651-810002

NIPPLE-GREASE

#0007

6шт.

1-13

S651-810002

NIPPLE-GREASE

#0008

4шт.

1-14

S037-122556

BOLT-W/WASHER

4шт.

1-15

S017-120406

BOLT-HEX

2шт.

1-16

S441-12000B

WASHER-HARDENED

2шт.

1-17

S461-800902

PIN-SPLIT

6шт.

1-18

51Q4-55310

PIN ASSY

WAS ITEM 1-7 #0008

2шт.

2

51Q4-50280

WASHER-LOCK

#0006

2шт.

2

51Q4-50281

WASHER-LOCK

#0007

2шт.

3

53N4-55441

PIN ASSY

#0098

2шт.

3

51Q4-55440

PIN ASSY

#0099

2шт.

4

53N4-55450

PIN ASSY

2шт.

5

51Q4-51410

PLATE-LOCK

4шт.

6

51Q4-50240

PLATE-PIVOT

#0098

2шт.

7

S391-065110

SHIM-ROUND(1.0T)

6шт.

8

S392-065110

SHIM-ROUND(2.0T)

6шт.

9

S651-810002

NIPPLE-GREASE

2шт.

10

S037-122556

BOLT-W/WASHER

8шт.

11

S017-120406

BOLT-HEX

#0098

2шт.

12

S018-24050D

BOLT-HEX

14шт.

13

S441-240006

WASHER-HARDENED

14шт.

N14

51Q4-51140

REFLECTOR ASSY

NOT

2шт.

14-1

51Q4-51150

BRACKET-REFLECTOR

1шт.

14-2

51EK-52990

REFLECTOR-REAR

1шт.

15

S091-100306

BOLT-WING

#0006

2шт.

15

S091-100206

BOLT-WING

#0007

2шт.

14-2

51EK-52990

REFLECTOR-REAR

1шт.

16

51Q4-50250

PLATE-PIVOT

#0008

1шт.

16

51Q4-50250

PLATE-PIVOT

1шт.

16

51Q4-50251

PLATE-PIVOT

#0009

1шт.

16

51Q4-51420

PLATE-PIVOT

#0033 - #0098

1шт.

17

S392-065090

SHIM-ROUND(2.0T)

#0007 - #0098

4шт.

31

51Q4-52511

COVER WA-BLADE

1шт.

18

51Q4-50350

WIRE ASSY-STEEL

#0007 - #0032

1шт.

31

51Q4-52511

COVER WA-BLADE

#0006

1шт.

32

51N4-51282

BOLT-COVER MTG

1шт.

31

51Q4-52512

COVER WA-BLADE

#0007 - #0032

1шт.

31

51Q4-52513

COVER WA-BLADE

#0033 - #0098

1шт.

31

51Q4-52710

COVER WA-BLADE

#0099

1шт.

32

51N4-51282

BOLT-COVER MTG

#0098

2шт.

32

S017-160456

BOLT-HEX

#0099

4шт.

33

S411-200006

WASHER-SPRING

#0098

2шт.

33

S441-160006

WASHER-HARDENED

#0099

4шт.

34

51Q4-51550

PLATE WA

#0033 - #0098

1шт.

35

S037-122556

BOLT-W/WASHER

#0033 - #0043

2шт.

35

S037-102556

BOLT-W/WASHER

#0044 - #0098

2шт.
