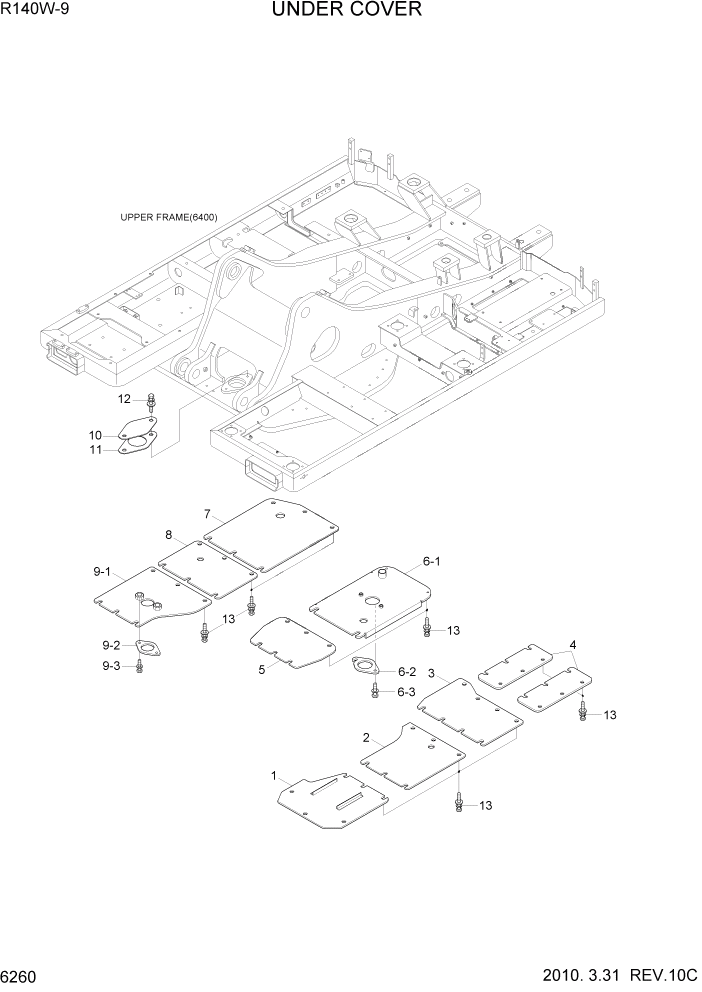

Запчасти Hyundai R140W9 PAGE 6260 UNDER COVER СТРУКТУРА

1

41Q4-10310

UNDER COVER-CAB(A)

#0006

1шт.

1

41Q4-11210

UNDER COVER-CAB(A)

#0007

1шт.

2

41Q4-10221

UNDER COVER-CAB(B)

#0006

1шт.

2

41Q4-11220

UNDER COVER-CAB(B)

#0007

1шт.

3

41Q4-10231

UNDER COVER-CAB(C)

#0006

1шт.

3

41Q4-11230

UNDER COVER-CAB(C)

#0007

1шт.

4

41Q4-10241

UNDER COVER-RAD

#0006

2шт.

4

41Q4-11240

UNDER COVER-RAD(A)

#0007

2шт.

5

41Q4-10251

UNDER COVER-MCV

#0006

1шт.

5

41Q4-11250

UNDER COVER-MCV

#0007

1шт.

8

41Q4-10281

UNDER COVER-HYD TANK

1шт.

6

41Q4-10350

UNDER COVER ASSY-ENG

#0006

1шт.

6

41Q4-11260

UNDER COVER ASSY-ENG

#0007 - #0021

1шт.

6

41Q4-11261

UNDER COVER ASSY-ENG

#0022

1шт.

6-1

41Q4-10360

COVER WA-ENGINE

#0006

1шт.

6-1

41Q4-11330

COVER WA-ENGINE

#0007 - #0021

1шт.

6-1

41Q4-11331

COVER WA-ENGINE

#0022

1шт.

6-2

43N4-10580

COVER-OIL DRAIN

#0006

1шт.

6-2

41Q4-11300

COVER-OIL DRAIN

#0007

1шт.

6-3

S037-102056

BOLT-W/WASHER

2шт.

7

41Q4-11270

UNDER COVER-PUMP

#0006

1шт.

7

41Q4-11271

UNDER COVER-PUMP

#0007

1шт.

8

41Q4-10281

UNDER COVER-HYD TANK

#0006

1шт.

8

41Q4-11280

UNDER COVER-HYD TANK

#0007

1шт.

9

41Q4-10292

UNDER COVER-F/TANK

#0006

1шт.

9

41Q4-11290

UNDER COVER-F/TANK

#0007

1шт.

9-1

41Q4-10330

COVER WA-FUEL TANK

#0006

2шт.

9-1

41Q4-11360

COVER WA-FUEL TANK

#0007

2шт.

9-2

43N4-10580

COVER-OIL DRAIN

#0006

2шт.

9-2

41Q4-11300

COVER-OIL DRAIN

#0007

2шт.

9-3

S037-102056

BOLT-W/WASHER

2шт.

10

41N6-10100

COVER

1шт.

11

41E9-1306

SEAL

1шт.

12

S037-102556

BOLT-W/WASHER

2шт.

13

41Q8-60030

BOLT-W/WASHER

59шт.
