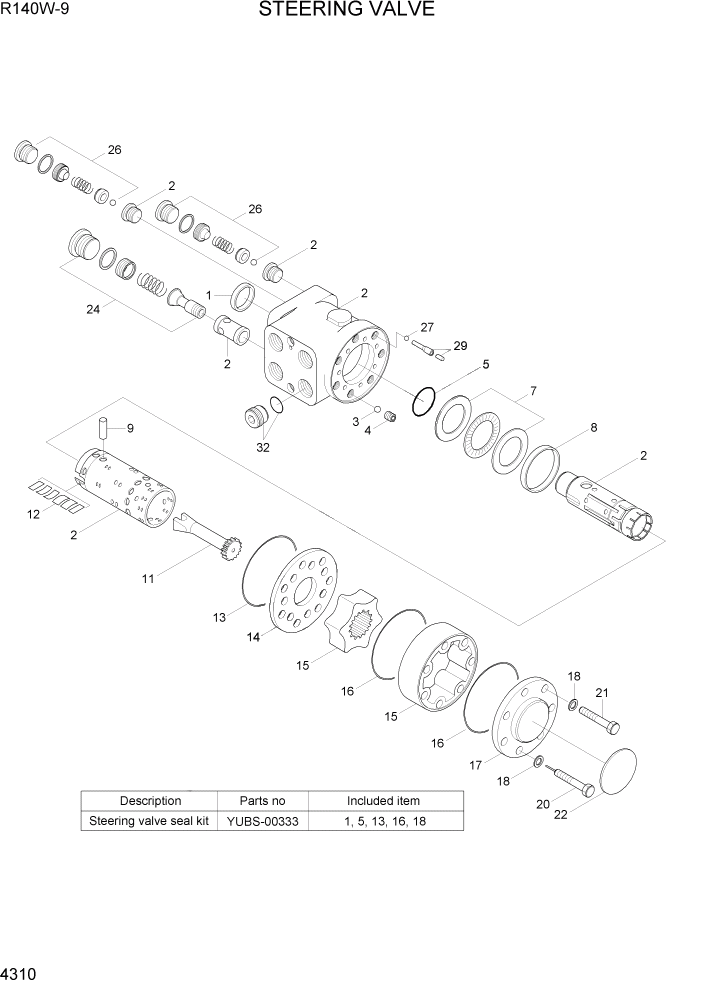

Запчасти Hyundai R140W9 PAGE 4310 STEERING VALVE ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

81Q5-00010

STEERING VALVE

1шт.

K1

@

SEAL-DUST

NOT

1шт.

N2

@

HSG,SPOOL,SLEEVE

NOT

1шт.

N3

@

BALL

NOT

1шт.

N4

@

BUSHING-THREAD

NOT

1шт.

K5

@

O-RING

NOT

1шт.

N7

@

BEARING ASSY

NOT

1шт.

N8

@

RING

NOT

1шт.

N9

@

PIN-CROSS

NOT

1шт.

N11

@

SHAFT-CARDAN

NOT

1шт.

N12

@

SPRING SET

NOT

1шт.

K13

@

O-RING

NOT

1шт.

N14

@

PLATE-DISTRIBUTOR

NOT

1шт.

N15

@

SET-GEAR WHEEL

NOT

1шт.

K16

@

O-RING

NOT

2шт.

N17

@

COVER-END

NOT

1шт.

K18

@

WASHER

NOT

7шт.

N20

@

CREW-PIN

NOT

1шт.

N21

@

SCREW

NOT

6шт.

N22

@

PLATE-NAME

NOT

1шт.

N24

@

RELIEF VALVE ASSY

NOT

1шт.

N26

@

VLV-SHOCK,COMPLETE

NOT

2шт.

N27

@

BALL

NOT

2шт.

N29

@

BUSHING-W/PIN

NOT

2шт.

N32

@

VALVE-CHECK

NOT

1шт.

K

YUBS-00333

SEAL KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
