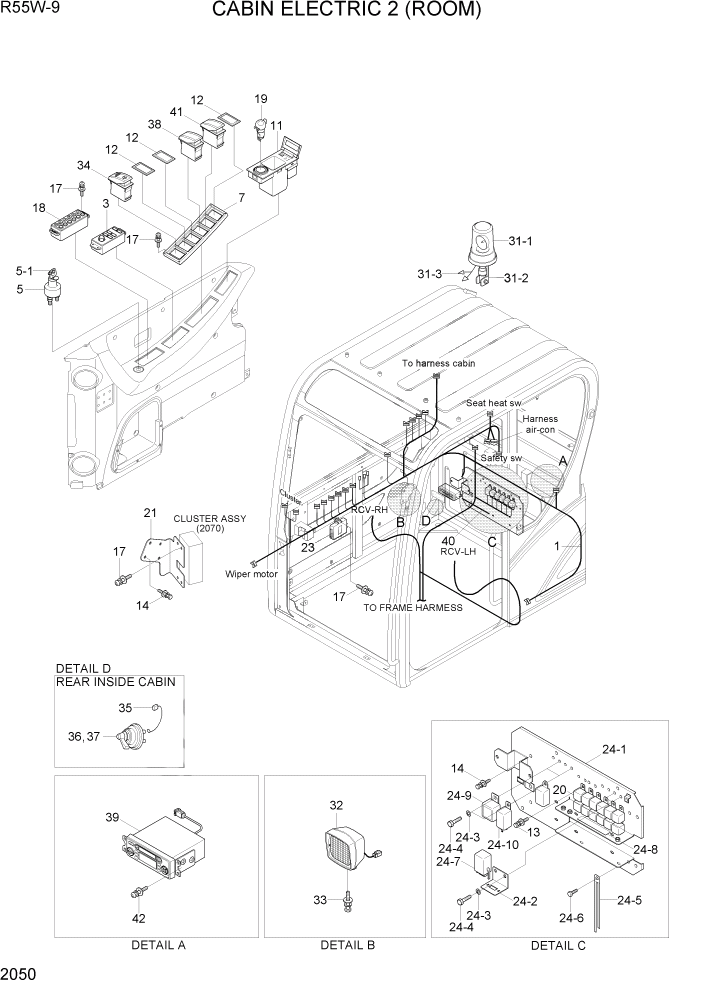

Запчасти Hyundai R55W-9 PAGE 2050 CABIN ELECTRIC 2 (ROOM) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21M9-35150

HARNESS-CABIN ROOM

1шт.

3

21M9-31800

REMOTE ASSY

1шт.

5

21Q4-00070

START KEY ASSY

1шт.

5-1

21N4-10400K

KEY-START

1шт.

7

21E6-10470

FRAME-MOUNTING

1шт.

11

21M9-31900

USB & SOCKET ASSY

1шт.

12

21E6-10460

COVER

3шт.

13

S035-081526

BOLT-W/WASHER

6шт.

14

S035-062026

BOLT-W/WASHER

10шт.

17

S131-051546

SCREW-W/WASHER

14шт.

18

21M9-41000

MEMBRANE SWITCH ASSY

1шт.

19

21M8-01420

SOCKET ASSY

1шт.

20

340005070

RELAY-12V,5P

11шт.

21

21M9-31300

BRACKET-CLUSTER

1шт.

23

21M9-31100

CONTROL UNIT-HANDSFREE

1шт.

24

21M9-43200

RELAY BOARD ASSY

1шт.

24-1

21M9-42800

PLATE

1шт.

24-2

21M8-32720

PLATE

1шт.

24-3

S411-060006

WASHER-SPRING

4шт.

24-4

S015-060126

BOLT-HEX

4шт.

24-5

21E9-00170

CLIP-HARNESS

4шт.

24-6

S017-100106

BOLT-HEX

4шт.

24-7

21M6-40060

RELAY-INT WIPER

1шт.

24-8

21M9-32750

DECAL-RELAY

1шт.

24-9

21M8-03720

TIMER-STOP LAMP

1шт.

24-1

21M6-40052

FLASHER UNIT ASSY

1шт.

31

21N1-00010

BEACON LAMP ASSY(12V)

1шт.

31-1

21N1-00020

LAMP-BEACON(12V)

1шт.

31-2

21Q4-20600

BRACKET-TILT

1шт.

31-3

21N4-02830

HARNESS-BEACON LAMP

1шт.

32

21M9-42000

WORK LAMP ASSY

1шт.

33

S037-102026

BOLT-W/WASHER

3шт.

34

21M9-30800

SWITCH-QUICK CLAMP

OPTION

1шт.

35

21N8-40170

HARNESS-EXTENSION

1шт.

36

21L7-10501

SWITCH-MASTER

1шт.

37

21LD-34180

DECAL-MASTER SWITCH

1шт.

38

21M9-40700

SWITCH-BOOM OFFSET

1шт.

39

21M9-31000

MP3 & RADIO PLAYER ASSY

1шт.

40

21M9-23100

HARNESS-WOODGRAB

OPTION

1шт.

41

21M9-35190

SWITCH-AIR

OPTION

1шт.

42

S131-051546

SCREW-W/WASHER

6шт.
