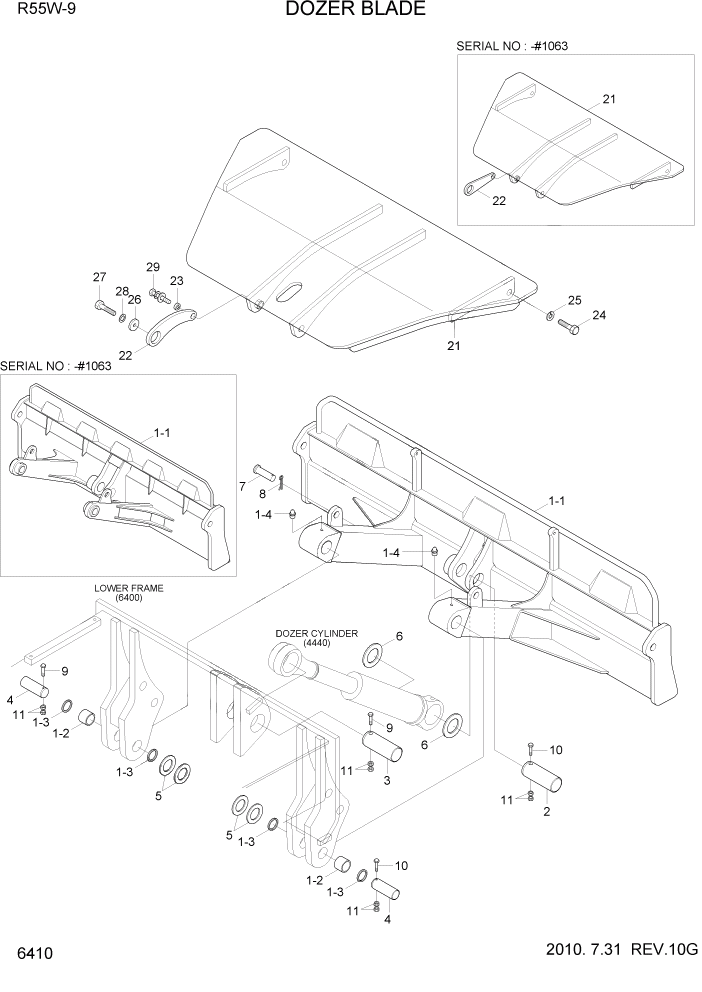

Запчасти Hyundai R55W-9 PAGE 6410 DOZER BLADE СТРУКТУРА

1

51M9-56000

DOZERB BLADE ASSY

#1063

1шт.

1

51M9-56001

DOZERB BLADE ASSY

#1064 - #1321

1шт.

1

51M9-56002

DOZERB BLADE ASSY

#1324

1шт.

1-1

51M9-56100

DOZER BLADE WA

#1063

1шт.

1-1

51M9-56101

DOZER BLADE WA

#1064 - #1321

1шт.

1-1

51M9-56102

DOZER BLADE WA

#1324

1шт.

1-2

51M9-55700

BUSHING

#1063

2шт.

1-2

51M9-55750

BUSHING

#1064

2шт.

1-3

Y020-035011

SEAL-DUST,DLI,KPU

#1063

4шт.

1-3

Y020-045211

SEAL-DUST,DLI,KPU

#1064

4шт.

1-4

S653-810002

NIPPLE-GREASE

#1063

2шт.

1-4

S651-810002

NIPPLE-GREASE

#1064

2шт.

2

51M8-55111

PIN ASSY

#1063

2шт.

2

61M8-51721

PIN ASSY

#1064

2шт.

3

51M9-55381

PIN ASSY

4шт.

4

61M8-51711

PIN ASSY

#1063

2шт.

4

61M9-51700

PIN ASSY

#1064

2шт.

5

S391-035070

SHIM-ROUND(0.5T)

#1063

2шт.

5

S391-045095

SHIM-ROUND(1.0T)

#1064

2шт.

6

S391-055095

SHIM-ROUND(1.0T)

2шт.

7

S491-221102

PIN-CLEVIS

#1063

2шт.

7

S491-221652

PIN-CLEVIS

#1064

2шт.

8

S501-200002

PIN-SELF LOCKING

2шт.

9

S017-120856

BOLT-HEX

#1063

2шт.

9

S017-120956

BOLT-HEX

#1064

2шт.

10

S017-121056

BOLT-HEX

2шт.

11

S205-12100B

NUT-HEX

8шт.

21

51M9-57511

COVER WA-BLADE

#1063

1шт.

21

51M9-57512

COVER WA-BLADE

#1064 - #1135

1шт.

21

51M9-57513

COVER WA-BLADE

#1136

1шт.

22

51M9-57100

PLATE-PIVOT

#1063

2шт.

22

51M9-57101

PLATE-PIVOT

#1064 - #1135

2шт.

22

51M9-57102

PLATE-PIVOT

#1136

2шт.

23

51M9-57130

SPACER

#1311

2шт.

23

51M9-57131

SPACER

#1312

2шт.

24

51M9-57141

BOLT-COVER MTG

2шт.

25

S411-160006

WASHER-SPRING

2шт.

26

51M9-57150

WASHER-LOCK

2шт.

27

S017-120256

BOLT-HEX

2шт.

28

S391-055080

SHIM-ROUND(1.0T)

2шт.

29

S037-122556

BOLT-W/WASHER

#1002

2шт.

29

S037-123056

BOLT-W/WASHER

#1003

2шт.
