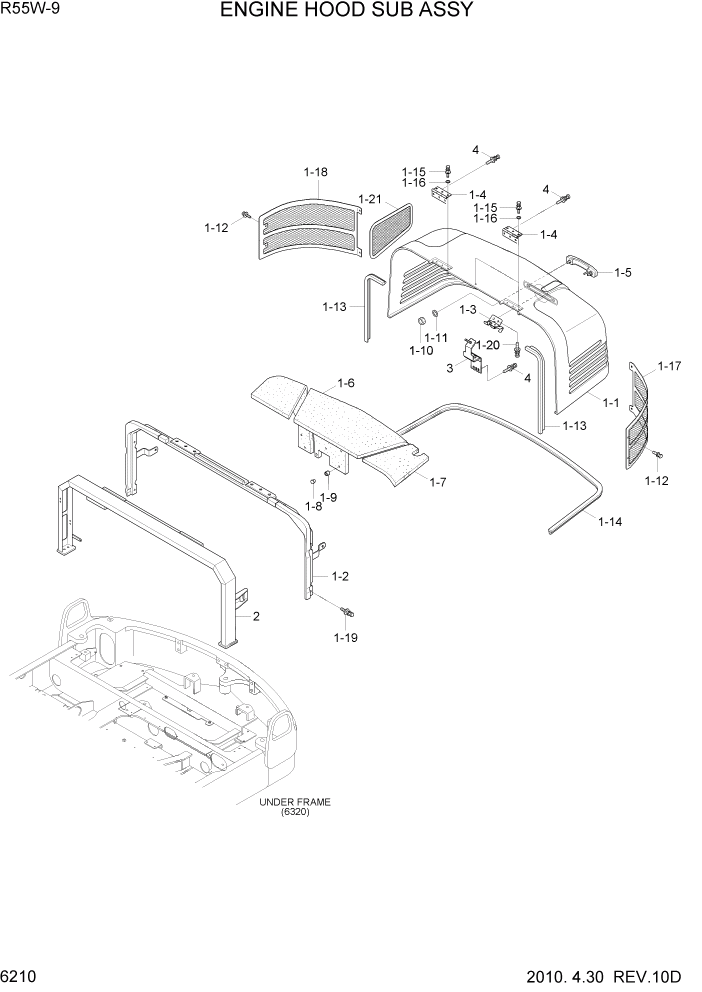

Запчасти Hyundai R55W-9 PAGE 6210 ENGINE HOOD SUB ASSY СТРУКТУРА

*-3

72M9-51001

ENGINE HOOD SUB ASSY

FAN CLUTCH

1шт.

*-3

71M9-71000

ENGINE HOOD SUB ASSY

BLOWER,TROPIC #1172

1шт.

1

71M9-51102

ENGINE HOOD ASSY

FAN CLUTCH

1шт.

1

71M9-71100

ENGINE HOOD ASSY

BLOWER,TROPIC #1172

1шт.

1-1

71M9-51112

ENGINE HOOD BODY

FAN CLUTCH

1шт.

1-1

71M9-71110

ENGINE HOOD BODY

BLOWER,TROPIC #1172

1шт.

1-2

71M9-51201

SUPPORT WA-ENG HOOD

1шт.

1-3

71M9-51300

LATCH ASSY

1шт.

1-4

72M9-51300

HINGE_ASSY

2шт.

1-5

71M9-51500

HANDLE ASSY

1шт.

1-6

71M9-51600

SPONGE(27T)

FAN CLUTCH

1шт.

1-6

71M9-71600

SPONGE

F/CLUTCH,TROPI #1172

1шт.

1-7

71M9-51700

AL"COATING SPONGE(27T)

1шт.

1-8

71M9-51800

CAP & BOLT-INSULATION

22шт.

1-9

71M9-51900

PIN-INSULATION

22шт.

1-1

S205-081006

NUT-HEX

2шт.

1-11

S403-085006

WASHER-PLAIN

2шт.

1-12

S035-082056

BOLT-W/WASHER

10шт.

1-13

S772-008500

WEATHER STRIP

2шт.

1-14

S771-025000

WEATHER STRIP

1шт.

1-15

S037-103556

BOLT-W/WASHER

7шт.

1-16

S403-105006

WASHER-PLAIN

7шт.

1-17

71M9-53101

WIRE NET ASST-RH

#1001

1шт.

1-18

71M9-53201

WIRE NET ASST-LH

#1001

1шт.

1-19

S035-081556

BOLT-W/WASHER

6шт.

1-2

S035-083056

BOLT-W/WASHER

2шт.

1-21

71M9-73100

WIRE NET ASSY

BLOWER,TROPIC #1172

1шт.

2

72M9-52100

SUPPORT WA-ENG HOOD

1шт.

3

71M9-51031

BRACKET ASSY-LATCH

1шт.

4

S037-102056

BOLT-W/WASHER

6шт.
