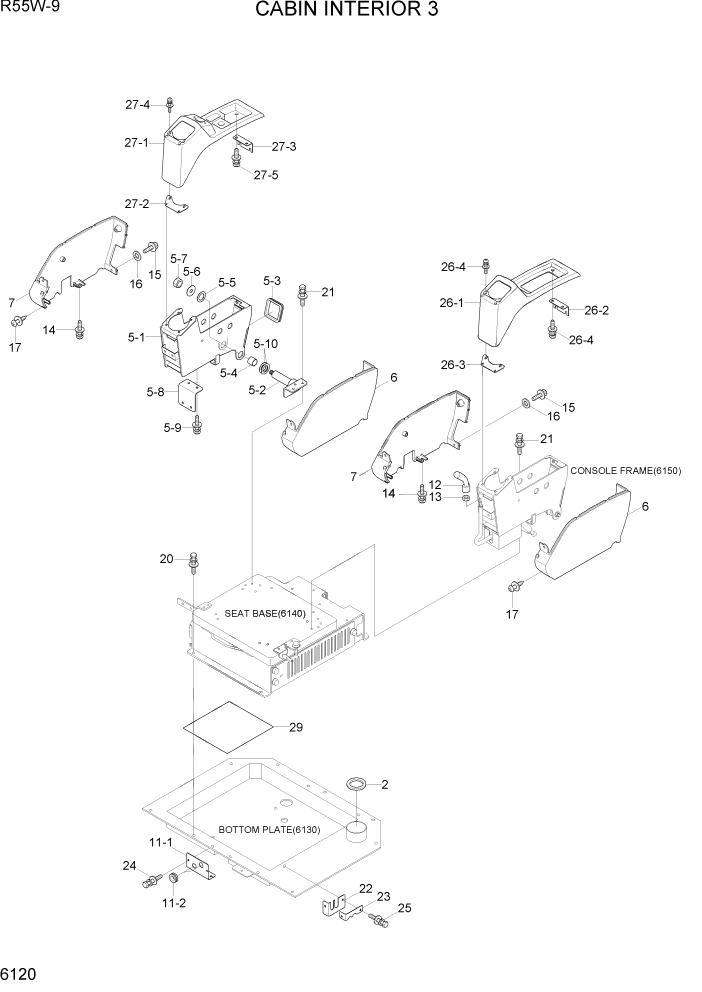

Запчасти Hyundai R55W-9 PAGE 6120 CABIN INTERIOR 3 СТРУКТУРА

*-1

71M9-25000

BOTTOM PLATE SUB ASSY

1шт.

2

71M9-23351

FILTER-SPONGE

1шт.

5

71M9-22602

FRAME ASSY-CONSOL, RH

1шт.

5-1

71M9-22612

FRAME WA-RH

1шт.

5-2

71M9-22161

BRACKET WA-CONSOL, RR

1шт.

5-3

71Q6-21420

GROMMET

1шт.

5-4

S731-020020

BUSHING-DU

2шт.

5-5

71Q6-22631

SHIM-CONSOLE

NOT SHOWN

1шт.

5-6

71M9-22210

SHIM-ROUND

1шт.

5-7

S275-12000B

NUT-SELF LOCKING

1шт.

5-8

71M9-22662

BRACKET-UNDER

1шт.

5-9

S035-081526

BOLT-W/WASHER

2шт.

5-1

71Q6-23080

SHIM-CONSOLE

3шт.

6

71M9-21011

CONSOLE LOW-LH

2шт.

7

71M9-21021

CONSOLE LOW-RH

2шт.

11

71M9-10771

COVER

1шт.

11-1

71M9-10712

PLATE-A/C COVER, LOWER

1шт.

11-2

S681-230400

GROMMET

2шт.

12

71M8-20750

KNOB-SAFETY LEVER

1шт.

13

S205-08100B

NUT-HEX

1шт.

14

S002-06015B

SCREW-TRUS HEAD

12шт.

15

S002-06010B

SCREW-TRUS HEAD

8шт.

16

S403-06500B

WASHER-PLAIN

4шт.

17

S151-040156

SCREW-TAPPING

2шт.

20

S037-102526

BOLT-W/WASHER

4шт.

21

S035-082526

BOLT-W/WASHER

13шт.

22

71M9-10721

PLATE-A/C COVER, LOWER

1шт.

23

71M9-10731

PLATE-A/C COVER, UPPER

1шт.

24

S035-061526

BOLT-W/WASHER

4шт.

25

S035-082026

BOLT-W/WASHER

2шт.

26

71M9-21241

CONSOLE ASSY-UP, LH

1шт.

26-1

71M9-21261

COVER-CONSOLE UP, LH

1шт.

26-2

71M9-21290

BRACKET

1шт.

26-3

71M9-22471

BRACKET

1шт.

26-4

S002-06010B

SCREW-TRUS HEAD

4шт.

27

71M9-21231

CONSOLE ASSY-UP, RH

1шт.

27-1

71M9-21251

COVER-CONSOLE UP, RH

1шт.

27-2

71M9-22471

BRACKET

1шт.

27-3

71M9-21270

BRACKET WA

1шт.

27-4

S002-06010B

SCREW-TRUS HEAD

2шт.

27-5

S002-06015B

SCREW-TRUS HEAD

2шт.

29

71M9-25400

PROTECTOR

3шт.
