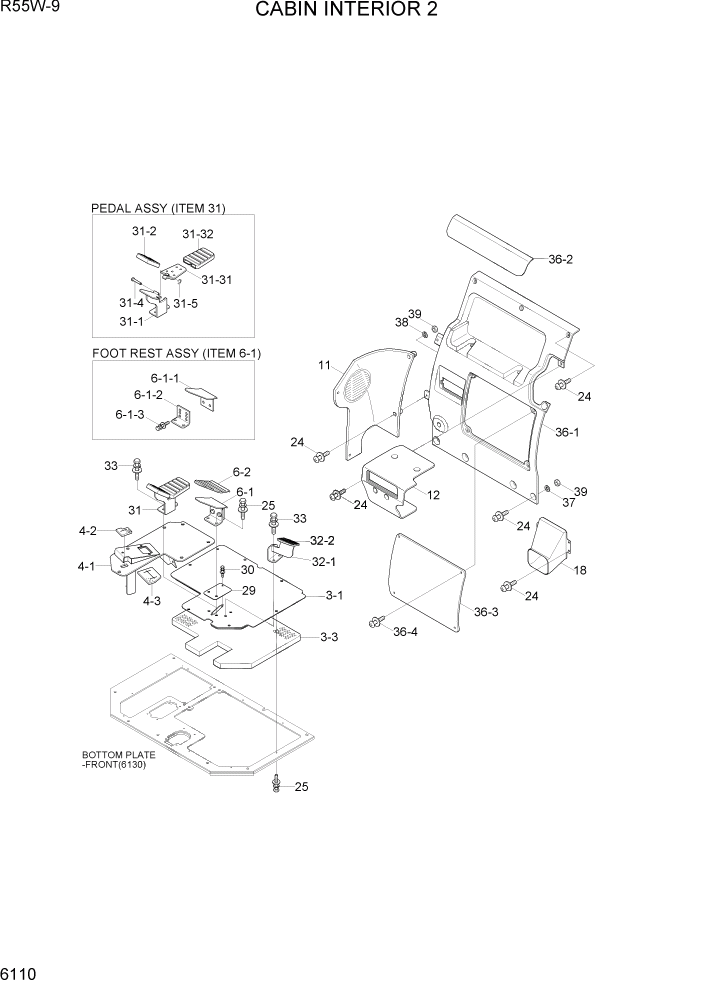

Запчасти Hyundai R55W-9 PAGE 6110 CABIN INTERIOR 2 СТРУКТУРА

3

72M9-10271

COVER ASSY-MCV

1шт.

3-1

72M9-10101

COVER WA

1шт.

3-2

72M9-10440

RUBBER-DAMPING

NOT SHOWN

1шт.

3-3

72M9-10280

SPONGE

1шт.

4

72M9-10291

COVER ASSY-T/JOINT

1шт.

4-1

72M9-10121

COVER WA-T/JOINT

1шт.

4-2

72M8-10300

SPONGE

1шт.

4-3

72M8-10310

SPONGE

1шт.

6

71M9-25530

FOOT REST ASSY-LH

SINGLE ACTING

1шт.

6-1

71M9-25481

FOOT REST ASSY-LH

1шт.

6-1-1

71M9-25530

FOOT REST ASSY-LH

1шт.

6-1-2

71M9-22722

BRACKET

1шт.

6-1-3

S035-082526

BOLT-W/WASHER

2шт.

6-2

71M9-23130

RUBBER-FOOT REST,LH

1шт.

11

71M9-21071

TRIM-SIDE,RH,LOW(2)

1шт.

12

71M9-21211

COVER-RADIO

1шт.

18

71M9-21170

DUCT-INLET

1шт.

24

S002-06015B

SCREW-TRUS HEAD

25шт.

25

S037-102526

BOLT-W/WASHER

34шт.

29

72M9-10431

COVER-PLATE

1шт.

31

71M9-23471

PEDAL ASSY(LH)

DOUBLE ACTING

1шт.

31-1

71M9-23491

PEDAL WA-LH

1шт.

31-2

71M9-23590

RUBBER-PEDAL, LH

1шт.

31-3

71M9-23611

PEDAL ASSY-LH,LOW

1шт.

31-31

71M9-23511

PEDAL WA-LH,LOW

1шт.

31-32

71M9-23600

RUBBER-LH,PEDAL

1шт.

31-4

73M8-10450

SHAFT

1шт.

31-5

P560-060002

RETAINING RING-E TYPE

1шт.

32

71M9-10621

FOOT REST ASSY-LH

DOUBLE ACTING

1шт.

32-1

71M9-10580

FOOT REST WA-LH

1шт.

32-2

FAC0600400

COVER-PEDAL

1шт.

33

S035-082026

BOLT-W/WASHER

4шт.

36

71M9-25460

REAR TRIM ASSY

1шт.

36-1

71M9-21121

TRIM-REAR,LOW

1шт.

36-2

71M9-21141

COVER-REAR TRAY

1шт.

36-3

71M9-21131

COVER-ELECTRIC

1шт.

36-4

S002-06015B

SCREW-TRUS HEAD

4шт.

37

S403-06500B

WASHER-PLAIN

4шт.

38

S403-06100B

WASHER-PLAIN

1шт.

39

S205-06100B

NUT-HEX

5шт.
