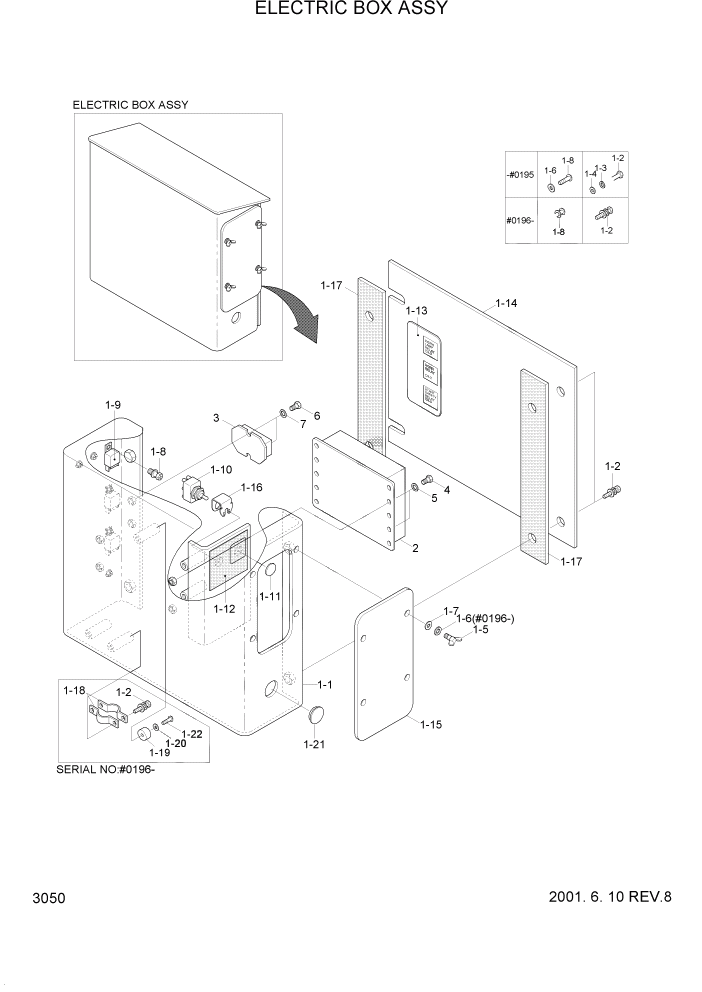

Запчасти Hyundai R160LC3 PAGE 3050 ELECTRIC BOX ASSY ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21EN-30101

ELECTRIC BOX ASSY

#0195

1шт.

1

21EN-30102

ELECTRIC BOX ASSY

#0196 - #0286

1шт.

1

21EN-30103

ELECTRIC BOX ASSY

#0287

1шт.

1-1

21EN-30111

ELECTRIC BOX WA

#0195

1шт.

1-1

21EN-30112

ELECTRIC BOX WA

#0196 - #0286

1шт.

1-1

21EN-30113

ELECTRIC BOX WA

#0287

1шт.

1-2

S015-080162

BOLT-HEX

#0195

4шт.

1-2

S033-082022

BOLT-W/WASHER

#0196

6шт.

1-3

S411-080002

WASHER-SPRING

#0195

4шт.

1-4

S403-080002

WASHER-PLAIN

#0195

4шт.

1-5

S091-060122

BOLT-WING

4шт.

1-6

S411-060002

WASHER-SPRING

4шт.

1-7

S403-061002

WASHER-PLAIN

#0195

4шт.

1-7

S402-062002

WASHER-PLAIN

#0196

4шт.

1-8

S161-060121

SCREW-CROSS R/ROUND

#0195

6шт.

1-8

S131-061252

SCREW-W/WASHER

#0196

6шт.

1-9

21E4-0011

RELAY-4P

3шт.

1-1

21EN-00331

SWITCH-TOGGLE

1шт.

1-11

21E7-0313

PLUG-HOLE BLANK

#0195

1шт.

1-12

21EN-00401

DECAL

#0195

1шт.

1-12

21EN-00402

DECAL

#0196

1шт.

1-13

21EN-00411

DECAL-RELAY

1шт.

1-14

21EN-30141

COVER-FRONT

#0195

1шт.

1-14

21EN-30142

COVER-FRONT

#0196

1шт.

1-15

21EN-30121

COVER-SIDE

1шт.

1-16

21EN-00350

SECURITY CAP ASSY

1шт.

1-17

21EA-50150

RUBBER PAD

2шт.

1-18

21EA-30390

CLAMP

#0196 - #0286

2шт.

1-18

21EN-30180

CLAMP

#0287

2шт.

1-19

21L7-00190

MOUNTS-TIE

#0196

4шт.

1-2

S401-042002

WASHER-PLAIN

#0196

4шт.

1-21

S661-030900

CAP-RUBBER

#0196

1шт.

1-22

S161-050102

SCREW-CROSS R/ROUND

#0196 - #0286

4шт.

1-22

S161-050082

SCREW-CROSS R/ROUND

#0287

4шт.

2

21EG-32111

CPU CONTROLLER

#0415

1шт.

2

21EG-32112

CPU CONTROLLER

#0416

1шт.

2-1

21EG-32131

EP-ROM

NOT SHOWN #0415

1шт.

2-1

21EG-32132

EP-ROM

NOT SHOWN #0416

1шт.

3

21E7-2000

PROLIX RESISTOR

1шт.

4

S015-080202

BOLT-HEX

4шт.

5

S411-080002

WASHER-SPRING

4шт.

6

S161-060162

SCREW

2шт.

7

S411-060002

WASHER-SPRING

2шт.
