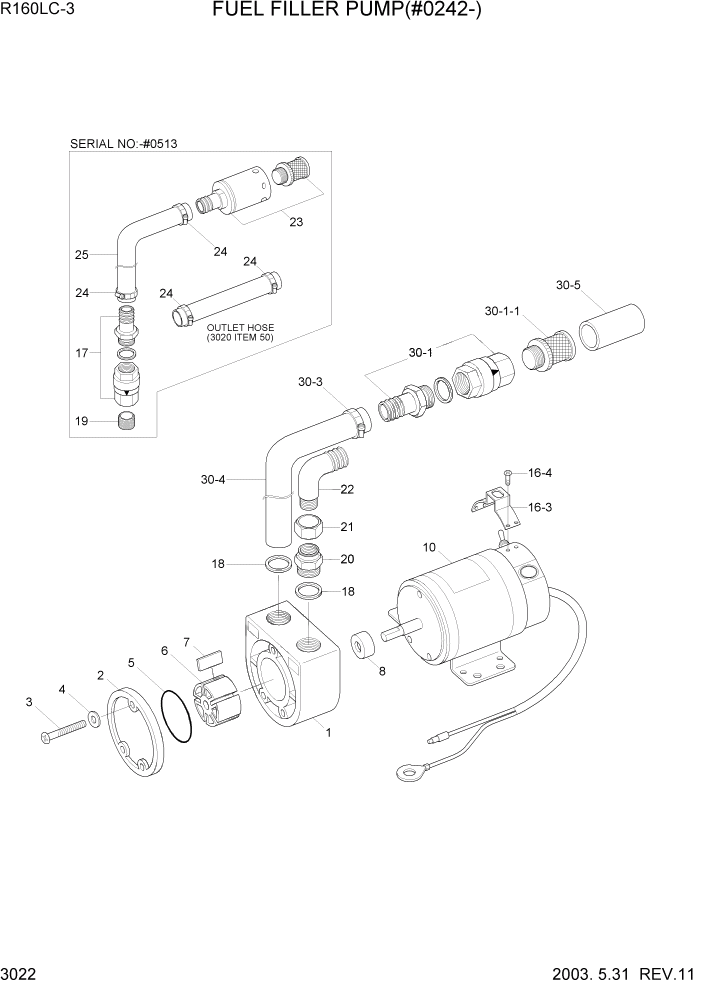

Запчасти Hyundai R160LC3 PAGE 3022 FUEL FILLER PUMP(#0242-) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

21EM-45030

FUEL FILLER PUMP ASSY

SEE 3021 #0242

1шт.

*-1

21EM-45040

PUMP & MOTOR ASSY

#0343

1шт.

*-1

21EM-45041

PUMP & MOTOR ASSY

#0344 - #0513

1шт.

*-1

21EM-45042

PUMP & MOTOR ASSY

#0514

1шт.

N1

@

BODY

NOT

1шт.

N2

@

COVER

NOT

1шт.

N3

@

SCREW

NOT

3шт.

N4

@

WASHER-SPRING

NOT

3шт.

K5

21EM-45050

O-RING

1шт.

K6

21EM-45060

ROTOR

1шт.

K7

21EM-45070

PLATE-VANE

5шт.

K8

21EM-45080

SEAL-OIL

1шт.

N10

@

HOUSING-MOTOR

NOT

1шт.

N16

21EM-45100

BOX-SWITCH

NOT #0242

1шт.

16-3

21EM-45300

COVER-SWITCH

1шт.

16-4

S161-050166

SCREW-CROSS R/ROUND

4шт.

17

21EM-45400

CHECK VALVE ASSY

#0513

1шт.

18

21EM-45500

WASHER-AL

2шт.

19

21EM-45600

FITTING

#0513

1шт.

20

21EM-45700

FITTING

1шт.

21

21EM-45800

NUT-ELBOW

1шт.

22

21EM-45900

ELBOW

1шт.

23

21EM-46000

STRAINER ASSY

#0513

1шт.

24

S520-027000

CLAMP-HOSE

#0242 - #0513

4шт.

25

21EM-46100

HOSE-INLET

#0343

1шт.

25

21EM-46101

HOSE

#0344 - #0513

1шт.

30

21EM-46400

HOSE ASSY

#0514

1шт.

30-1

21M5-50260

VALVE-CHECK

#0514

1шт.

30-1-1

2P1-SP-01

STRAINER ASSY

#0514

1шт.

30-3

S520-027000

CLAMP-HOSE

#0514

1шт.

30-4

21EM-46101

HOSE

#0514

1шт.

30-5

21EM-46300

CAP ASSY

#0514

1шт.

K

21EM-46200

SERVICE KIT

SEE ILLUST #0513

1шт.

K

21EM-46201

SERVICE KIT

SEE ILLUST #0514

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
