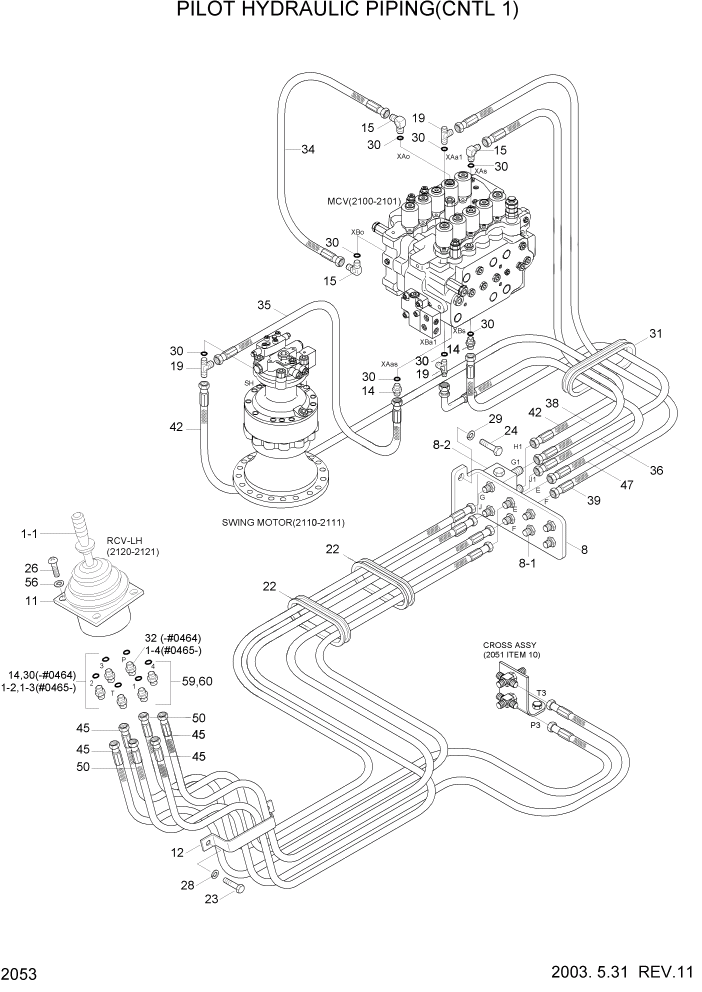

Запчасти Hyundai R160LC3 PAGE 2053 PILOT HYDRAULIC PIPING(CNTL 1) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31ER-20160

RCV SUB ASSY-LH

#0465 - #0493

1шт.

1

31ER-20200

RCV SUB ASSY-LH

#0494

1шт.

1-1

@

RCV LEVER

NOT #0465

1шт.

1-2

P010-110002

CONNECTOR

#0465

5шт.

1-3

S631-011004

O-RING

#0465

6шт.

1-4

31EK-20100

FILTER-LAST GUARD

#0465

1шт.

8

31EG-20060

TERMINAL ASSY

1шт.

8-1

31E4-3033

CONNECTOR-2NUT

#0001

1шт.

8-2

31EK-20310

SHUTTLE-5 PORT

#0001

1шт.

11

31E9-20030

SPACER-RCV LEVER

#0206

1шт.

12

31E6-20020

CLAMP-HOSE

1шт.

14

P010-110002

CONNECTOR

STD #0464

7шт.

14

P010-110002

CONNECTOR

STD #0465

2шт.

14

P010-110002

CONNECTOR

EU ONLY #0392

2шт.

15

P020-110001

ELBOW-90

3шт.

19

P320-040404

TEE-RUN TYPE

3шт.

22

S760-031500

GROMMET

2шт.

23

S015-080162

BOLT-HEX

#0001

2шт.

24

S017-100162

BOLT-HEX

2шт.

26

9327289-06

BOLT-BUTTON HEAD

#0206

4шт.

26

S175-060256

BOLT-HEX RD HD

STD #0207

4шт.

26

S175-060306

BOLT-HEX,RD HD

EU ONLY #0392

4шт.

28

S403-082002

WASHER-PLAIN

#0001

2шт.

29

S411-100002

WASHER-SPRING

2шт.

30

S631-011004

O-RING

STD #0464

14шт.

30

S631-011004

O-RING

STD #0465

8шт.

30

S631-011004

O-RING

EU ONLY #0392

8шт.

31

S760-082012

GROMMET

2шт.

32

31EK-20100

FILTER-LAST GUARD

STD #0464

1шт.

32

31EK-20100

FILTER-LAST GUARD

EU ONLY #0392

1шт.

34

P400-042012

HOSE ASSY-COMPACT

1шт.

35

P400-042014

HOSE ASSY-COMPACT

1шт.

36

P400-042015

HOSE ASSY-COMPACT

1шт.

38

P400-042021

HOSE ASSY-COMPACT

1шт.

39

P400-042023

HOSE ASSY-COMPACT

1шт.

42

P410-042024

HOSE ASSY-COMP 0X45

1шт.

45

P410-042041

HOSE ASSY-COMP 0X45

4шт.

47

P420-042015

HOSE ASSY-COMP 0X90

1шт.

50

P410-042025

HOSE ASSY-COMP 0X45

2шт.

56

S403-062006

WASHER-PLAIN

#0207

4шт.

59

P010-110013

CONNECTOR

EU ONLY #0392

5шт.

60

S631-014004

O-RING

EU ONLY #0392

6шт.
