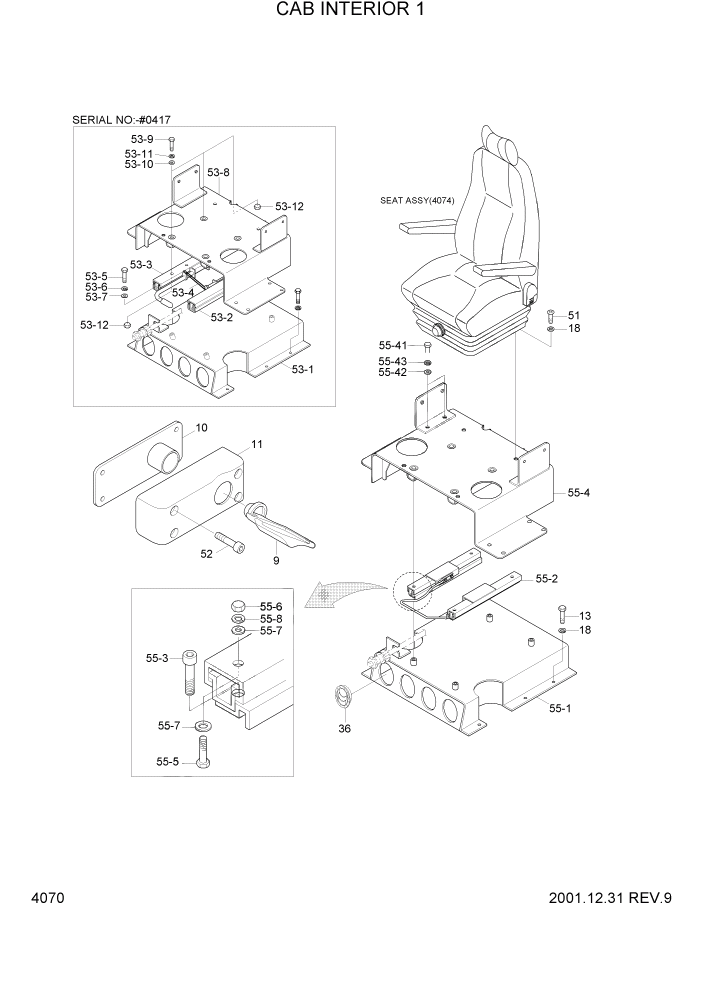

Запчасти Hyundai R160LC3 PAGE 4070 CAB INTERIOR 1 ВЕРХНЯЯ ЧАСТЬ

9

71EM-20241

SUPPORT-CLUSTER

1шт.

10

71EM-20250

BRACKET-CLUSTER

1шт.

11

71EM-20260

COVER-CLUSTER

1шт.

13

S015-080256

BOLT-HEX

#0001

6шт.

18

S411-080006

WASHER-SPRING

#0001

10шт.

36

71EM-28010

AIR VENT

4шт.

51

S161-080256

SCREW

#0001

4шт.

52

S105-080756

BOLT-SOCKET

#0001

4шт.

53

71EM-20460

SEAT BASE ASSY

STD #0417

1шт.

53

71EM-20510

SEAT BASE ASSY

W/O AC & HT #0417

1шт.

53-1

@

SEAT BASE-LOWER

NOT #0417

1шт.

53-2

@

SEAT RAIL-LH

NOT #0417

1шт.

53-3

@

SEAT RAIL-RH

NOT #0417

1шт.

53-4

@

BAR-RELEASE

NOT #0417

1шт.

53-5

S161-080166

SCREW

#0417

4шт.

53-6

S403-082006

WASHER-PLAIN

#0417

4шт.

53-7

S411-080006

WASHER-SPRING

#0417

4шт.

53-8

@

SEAT BASE-UPPER

NOT #0417

1шт.

53-9

S015-060206

BOLT-HEX

#0417

4шт.

53-1

S403-062006

WASHER-PLAIN

#0417

4шт.

53-11

S411-060006

WASHER-SPRING

#0417

6шт.

53-12

S205-061006

NUT-HEX

#0417

4шт.

55

71EM-20461

SEAT BASE ASSY

STD #0418

1шт.

55

71EM-20511

SEAT BASE ASSY

W/O AC & HT #0418

1шт.

55-1

71EM-20291

SEAT BASE-LOWER

STD #0418

1шт.

55-1

71EM-20521

SEAT BASE-LOWER

W/O AC & HT #0418

1шт.

55-2

71EM-20600

SEAT RAIL ASSY

#0418

1шт.

55-3

S109-080306

BOLT-SOCKET

#0418

4шт.

55-4

71EM-20301

SEAT BASE-UPPER

#0418

1шт.

55-41

S015-080252

BOLT-HEX

#0418

4шт.

55-42

S015-080252

BOLT-HEX

#0418

4шт.

55-43

S411-080002

WASHER-SPRING

#0418

4шт.

55-5

S015-080256

BOLT-HEX

#0418

4шт.

55-6

S205-081006

NUT-HEX

#0418

4шт.

55-7

S403-082006

WASHER-PLAIN

#0418

8шт.

55-8

S411-080006

WASHER-SPRING

#0418

4шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
