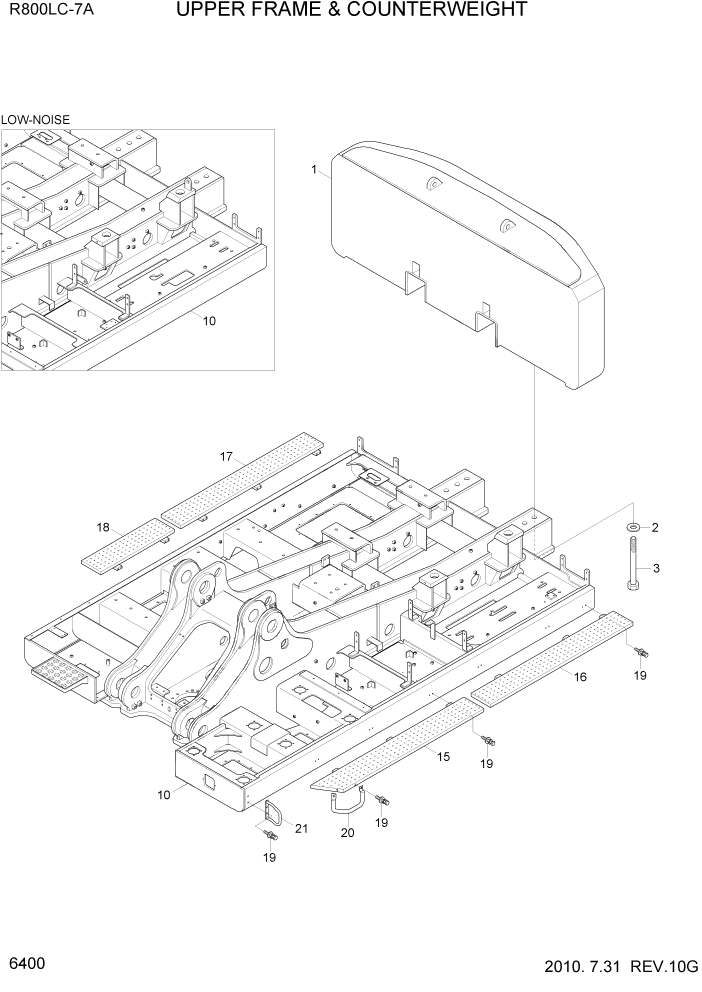

Запчасти Hyundai R800LC7A PAGE 6400 UPPER FRAME & COUNTERWEIGHT СТРУКТУРА

1

41ND-20021

COUNTERWEIGHT WA

12.5TON, STD

1шт.

1

41ND-22010

COUNTERWEIGHT WA

15.5T, L/REACH #0024

1шт.

2

41ND-20230

SPACER

6шт.

3

41ND-20240

BOLT-HEX

6шт.

10

41ND-00012

UPPER FRAME WA

1шт.

10

41ND-70011

UPPER FRAME WA

LOW NOISE #0035

1шт.

10

43ND-70010

UPPER FRAME WA

CAB RISER #0021

1шт.

15

41ND-60010

SUPPORT PLATE WA-LH

1шт.

16

41ND-60090

SUPPORT PLATE WA-LH

1шт.

17

41ND-60130

SUPPORT PLATE WA-RH

1шт.

18

41ND-60160

SUPPORT PLATE WA-RH

1шт.

19

S037-123556

BOLT-W/WASHER

26шт.

20

41ND-60201

PIPE WA

1шт.

21

41ND-60211

PIPE WA

1шт.
