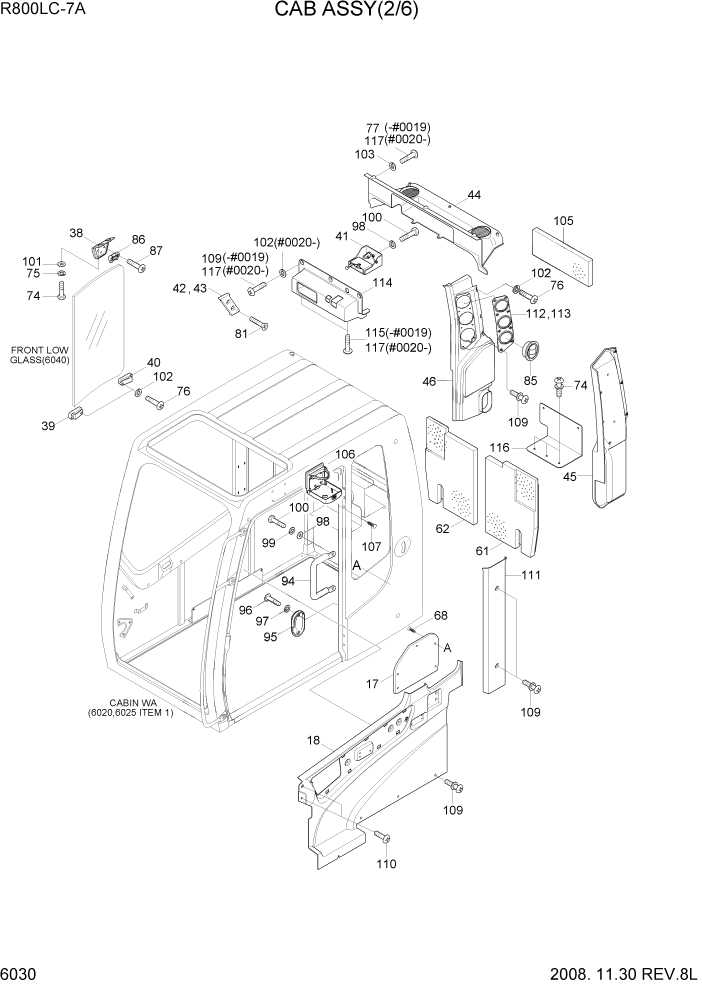

Запчасти Hyundai R800LC7A PAGE 6030 CAB ASSY(2/6) СТРУКТУРА

17

71N6-02790

WALL TRIM-LH

1шт.

18

76N6-02800

WALL TRIM-RH

1шт.

38

71N6-03061

HOLDER

1шт.

39

71N6-03071

HOLDER

1шт.

40

71N6-03081

HOLDER

1шт.

41

71N6-03091

LATCH ASSY

1шт.

42

71N6-03101

STOPPER-LH

1шт.

43

71N6-03111

STOPPER-RH

1шт.

44

73N6-20060

SPEAKER COVER

1шт.

45

76N6-03130

DUCT ASSY-LH

1шт.

46

76N6-03140

DUCT ASSY-RH

1шт.

61

71N6-03210

INSULATION FOAM

1шт.

62

71N6-03220

INSULATION FOAM

1шт.

68

E171-1310

PLUG-HEADLINER

5шт.

74

S035-082026

BOLT-W/WASHER

#0019

2шт.

74

S035-082026

BOLT-W/WASHER

#0020

5шт.

75

S411-080006

WASHER-SPRING

2шт.

76

S161-060206

SCREW-CROSS R/ROUND

12шт.

77

S161-060166

SCREW-CROSS ROUND

#0019

11шт.

77

S161-060166

SCREW-CROSS ROUND

#0020

5шт.

81

S141-060206

SCREW-FLAT HD

4шт.

85

71N6-03300

AIR VENT

6шт.

86

71N6-03311

HOLDER

1шт.

87

S161-080256

SCREW-CROSS R/ROUND

3шт.

94

71N6-20341

RAIL-HAND

1шт.

95

71N6-03601

COVER-BACK LATCH

1шт.

96

S161-050166

SCREW-CROSS R/ROUND

2шт.

97

S411-050006

WASHER-SPRING

2шт.

98

S411-100006

WASHER-SPRING

5шт.

99

S403-102006

WASHER-PLAIN

2шт.

100

S017-100206

BOLT-HEXAGON HEAD

5шт.

101

S403-082006

WASHER-PLAIN

2шт.

102

S403-06200B

WASHER-PLAIN

#0019

22шт.

102

S403-06200B

WASHER-PLAIN

#0020

25шт.

103

S411-060006

WASHER-SPRING

10шт.

105

71N6-03660

SPONGE

1шт.

106

71M8-20870

HOLDER-CUP

1шт.

107

S141-040166

SCREW-FLAT HD

4шт.

109

S132-061256

SCREW-W/WASHER

27шт.

110

S151-050126

SCREW-TAPPING

#0007

1шт.

110

S151-050126

SCREW-TAPPING

#0008

2шт.

111

73N6-20050

PILLAR COVER-RH

1шт.

112

73N6-20220

REAR DUCT COVER-LH

1шт.

113

73N6-20210

REAR DUCT COVER-RH

1шт.

114

73N6-20070

RADIO COVER

1шт.

115

76N6-03160

FASTENER ASSY

#0019

2шт.

116

76N6-00021

BRACKET

#0020

1шт.

117

S002-06015B

SCREW-TRUS HEAD

#0020

11шт.
