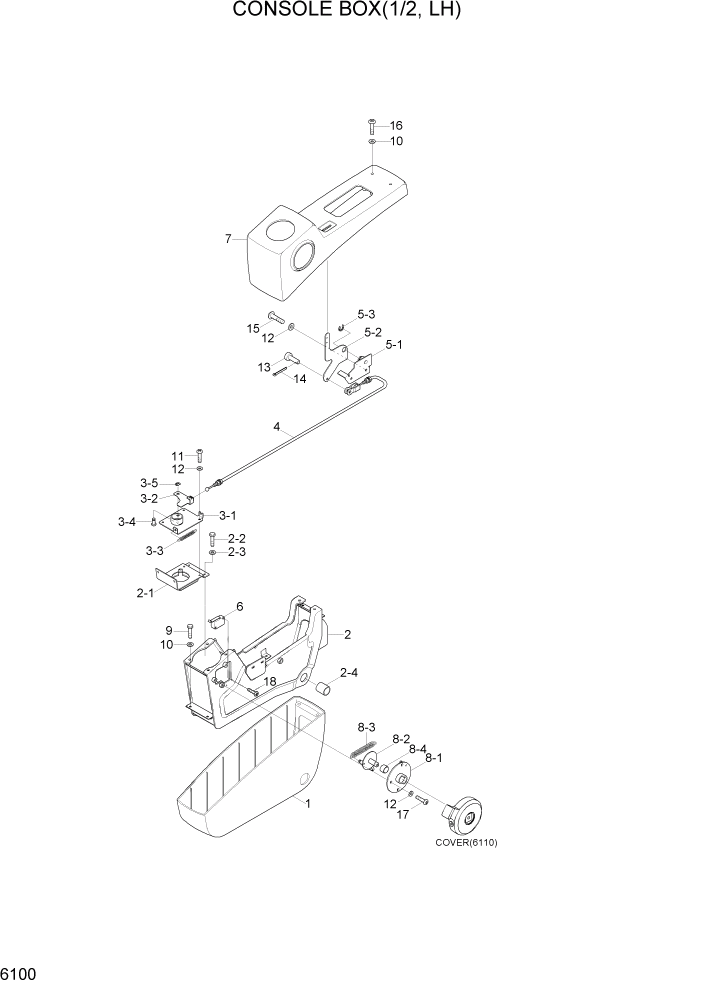

Запчасти Hyundai R500LC7 PAGE 6100 CONSOLE BOX(1/2, LH) СТРУКТУРА

*

71N6-20430

CONSOLE BOX ASSY-LH

1шт.

1

71N6-20071

CONSOLE BOX-LOW

1шт.

2

71N6-20051

C/BOX FRAME WA-LH

1шт.

2-1

71N6-21320

BRACKET-TILT

1шт.

2-2

S015-060146

BOLT-HEX

4шт.

2-3

S403-062006

WASHER-PLAIN

4шт.

2-4

S731-020025

BUSHING-DU

2шт.

3

71N6-20091

TILT CATCH ASSY

1шт.

3-1

71N6-21420

TILT CATCH-LOW

1шт.

3-2

71N6-21451

TILT CATCH-UP

1шт.

3-3

71N6-21460

SPRING

1шт.

3-4

71N6-21470

PIN

1шт.

3-5

P560-090002

RETAINING RING-E TYPE

1шт.

4

71N6-20100

CABLE-PULL

1шт.

5

71N6-20120

TILT LEVER ASSY

1шт.

5-1

71N6-21480

BRACKET-LOW

1шт.

5-2

71N6-21510

BRACKET-UP

1шт.

5-3

P560-100006

RETAINING RING-E TYPE

1шт.

6

21N8-20300

SWITCH-MICRO

1шт.

7

71N6-20131

CONSOLE BOX-UP(LH)

1шт.

8

71N6-20141

SAFETY BRACKET ASSY

1шт.

8-1

71N6-21521

BRACKET-LOW

1шт.

8-2

71N6-21560

BRACKET-UP

1шт.

8-3

71N6-21610

SPRING

1шт.

8-4

S731-020010

BUSHING-DU

1шт.

9

S015-050206

BOLT-HEX

4шт.

10

S403-052006

WASHER-PLAIN

8шт.

11

S161-060136

SCREW-CROSS R/ROUND

4шт.

12

S403-062006

WASHER-PLAIN

9шт.

13

S491-060156

PIN-CLEVIS

1шт.

14

S461-080202

PIN-SPLIT

1шт.

15

S161-060166

SCREW-CROSS ROUND

2шт.

16

S161-050166

SCREW-CROSS R/ROUND

4шт.

17

S175-060162

SCREW-SOCKET RD HD

3шт.

18

S161-030162

SCREW-CROSS R/ROUND

2шт.
