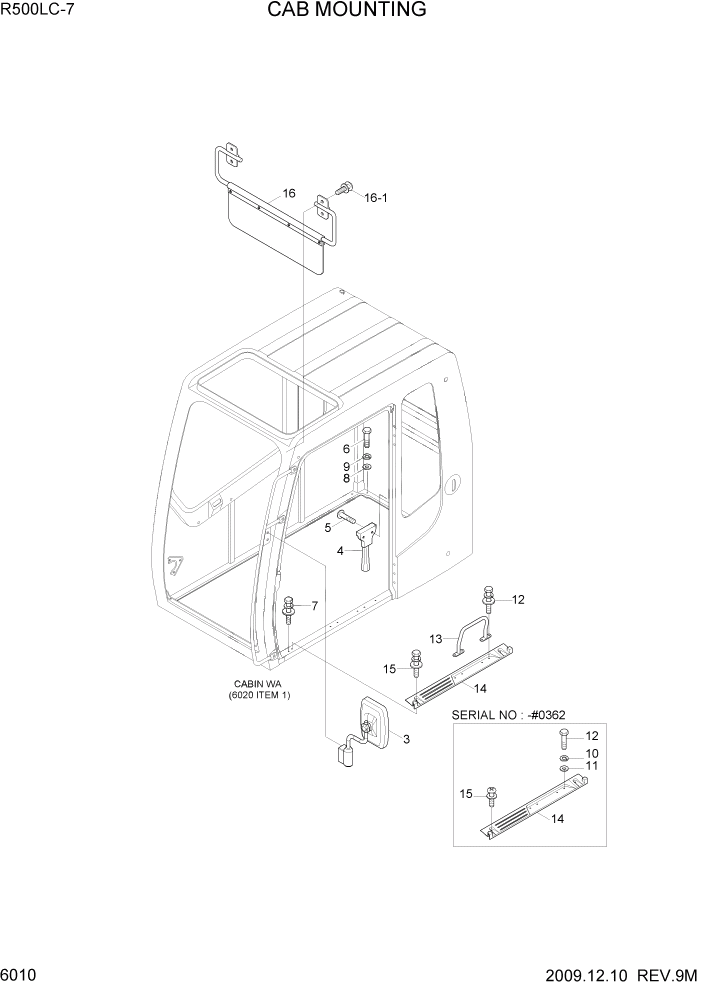

Запчасти Hyundai R500LC7 PAGE 6010 CAB MOUNTING СТРУКТУРА

3

71N8-47000

MIRROR & STAY ASSY-LH

#0166

1шт.

3

71N8-47000BG

MIRROR & STAY ASSY-LH

#0167 - #0228

1шт.

3

71N8-47001BG

MIRROR & STAY ASSY-LH

#0229

1шт.

3

71N8-47000

MIRROR & STAY ASSY-LH

#0166

1шт.

3

71N8-47000BG

MIRROR & STAY ASSY-LH

#0167 - #0228

1шт.

3

71N8-47001BG

MIRROR & STAY ASSY-LH

#0229

1шт.

3

71N8-47000BG

MIRROR & STAY ASSY-LH

OPT-UPGRADE CAB #0161 - #0228

1шт.

3

71N8-47001BG

MIRROR & STAY ASSY-LH

#0229

1шт.

4

71E1-60340

HAMMER-SAFETY

1шт.

5

S141-040166

SCREW-FLAT HD

2шт.

3-1

71N8-47100

MIRROR

#0228

1шт.

3-1

71N8-47101

MIRROR

#0229

1шт.

7

S037-122526

BOLT-W/WASHER

1шт.

8

S403-122006

WASHER-PLAIN

8шт.

3-2

71N8-47200

STAY ASSY-LH

#0166

1шт.

3-2

71N8-47200BG

STAY ASSY

#0167

1шт.

3

71N8-47000BG

MIRROR & STAY ASSY-LH

OPT-UPGRADE CAB #0161 - #0228

1шт.

3

71N8-47001BG

MIRROR & STAY ASSY-LH

OPT-UPGRADE CAB #0229

1шт.

3-1

71N8-47100

MIRROR

OPT-UPGRADE CAB #0228

1шт.

3-1

71N8-47101

MIRROR

OPT-UPGRADE CAB #0229

1шт.

3-2

71N8-47200

STAY ASSY-LH

OPT-UPGRADE CAB #0166

1шт.

3-2

71N8-47200BG

STAY ASSY

OPT-UPGRADE CAB #0167

1шт.

4

71E1-60340

HAMMER-SAFETY

1шт.

5

S141-040166

SCREW-FLAT HD

2шт.

6

S017-120656

BOLT-HEX

8шт.

15

S131-051646

SCREW-W/WASHER

2шт.

7

S037-122526

BOLT-W/WASHER

1шт.

8

S403-122006

WASHER-PLAIN

8шт.

9

S411-120006

WASHER-SPRING

8шт.

10

S411-100006

WASHER-SPRING

#0362

4шт.

11

S403-102006

WASHER-PLAIN

#0362

4шт.

12

S017-100256

BOLT-HEX

#0362

4шт.

12

S037-102526

BOLT-W/WASHER

#0363

4шт.

13

71N6-03560

RAIL-HAND

1шт.

14

71N6-10270

PLATE

#0362

1шт.

14

71N6-10271

PLATE

#0363

1шт.

15

S131-051646

SCREW-W/WASHER

#0362

2шт.

15

S037-101526

BOLT-W/WASHER

#0363

2шт.

16

71N6-03632

SUN VISOR ASSY

1шт.

16-1

S132-060856

SCREW-W/WASHER

4шт.

16

71N6-03632

SUN VISOR ASSY

1шт.

16-1

S132-060856

SCREW-W/WASHER

4шт.
