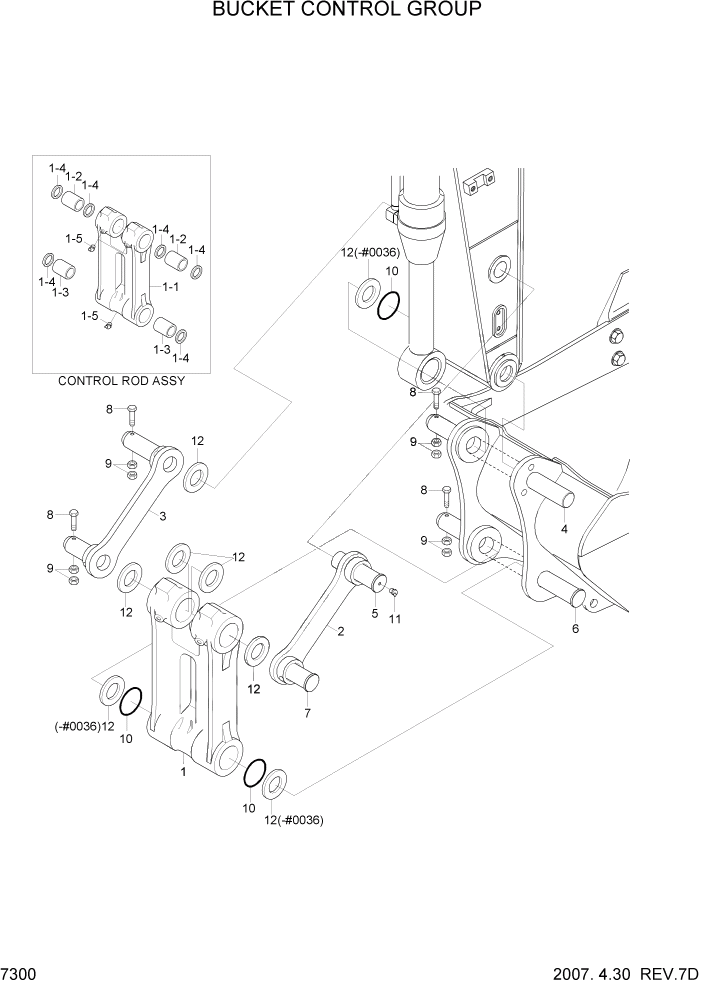

Запчасти Hyundai R450LC7A PAGE 7300 BUCKET CONTROL GROUP РАБОЧЕЕ ОБОРУДОВАНИЕ

1

61NB-40010

CONTROL ROD ASSY

#0125

1шт.

1

61NB-40010BG

CONTROL ROD ASSY

#0126

1шт.

1-1

61NB-40090

CONTROL ROD

#0125

1шт.

1-1

61NB-40090BG

CONTROL ROD

#0126

1шт.

1-2

61EN-15100

BUSHING

2шт.

1-3

61EN-13350

BUSHING

2шт.

1-4

S700-100208

SEAL-DUST

6шт.

1-5

S651-810002

NIPPLE-GREASE

3шт.

2

61NB-40101

CONTROL LINK-LH

#0125

1шт.

2

61NB-40101BG

CONTROL LINK-LH

#0126

1шт.

3

61NB-40031

CONTROL LINK-RH

#0125

1шт.

3

61NB-40031BG

CONTROL LINK-RH

#0126

1шт.

4

61NB-40052

PIN

1шт.

4

61NB-40052-AS

PIN

FOR AS ONLY #0001

1шт.

5

61NB-40060

PIN

#0092

1шт.

5

61NB-40061

PIN

#0093

1шт.

5

61NB-40061-AS

PIN

FOR AS ONLY #0001

1шт.

6

61NB-40072

PIN

1шт.

6

61NB-40072-AS

PIN

FOR AS ONLY #0001

1шт.

7

61NB-40081

PIN

1шт.

7

61NB-40081-AS

PIN

FOR AS ONLY #0001

1шт.

8

S017-242006

BOLT-HEX

4шт.

9

S205-24100B

NUT-HEX

8шт.

10

E161-3054

O-RING

4шт.

11

S651-810002

NIPPLE-GREASE

1шт.

12

S391-100165

SHIM-ROUND(1.0T)

#0036

8шт.

12

S391-100165

SHIM-ROUND(1.0T)

#0037

4шт.
