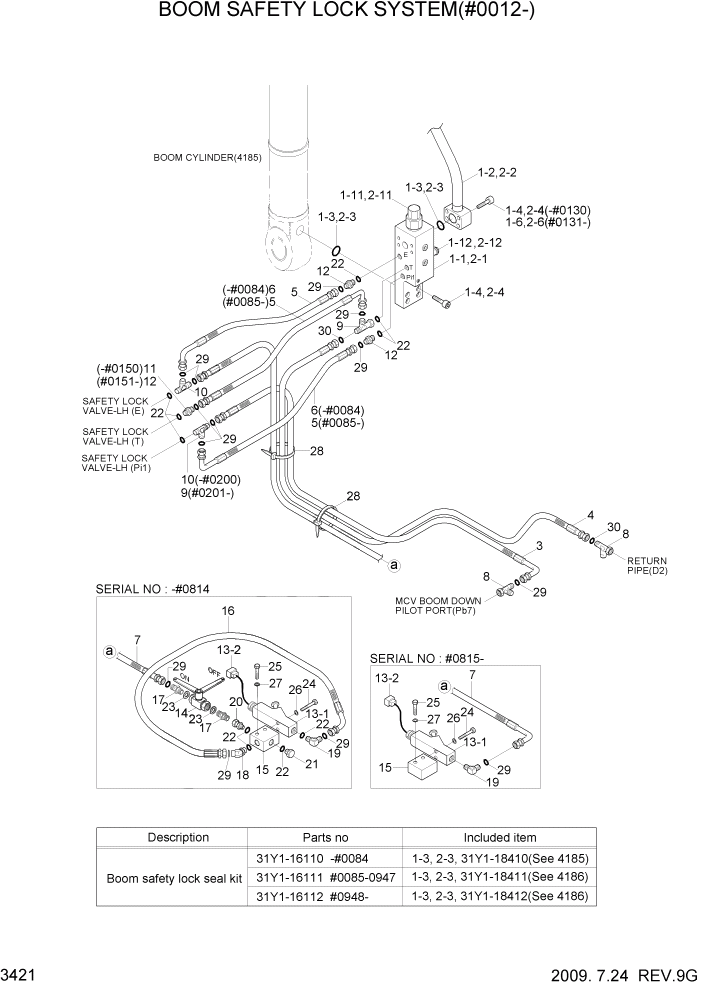

Запчасти Hyundai R450LC7 PAGE 3421 BOOM SAFETY LOCK SYSTEM(#0012-) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

BOOM SAFETY LOCK SYS

NOT #0012

1шт.

*-1

31NB-52310

BOOM CYL ASSY-LH

#0022

1шт.

*-1

31NB-52221

CYLINDER ASS'Y V/V,LH

#0023 - #0130

1шт.

*-1

31NB-52222

CYLINDER ASS'Y V/V,LH

#0131 - #0832

1шт.

*-1

31NB-52223

CYLINDER ASS'Y V/V,LH

#0833

1шт.

*-1

31NB-52221

BOOM CYL ASSY-LH

#0023 - #0130

1шт.

*-1

31NB-52222

BOOM CYL ASSY-LH

#0131 - #0832

1шт.

1-1

31NA-90580

VALVE-SAFETY LOCK

#0765

1шт.

1-11

41143039960000

RELIFE VALVE

#0012 - #0764

1шт.

1-12

110418005000000

CAP

#0012 - #0764

1шт.

1-13

K84785037301030

SEAL KIT

NOT SHOWN #0012 - #0764

1шт.

1-2

31Y1-21320

PIPE ASSY-BV,LH

#0022

1шт.

1-2

31Y1-20471

PIPE ASSY-BV,LH

#0023 - #0130

1шт.

1-2

31Y1-22000

PIPE ASSY-BV,LH

#0131

1шт.

K1-3

Y171-024004

O-RING

2шт.

1-4

S107-120556

BOLT-SOCKET

#0130

8шт.

1-4

S107-120556

BOLT-SOCKET

#0131

4шт.

1-5

@

BAND ASSY-LH

NOT

1шт.

1-6

S107-120606

BOLT-SOCKET

#0131

4шт.

*-2

31NB-52320

CYLINDER ASS'Y V/V,RH

#0022

1шт.

*-2

31NB-52231

CYLINDER ASS'Y V/V,RH

#0023 - #0130

1шт.

*-2

31NB-52232

CYLINDER ASS'Y V/V,RH

#0131 - #0832

1шт.

*-2

31NB-52233

CYLINDER ASS'Y V/V,RH

#0833

1шт.

2

@

BOOM CYL SUB

NOT

1шт.

2-1

31NA-95010

VALVE-SAFETY LOCK

#0012 - #0764

1шт.

2-1

31NA-90580

VALVE-SAFETY LOCK

#0765

1шт.

2-11

41143039960000

RELIFE VALVE

#0012 - #0764

1шт.

2-12

110418005000000

CAP

#0012 - #0764

1шт.

2-13

K84785037301030

SEAL KIT

NOT SHOWN #0012 - #0764

1шт.

2-2

31Y1-21330

PIPE ASSY-BV,RH

#0022

1шт.

2-2

31Y1-20481

PIPE ASSY-BV,RH

#0023 - #0130

1шт.

2-2

31Y1-22010

PIPE ASSY-BV,RH

#0131

1шт.

K2-3

Y171-024004

O-RING

2шт.

2-4

S107-120556

BOLT-SOCKET

#0130

8шт.

2-4

S107-120556

BOLT-SOCKET

#0131

4шт.

2-5

@

BAND ASSY-RH

NOT

1шт.

2-6

S107-120606

BOLT-SOCKET

#0131

4шт.

*-1

31NB-52223

BOOM CYL ASSY-LH

#0833 - #0947

1шт.

*-1

31NB-52224

BOOM CYL ASSY-LH

#0948

1шт.

3

P930-062058

HOSE ASSY-ORFS 0X90

#0221

1шт.

1

@

BOOM CYL SUB

NOT

1шт.

4

P860-062063

HOSE ASSY-SYN 0X90

#0151 - #0220

1шт.

4

P930-062063

HOSE ASSY-ORFS,THD(0X90)

#0221

1шт.

1-1

31NA-95010

VALVE-SAFETY LOCK

#0012 - #0764

1шт.

5

P620-047016

HOSE ASSY-THD 0X90

#0085 - #0150

3шт.

5

P620-047014

HOSE ASSY-THD 0X90

#0151 - #0220

3шт.

5

P930-047014

HOSE ASSY-ORFS 0X90

#0221

3шт.

1-1

31NA-90580

VALVE-SAFETY LOCK

#0765 - #0947

1шт.

1-1

31NA-95010

VALVE-SAFETY LOCK

#0948

1шт.

1-11

41143039960000

RELIFE VALVE

#0012 - #0764

1шт.

7

P913-047020

HOSE ASSY-ORFS 0X0

#0221 - #0814

1шт.

7

P933-047024

HOSE ASSY-ORFS 0X90

#0815

1шт.

1-11

DRV-100A

RELIEF VALVE

#0765 - #0947

1шт.

8

31EG-90540

TEE-R/TYPE,S/NUT

#0151 - #0220

2шт.

8

X840-525252

TEE-R/TYPE,SWIVEL,ORFS

#0221

2шт.

1-12

110418005000000

CAP

#0012 - #0764

1шт.

9

31N9-90550

TEE-R/TYPE,ORFS

#0221

2шт.

1-12

DCP-002A

CAP

#0765

1шт.

10

X820-045151

TEE-R/TYPE,ORFS

#0221

1шт.

1-13

K84785037301030

SEAL KIT

NOT SHOWN #0012 - #0764

1шт.

1-13

AS568-3

SEAL KIT

#0765

1шт.

12

P010-110002

CONNECTOR

#0151 - #0220

3шт.

12

X500-110001

CONNECTOR-ORFS

#0221

3шт.

1-2

31Y1-21320

PIPE ASSY-BV,LH

#0022

1шт.

1-2

31Y1-20471

PIPE ASSY-BV,LH

#0023 - #0130

1шт.

1-2

31Y1-22000

PIPE ASSY-BV,LH

#0131

1шт.

K1-3

Y171-024004

O-RING

2шт.

1-4

S107-120556

BOLT-SOCKET

#0130

8шт.

15

31E6-90551

BLOCK

#0815

1шт.

1-4

S107-120556

BOLT-SOCKET

#0131

4шт.

16

P920-047012

HOSE ASSY-ORFS 0X45

#0221 - #0814

1шт.

1-5

@

BAND ASSY-LH

NOT

1шт.

17

X500-120001

CONNECTOR-ORFS

#0221 - #0814

2шт.

1-6

S107-120606

BOLT-SOCKET

#0131

4шт.

18

X530-110001

ELBOW-45,ORFS

#0221 - #0814

1шт.

*-2

31NB-52320

BOOM CYL ASSY-RH

#0022

1шт.

19

31N6-90550

ELBOW-90,ORFS

#0221

1шт.

*-2

31NB-52231

BOOM CYL ASSY-RH

#0023 - #0130

1шт.

20

31N4-22180

ADAPTOR-SWIVEL NUT

#0221 - #0814

1шт.

*-2

31NB-52232

BOOM CYL ASSY-RH

#0131 - #0832

1шт.

*-2

31NB-52233

BOOM CYL ASSY-RH

#0833 - #0947

1шт.

*-2

31NB-52234

BOOM CYL ASSY-RH

#0948

1шт.

2

@

BOOM CYL SUB

NOT

1шт.

2-1

31NA-95010

VALVE-SAFETY LOCK

#0012 - #0764

1шт.

2-1

31NA-90580

VALVE-SAFETY LOCK

#0765 - #0947

1шт.

2-1

31NA-95010

VALVE-SAFETY LOCK

#0948

1шт.

2-11

41143039960000

RELIFE VALVE

#0012 - #0764

1шт.

2-11

DRV-100A

RELIEF VALVE

#0765

1шт.

2-12

110418005000000

CAP

#0012 - #0764

1шт.

2-12

DCP-002A

CAP

#0765

1шт.

2-13

K84785037301030

SEAL KIT

NOT SHOWN #0012 - #0764

1шт.

2-13

AS568-3

SEAL KIT

#0765

1шт.

2-2

31Y1-21330

PIPE ASSY-BV,RH

#0022

1шт.

29

S621-011001

O-RING

#0815

8шт.

2-2

31Y1-20481

PIPE ASSY-BV,RH

#0023 - #0130

1шт.

2-2

31Y1-22010

PIPE ASSY-BV,RH

#0131

1шт.

K2-3

Y171-024004

O-RING

2шт.

2-4

S107-120556

BOLT-SOCKET

#0130

8шт.

2-4

S107-120556

BOLT-SOCKET

#0131

4шт.

2-5

@

BAND ASSY-RH

NOT

1шт.

2-6

S107-120606

BOLT-SOCKET

#0131

4шт.

3

P420-062057

HOSE ASSY-COMP 0X90

#0150

1шт.

3

P860-062058

HOSE ASSY-SYN 0X90

#0151 - #0220

1шт.

3

P930-062058

HOSE ASSY-ORFS 0X90

#0221

1шт.

4

P410-062066

HOSE ASSY-COMP 0X45

#0150

1шт.

4

P860-062063

HOSE ASSY-SYN 0X90

#0151 - #0220

1шт.

4

P930-062063

HOSE ASSY-ORFS 0X90

#0221

1шт.

5

P620-047016

HOSE ASSY-THD 0X90

#0084

1шт.

5

P620-047016

HOSE ASSY-THD 0X90

#0085 - #0150

3шт.

5

P620-047014

HOSE ASSY-THD 0X90

#0151 - #0220

3шт.

5

P930-047014

HOSE ASSY-ORFS 0X90

#0221

3шт.

6

P420-042016

HOSE ASSY-COMP 0X90

#0084

2шт.

7

P603-047020

HOSE ASSY-THD

#0220

1шт.

7

P913-047020

HOSE ASSY-ORFS 0X0

#0221 - #0814

1шт.

7

P933-047024

HOSE ASSY-ORFS 0X90

#0815

1шт.

8

31EG-90540

TEE-R/TYPE,S/NUT

#0150

1шт.

8

31EG-90540

TEE-R/TYPE,S/NUT

#0151 - #0220

2шт.

8

X840-525252

TEE-R/TYPE,SWIVEL,ORFS

#0221

2шт.

9

31E6-90680

TEE

#0220

1шт.

9

31N9-90550

TEE-R/TYPE,ORFS

#0221

2шт.

10

P320-040404

TEE-RUN TYPE

#0220

2шт.

10

X820-045151

TEE-R/TYPE,ORFS

#0221

1шт.

11

P030-110001

ELBOW-45

#0150

1шт.

12

P010-110002

CONNECTOR

#0150

2шт.

12

P010-110002

CONNECTOR

#0151 - #0220

3шт.

12

X500-110001

CONNECTOR-ORFS

#0221

3шт.

13

31E5-50325

SWITCH-PRESSURE

1шт.

13-1

31E5-50320

SWITCH-PRESSURE

1шт.

13-2

21E5-50230

HARNESS-EXT

1шт.

14

31E5-50330

VALVE-SHUT OFF

1шт.

15

31E6-90550

BLOCK

#0814

1шт.

15

31E6-90551

BLOCK

#0815

1шт.

16

P610-047012

HOSE ASSY-THD 0X45

#0220

1шт.

16

P920-047012

HOSE ASSY-ORFS 0X45

#0221 - #0814

1шт.

17

P010-120002

CONNECTOR

#0220

2шт.

17

X500-120001

CONNECTOR-ORFS

#0221 - #0814

2шт.

18

P030-110001

ELBOW-45

#0220

1шт.

18

X530-110001

ELBOW-45,ORFS

#0221 - #0814

1шт.

19

31E5-50350

ELBOW-90

#0220

1шт.

19

31N6-90550

ELBOW-90,ORFS

#0221

1шт.

20

31E6-90560

ADAPTOR-SWIVEL NUT

#0220

1шт.

20

31N4-22180

ADAPTOR-SWIVEL NUT

#0221 - #0814

1шт.

21

P220-110102

PLUG-HEX

#0814

1шт.

22

S631-011004

O-RING

#0814

10шт.

22

S631-011004

O-RING

#0815

6шт.

23

P391-040000

WASHER-COPPER

#0814

2шт.

24

S015-050456

BOLT-HEX

2шт.

25

S017-120556

BOLT-HEX

2шт.

26

S411-050006

WASHER-SPRING

2шт.

27

S411-120006

WASHER-SPRING

2шт.

28

S552-035146

CLAMP-BAND

10шт.

29

S621-011001

O-RING

#0221 - #0814

6шт.

29

S621-011001

O-RING

#0815

8шт.

30

S621-012001

O-RING

#0221

6шт.

K

31Y1-16110

SEAL KIT

SEE ILLUST #0084

1шт.

K

31Y1-16111

SEAL KIT

SEE ILLUST #0085 - #0947

1шт.

k

31Y1-16112

SEAL KIT

SEE ILLUST #0948

1шт.
