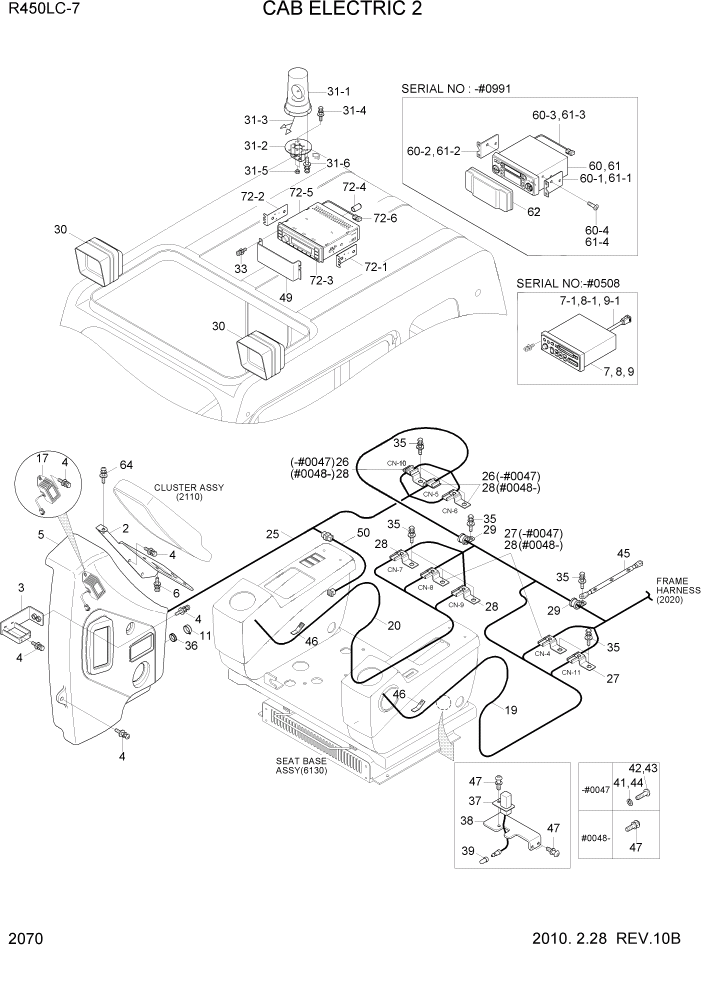

Запчасти Hyundai R450LC7 PAGE 2070 CAB ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

21N8-21011

BRACKET WA

1шт.

3

21N8-21070

BRACKET WA

1шт.

4

S035-061522

BOLT-W/WASHER

10шт.

5

21N8-21021

COVER-WIPER MOTOR

1шт.

6

S035-081522

BOLT-W/WASHER

4шт.

7

21N8-22010

CASSETTE RADIO

USA #0508

1шт.

7-1

375500043204

WIRE ASSY-20 H818

#0508

1шт.

8

21N8-22020

CASSETTE RADIO

EUROPE #0508

1шт.

8-1

375500043204

WIRE ASSY-20 H818

#0508

1шт.

9

21N8-22030

CASSETTE RADIO

GENERAL #0508

1шт.

9-1

375500043204

WIRE ASSY-20 H818

#0508

1шт.

11

21N8-20010

SOCKET-12V

OPTION

1шт.

17

21N8-20201

DC-DC CONVERTER ASSY

OPTION

1шт.

19

21N8-11160

HARNESS-CONSOLE,LH

#0001

1шт.

20

21N8-11150

HARNESS-CONSOLE,RH

#0047

1шт.

20

21N8-11151

HARNESS-CONSOLE,RH

#0048 - #0627

1шт.

20

21N4-02810

HARNESS-CONSOLE,RH

#0628

1шт.

25

21N8-11180

HARNESS-SIDE,RH

#0047

1шт.

25

21N8-11181

HARNESS-SIDE,RH

#0048

1шт.

26

25D1-10650

CLIP ASSY

2шт.

27

25D1-10660

CLIP ASSY

#0047

3шт.

27

25D1-10660

CLIP ASSY

#0048

1шт.

28

25D1-10640

CLIP ASSY

#0047

2шт.

28

25D1-10640

CLIP ASSY

#0048

6шт.

29

S543-280003

CLAMP-TUBE

2шт.

30

21N6-20210

WORK LAMP ASSY

2шт.

30-1

S866-240700

BULB

NOT SHOWN

1шт.

31

@

BEACON LAMP SUB

NOT

1шт.

31-1

21EK-10140

LAMP-BEACON

OPTION

1шт.

31-11

21EK-10330

BULB-H1, 70W

OPT, NOT SHOWN

1шт.

31-2

21N8-00581

BRACKET-BEACON LAMP

OPTION #0758

1шт.

31-2

21N8-00581BG

BRACKET-BEACON LAMP

#0759 - #0799

1шт.

31-3

21EK-20240

HARNESS-BEACON LAMP

OPTION

1шт.

31-4

S037-102026

BOLT-W/WASHER

OPTION

2шт.

31-5

S205-101006

NUT-HEX

OPTION

2шт.

31-6

S131-051546

SCREW-W/WASHER

OPTION

3шт.

33

S131-051046

SCREW-W/WASHER

4шт.

35

S035-102022

BOLT-W/WASHER

8шт.

36

S661-260300

CAP-RUBBER

1шт.

37

21M5-50250

SWITCH ASSY

SAFETY SWITCH

1шт.

38

21N8-21080

PLATE

1шт.

39

S890-107508

TUBE-PVC

1шт.

41

S411-040002

WASHER-SPRING

#0047

1шт.

42

S161-040102

SCREW-CROSS R/ROUND

#0047

1шт.

43

S161-050146

SCREW-CROSS R/ROUND

#0047

2шт.

44

S411-050002

WASHER-SPRING

#0047

2шт.

45

21EH-30720

STRAP-EARTH

1шт.

46

S591-000802

CLIP-HARNESS

#0048

2шт.

47

S161-040106

SCREW-CROSS R/ROUND

#0048

3шт.

49

21N6-10450

PLATE-C/RADIO COVER

#0509

1шт.

50

21N8-40190

EXT.HARNESS-A/RIDE SEAT

AIR RIDE SEAT #0358

1шт.

60

21N8-50010

CASSETTE RADIO ASSY

STD #0509 - #0823

1шт.

60

21N8-50050

CASSETTE RADIO ASSY

STD #0824 - #0991

1шт.

60-1

21N6-10480

BRACKET-LH

#0509 - #0991

1шт.

60-2

21N6-10490

BRACKET-RH

#0509 - #0991

1шт.

60-3

21N8-01600

HARNESS-EXT WIRE

#0509 - #0991

1шт.

60-4

S141-050102

SCREW-FLAT HD

#0509 - #0991

4шт.

61

21N8-40500

CD PLAYER ASSY

OPTION #0509 - #0991

1шт.

61-1

21N6-10480

BRACKET-LH

#0509 - #0991

1шт.

61-2

21N6-10490

BRACKET-RH

#0509 - #0991

1шт.

61-3

21N8-01600

HARNESS-EXT WIRE

#0509 - #0991

1шт.

61-4

S141-050102

SCREW-FLAT HD

#0509 - #0991

1шт.

62

21N8-40940

COVER-DUST

#0509

1шт.

72

21N8-50100

RADIO/USB PLAYER ASSY

#0992

1шт.

72-1

21LM-31010

BRACKET L

#0992

1шт.

72-2

21LM-31020

BRACKET R

#0992

1шт.

72-3

21LM-31030

CABLE-MP3

#0992

1шт.

72-4

21LM-31040

CAP

#0992

1шт.

72-5

21LM-31050

RADIO/USB BODY

#0992

1шт.

72-6

21N8-50110

HARNESS-EXT,WIRE

#0992

1шт.
