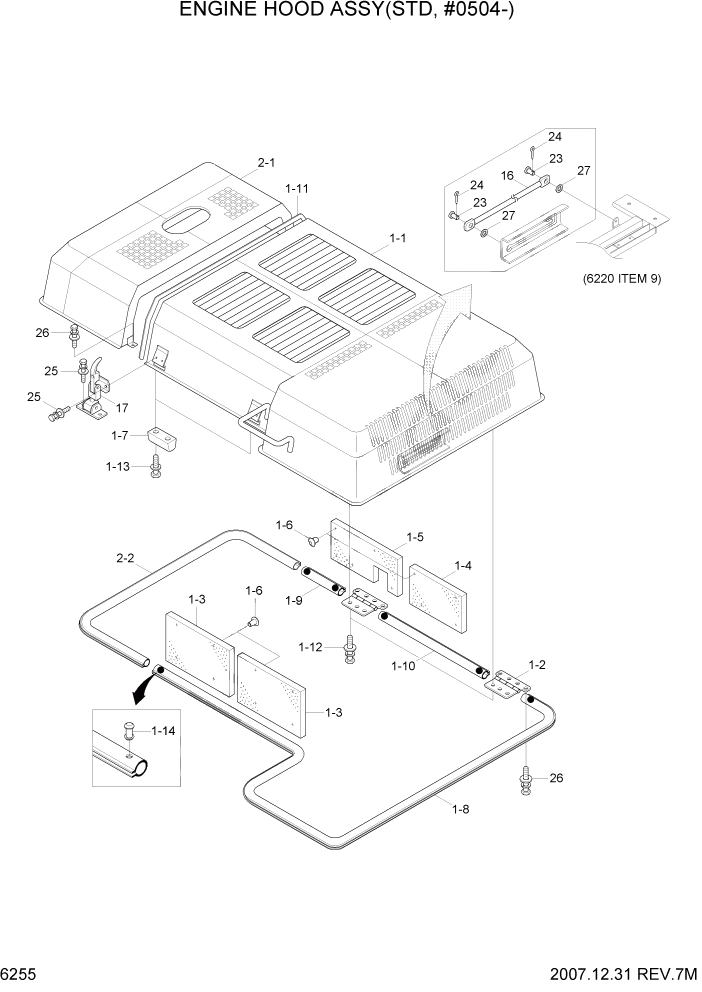

Запчасти Hyundai R450LC7 PAGE 6255 ENGINE HOOD ASSY(STD, #0504-) СТРУКТУРА

1

73NB-61000

ENGINE HOOD ASSY-LH

STD #0504 - #0758

1шт.

1

73NB-61000BG

ENGINE HOOD ASSY-LH

#0759

1шт.

1-1

73NB-61100

ENGINE HOOD WA-LH

#0758

1шт.

1-1

73NB-61100BG

ENGINE HOOD WA-LH

#0759

1шт.

1-2

71NB-51200

HINGE

#0758

2шт.

1-2

71NB-51200BG

HINGE

#0759

2шт.

1-3

73NB-61830

SPONGE

2шт.

1-4

73NB-61840

SPONGE

1шт.

1-5

73NB-61850

SPONGE

1шт.

1-6

71EM-51580

CAP-STUD BOLT

17шт.

1-7

71N6-51140

STOPPER-A

2шт.

1-8

S771-036500

WEATHER STRIP

1шт.

1-9

S771-002500

WEATHER STRIP

1шт.

1-1

S771-006100

WEATHER STRIP

1шт.

1-11

S771-016300

WEATHER STRIP

1шт.

1-12

S037-122552

BOLT-W/WASHER

9шт.

1-13

S132-063052

SCREW-W/WASHER

4шт.

1-14

91EK-12010

RIVET

8шт.

2

73NB-61500

ENGINE HOOD ASSY-RH

STD #0504 - #0513

1шт.

2

73NB-61501

ENGINE HOOD ASSY-RH

STD #0514 - #0758

1шт.

2

73NB-61501BG

ENGINE HOOD ASSY-RH

#0759

1шт.

2-1

73NB-61510

ENGINE HOOD WA-RH

#0513

1шт.

2-1

73NB-61511

ENGINE HOOD WA-RH

#0514 - #0758

1шт.

2-1

73NB-61511BG

ENGINE HOOD WA-RH

#0759

1шт.

2-2

S771-024000

WEATHER STRIP

1шт.

16

71EG-54960

STAY-ENG HOOD

1шт.

17

71N6-56400

CATCH ASSY

#0758

2шт.

17

71N6-56400BG

CATCH ASSY

#0759

2шт.

23

S491-100252

PIN-CLEVIS

2шт.

24

S501-080002

PIN-SELF LOCKING

2шт.

25

S035-082522

BOLT-W/WASHER

4шт.

26

S037-122552

BOLT-W/WASHER

12шт.

27

S441-120006

WASHER-HARDENED

2шт.
