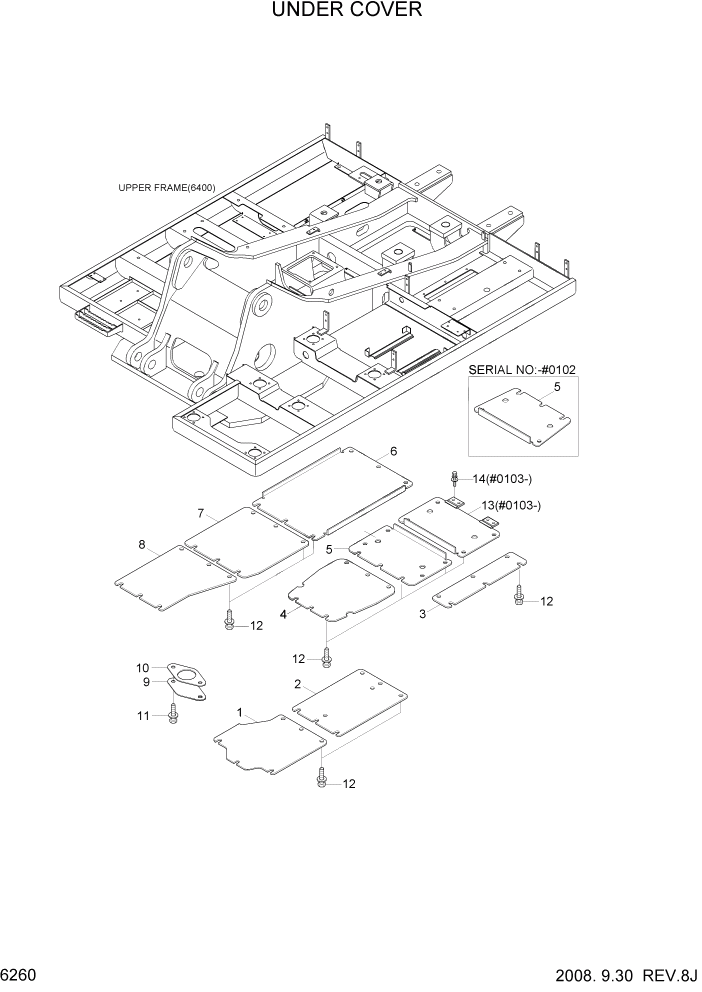

Запчасти Hyundai R360LC7A PAGE 6260 UNDER COVER СТРУКТУРА

1

41NA-10011

UNDER COVER-CAB(A)

#0077

1шт.

1

41NA-10011BG

UNDER COVER-CAB(A)

#0078

1шт.

2

41NA-10021

UNDER COVER-CAB(B)

#0077

1шт.

2

41NA-10021BG

UNDER COVER-CAB(B)

#0078

1шт.

3

41NA-10032

UNDER COVER-RAD

#0077

1шт.

3

41NA-10032BG

UNDER COVER-RAD

#0078

1шт.

4

41NA-10040

UNDER COVER-MCV

#0077

1шт.

4

41NA-10040BG

UNDER COVER-MCV

#0078

1шт.

5

41NA-10090

UNDER COVER-ENGINE

#0077

2шт.

5

41NA-10090BG

UNDER COVER-ENGINE

#0078 - #0102

2шт.

5

41NA-10091BG

UNDER COVER-ENG

#0103

1шт.

6

41NA-10061

UNDER COVER-PUMP

#0077

1шт.

6

41NA-10061BG

UNDER COVER-PUMP

#0078

1шт.

7

41NA-10070

UNDER COVER-H/TANK

#0077

1шт.

7

41NA-10070BG

UNDER COVER-H/TANK

#0078

1шт.

8

41NA-10080

UNDER COVER-F/TANK

#0077

1шт.

8

41NA-10080BG

UNDER COVER-F/TANK

#0078

1шт.

9

41N6-10100

UNDER COVER

#0077

1шт.

9

41N6-10100BG

COVER

#0078 - #0108

1шт.

9

41N6-10100

UNDER COVER

#0109

1шт.

10

41E9-1306

SEAL

1шт.

11

S037-102056

BOLT-W/WASHER

#0144

2шт.

11

S037-102556

BOLT-W/WASHER

#0145

2шт.

12

S037-102566

BOLT-W/WASHER

#0102

52шт.

12

S037-102566

BOLT-W/WASHER

#0103

51шт.

13

41NA-10100BG

UNDER COVER WA-ENG

#0103

1шт.

14

S037-103056

BOLT-W/WASHER

#0103

4шт.
