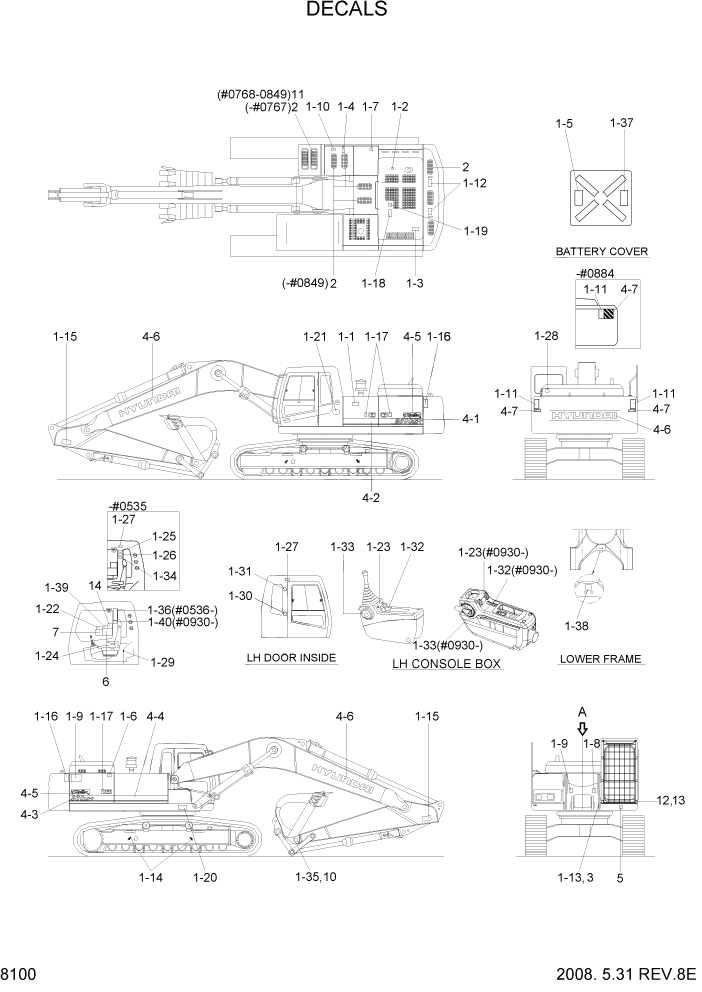

Запчасти Hyundai R360LC7 PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

1

91NA-00100

DECAL KIT

#0146

1шт.

1

91NA-00101

DECAL KIT

#0147 - #0535

1шт.

1

91NA-00102

DECAL KIT

#0536 - #0672

1шт.

1

91NA-00103

DECAL KIT

#0673 - #0767

1шт.

1

91NA-00104

DECAL KIT

#0768 - #0929

1шт.

1

91NA-00105

DECAL KIT

#0930

1шт.

1

94NA-00101

DECAL KIT

UPGRADE CABIN #0930

1шт.

1-1

91N6-01102

AIR CLEANER FILTER

1шт.

1-2

91N6-01111

TURBO COVER

1шт.

1-3

91N6-01121

RADIATOR CAP

1шт.

1-4

91N6-01131

FUELING

1шт.

1-5

91N6-02120

BATTERY ACCIDENT

1шт.

1-6

91N6-03102

HYD OIL LEVEL

1шт.

1-7

91N6-03111

HYD OIL LUBRICATION

1шт.

1-8

91N6-03121

REDUCTION GEAR GREASE

1шт.

1-9

91N6-03130

HIGH PRESSURE HOSE

2шт.

1-1

91N6-03140

FALLING

1шт.

1-11

91N6-04122

DECAL-KEEP CLEAR/RR

2шт.

1-12

91N6-04132

LIFTING EYE

2шт.

1-13

91E1-14110

NAME PLATE

STD

1шт.

1-13

91E1-14130

NAME PLATE

EU

1шт.

1-14

91N6-05110

SLINGING IDEOGRAM

4шт.

1-15

91N6-06110

KEEP CLEAR/ATTACH

2шт.

1-16

91N6-07102

DECAL-KEEP CLEAR,SIDE

2шт.

1-17

91N6-07112

STAY FIX

3шт.

1-18

91N6-07121

SHEARING

1шт.

1-19

91N6-07131

NO STEP-ENGINE HOOD

1шт.

1-2

91N6-07141

TRANSPORTING

1шт.

1-21

91E1-27110

LOW EMISSION ENG

1шт.

1-22

91N6-07201

CONTROL IDEOGRAM

1шт.

1-23

91N6-07212

CONTROL IDEOGRAM-LH

1шт.

1-23

92N6-07210

CONTROL IDEOGRAM-LH

UPGRADE CABIN #0930

1шт.

1-24

91N6-07221

CONTROL IDEOGRAM-RH

1шт.

1-24

92N6-07220

CONTROL IDEOGRAM-RH

UPGRADE CABIN #0930

1шт.

1-25

91N6-07231

REF OPERATOR MANUAL

#0535

1шт.

1-26

91N6-07241

DECAL-MAX HEIGHT

#0535

1шт.

1-27

91N6-07252

SAFETY FRONT WINDOW

#0535

2шт.

1-27

91N6-07252

SAFETY FRONT WINDOW

#0536

1шт.

1-28

91N6-07261

ALTERNATE EXIT

1шт.

1-29

91N6-07272

AIR CONDITIONER FILTER

1шт.

1-3

91N6-07280

HAMMER

1шт.

1-31

91N6-07290

DECAL-FIRE EXTINGUISHER

1шт.

1-32

91N6-07301

CONSOLE BOX-TILTING

1шт.

1-32

92N6-07300

DECAL-C/BOX TILTING

UPGRADE CABIN #0930

1шт.

1-33

91N6-07311

SAFETY LEVER

1шт.

1-33

92N6-07310

DECAL-SAFETY LEVER

UPGRADE CABIN #0930

1шт.

1-34

91N6-07320

DECAL-INTERFERENCE

#0535

1шт.

1-35

91N6-06410

NAME PLATE-BUCKET

#0147

1шт.

1-36

91N6-07370

DECAL-CABIN RH PILLAR

#0536

1шт.

1-37

91LB-01350

ECU CONNECTOR

#0673

1шт.

1-38

91N6-05120

TIE

#0768

2шт.

1-39

91N6-07390

TURBOCHARGER

#0768

1шт.

1-4

91N6-07330

LOCKING CLAMP

#0930

1шт.

2

91E1-26300

STEP TREAD

#0767

9шт.

2

91E1-26300

STEP TREAD

#0768 - #0849

8шт.

2

91E1-26300

STEP TREAD

#0850

3шт.

3

91EK-12010

RIVET

4шт.

4

91NA-10100

TRADE MARK KIT

#0094

1шт.

4-1

91NA-17110

MODEL NAME-LH

#0094

1шт.

4-1

91NA-17111

MODEL NAME-LH/RR

#0095

1шт.

4-2

91NA-17120

MODEL NAME-RH

#0094

1шт.

4-2

91NA-17210

MODEL NAME-LH/FR

#0095

1шт.

4-3

91NA-17121

MODEL NAME-RH/RR

#0095

1шт.

4-4

91N9-17220

MODEL NAME-RH/FR

#0095

1шт.

4-5

91N8-17140

LOGO-ROBEX

2шт.

4-6

91N6-21130

DECAL-BOOM/CWT

1шт.

4-7

91N6-04101

DECAL-KEEP CLEAR/REF

#0884

1шт.

4-7

91N6-04170

DECAL-REFLECTING

#0885

1шт.

5

91N6-22180

DECAL-NOISE LWA/108DB

EU #0415

1шт.

5

91N6-22170

DECAL-NOISE LWA/107DB

#0416 - #0658

1шт.

5

91N6-22150

DECAL-NOISE LWA/105DB

#0659

1шт.

6

91NA-17160

SERVICE INSTRUCTION

#0064

1шт.

6

91NA-17161

SERVICE INSTRUCTION

#0065 - #0260

1шт.

6

91NA-17162

SERVICE INSTRUCTION

#0261 - #0340

1шт.

6

91NA-17163

SERVICE INSTRUCTION

#0341 - #0558

1шт.

6

91NA-17164

SERVICE INSTRUCTION

#0559

1шт.

7

91NA-17410

LIFTING CHART

6.45BM+3.20AM #0001

1шт.

7

91NA-17420

LIFTING CHART

6.45BM+2.50AM #0001

1шт.

7

91NA-17430

LIFTING CHART

6.45BM+3.90AM #0001

1шт.

7

91NA-17440

LIFTING CHART

6.45BM+4.30AM #0108

1шт.

7

91NA-17510

LIFTING CHART

6.15BM+2.50AM #0065

1шт.

10

91N6-06420

METAL TACK

#0147

4шт.

11

91N6-27510

DECAL-SAFETY WORK

#0768 - #0849

2шт.

12

91N6-01280

FOPS FOG PLATE

OPT, FOG GUARD #0768

1шт.

13

91EK-12010

RIVET

OPT, FOG GUARD #0768

4шт.

14

91LB-11170

DECAL-START PROCEDURE

1шт.
