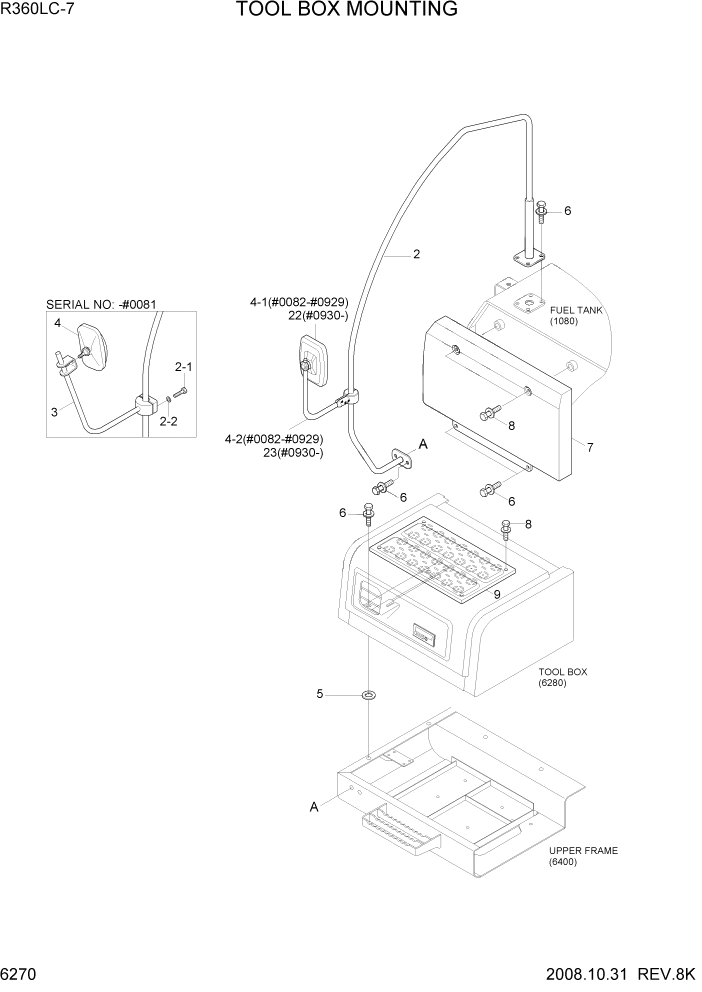

Запчасти Hyundai R360LC7 PAGE 6270 TOOL BOX MOUNTING СТРУКТУРА

2

71N8-42005

PIPE WA

#0929

1шт.

2

71N8-42005BG

PIPE WA

#0930

1шт.

2-1

S015-080402

BOLT-HEX

2шт.

2-2

S411-080002

WASHER-SPRING

2шт.

3

71N8-45000

STAY-MIRROR

#0081

1шт.

4

71N8-46000

MIRROR

#0081

1шт.

4

71N8-48000

MIRROR & STAY ASSY-RH

#0082 - #0146

1шт.

4

71N8-48001

MIRROR & STAY ASSY-RH

#0147 - #0929

1шт.

4

71N8-48001BG

MIRROR & STAY ASSY-RH

#0930 - #0929

1шт.

4-1

71N8-47100

MIRROR

#0082 - #0929

1шт.

4-2

71N8-48100

STAY ASSY-RH

#0082 - #0146

1шт.

4-2

71N8-48101

STAY ASSY-RH

#0147 - #0929

1шт.

4-2

71N8-48101BG

STAY ASSY-RH

#0930 - #0929

1шт.

5

S390-015040

SHIM-ROUND(0.5T)

4шт.

6

S037-122552

BOLT-W/WASHER

#0849

8шт.

6

S037-122552

BOLT-W/WASHER

#0850

14шт.

7

71N8-44100

COVER-FUEL TANK

#0001

1шт.

8

S037-121552

BOLT-W/WASHER

#0850

4шт.

9

72N8-49100

FOOT BOARD-TOOL BOX

#0850

1шт.
