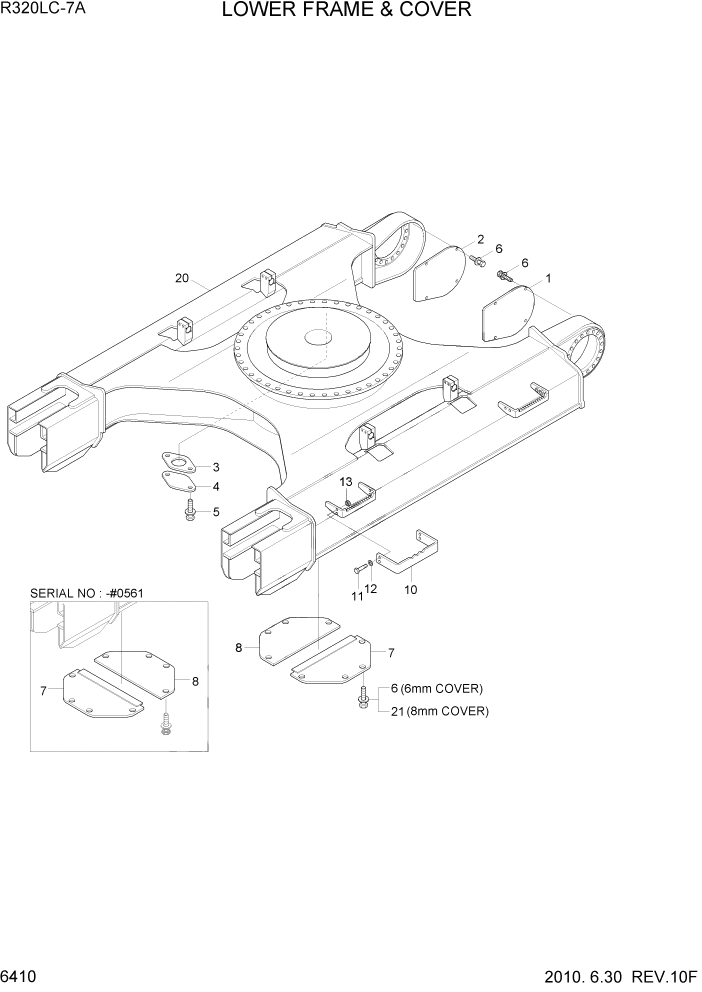

Запчасти Hyundai R320LC7A PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51N8-11112

COVER WA-T/MOTOR,LH

#0151

1шт.

1

51N8-11112BG

COVER WA-T/MOTOR,LH

#0152

1шт.

2

51N8-11122

COVER WA-T/MOTOR,RH

#0151

1шт.

2

51N8-11122BG

COVER WA-T/MOTOR,RH

#0152

1шт.

3

41N6-10100

COVER

#0151

1шт.

3

41N6-10100BG

COVER

#0152 - #0272

1шт.

3

41N6-10100

COVER

#0273

1шт.

4

41E9-1306

SEAL

1шт.

5

S037-102056

BOLT-W/WASHER

2шт.

6

S037-123556

BOLT-W/WASHER

16шт.

6

S037-124556

BOLT-W/WASHER

OPT, ADDITION #0211

8шт.

7

51N6-11211

COVER-BOTTOM(A)

STD, 6MM #0151

1шт.

7

51N6-11211BG

COVER-BOTTOM(A)

STD, 6MM #0152

1шт.

7

51N6-11230BG

COVER-BOTTOM(A)

OPT, 8MM #0211

1шт.

8

51N6-11221

COVER-BOTTOM(B)

STD, 6MM #0151

1шт.

8

51N6-11221BG

COVER-BOTTOM(B)

STD, 6MM #0152

1шт.

8

51N6-11240BG

COVER-BOTTOM(B)

OPT, 8MM #0211

1шт.

10

51N6-02640

BOARD-FOOT

700MM SHOE #0151

1шт.

10

51N6-02640BG

BOARD-FOOT

700MM SHOE #0152

1шт.

10

51N6-02650

BOARD-FOOT

800MM SHOE #0151

1шт.

10

51N6-02650BG

BOARD-FOOT

800MM SHOE #0152

1шт.

10

51N6-02660

BOARD-FOOT

900MM SHOE #0151

1шт.

10

51N6-02660BG

BOARD-FOOT

900MM SHOE #0152

1шт.

11

S017-160552

BOLT-HEX

16шт.

12

S441-160002

WASHER-HARDENED

32шт.

13

S207-161002

NUT-HEX

10шт.

20

51N9-00012

LOWER FRAME WA

STD #0151

1шт.

20

51N9-00012BG

LOWER FRAME WA

STD #0152 - #0209

1шт.

20

51N9-00013BG

LOWER FRAME WA

STD #0210

1шт.

20

51N8-06012

LOWER FRAME WA

HIGH WALKER #0151

1шт.

20

51N8-06012BG

LOWER FRAME WA

HIGH WALKER #0152 - #0209

1шт.

20

51N8-06013BG

LOWER FRAME WA

HIGH WALKER #0210

1шт.

20

51N9-05010

LOWER FRAME WA

NARROW TRACK #0151

1шт.

20

51N9-05010BG

LOWER FRAME WA

NARROW TRACK #0152

1шт.

21

S037-124556

BOLT-W/WASHER

#0211

8шт.
