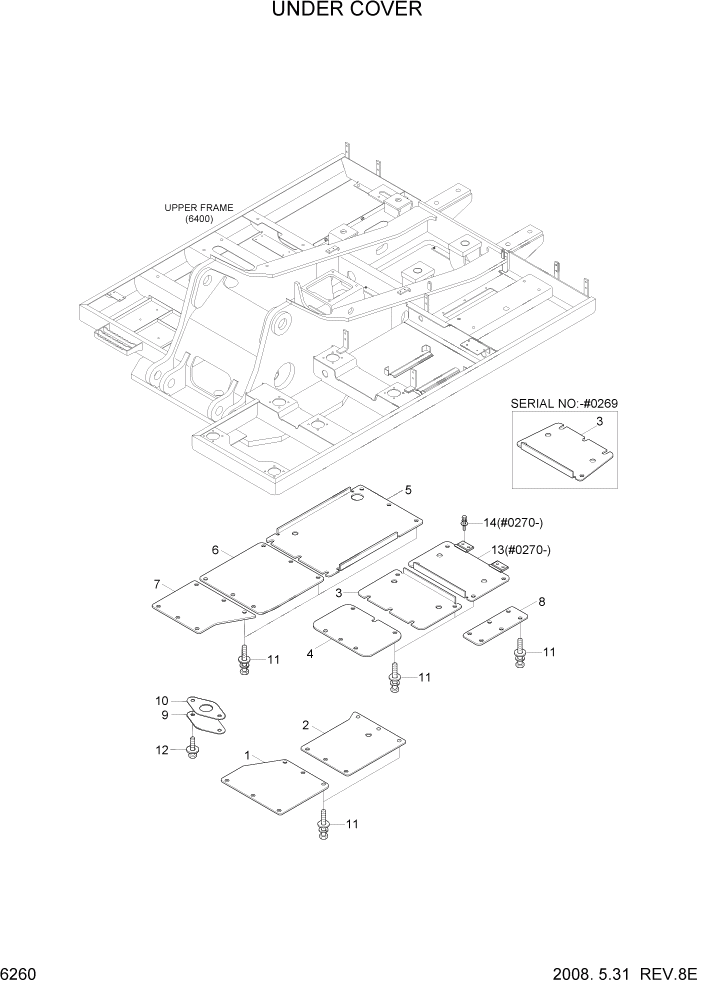

Запчасти Hyundai R320LC7A PAGE 6260 UNDER COVER СТРУКТУРА

1

41N9-15231

UNDER COVER-CAB,A

#0151

1шт.

1

41N9-15231BG

UNDER COVER-CAB,A

#0152

1шт.

2

41N8-15222

UNDER COVER-CAB,B

#0151

1шт.

2

41N8-15222BG

UNDER COVER-CAB,B

#0152

1шт.

3

41N9-15211

UNDER COVER-ENGINE

#0151

2шт.

3

41N9-15211BG

UNDER COVER-ENG

#0152 - #0269

2шт.

3

41N9-15211BG

UNDER COVER-ENG

#0270

1шт.

4

41N8-15242

UNDER COVER-MCV

#0151

1шт.

4

41N8-15242BG

UNDER COVER-MCV

#0152

1шт.

5

41N9-15220

UNDER COVER-PUMP

#0151

1шт.

5

41N9-15220BG

UNDER COVER-PUMP

#0152

1шт.

6

41N8-15261

UNDER COVER-HYD

#0151

1шт.

6

41N8-15261BG

UNDER COVER-HYD

#0152

1шт.

7

41N8-15270

UNDER COVER-FUEL

#0151

1шт.

7

41N8-15270BG

UNDER COVER-FUEL

#0152

1шт.

8

41N8-15280

UNDER COVER-RAD

#0151

1шт.

8

41N8-15280BG

UNDER COVER-RADIATOR

#0152

1шт.

8

41N8-15280BG

UNDER COVER-RADIATOR

#0152

1шт.

9

41N6-10100

COVER

1шт.

8

41N6-10100BG

COVER

#0152

1шт.

10

41E9-1306

SEAL

1шт.

11

S037-102566

BOLT-W/WASHER

#0269

52шт.

11

S037-102566

BOLT-W/WASHER

#0270

51шт.

12

S037-102056

BOLT W/WASHER-HEX

#0324

2шт.

12

S037-102556

BOLT-W/WASHER

#0325

2шт.

13

41N8-15300BG

UNDER COVER-ENG

#0270

1шт.

14

S037-103056

BOLT-W/WASHER

#0270

4шт.
