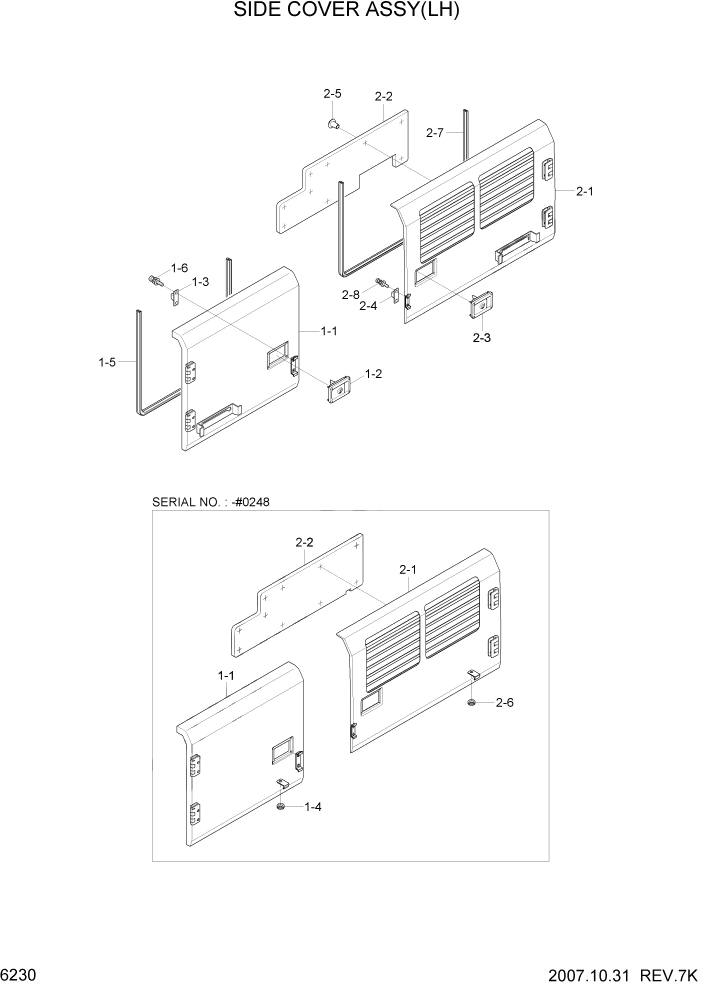

Запчасти Hyundai R320LC7A PAGE 6230 SIDE COVER ASSY(LH) СТРУКТУРА

1

71N8-62100

SIDE COVER ASSY-LH,FR

BLACK #0021

1шт.

1

71N8-62100Y

SIDE COVER ASSY-LH,FR

YELLOW #0022 - #0248

1шт.

1

74N8-62100

SIDE COVER ASSY-LH,FR

#0249

1шт.

1-1

71N8-62110

SIDE COVER WA-LH,FR

1шт.

1-2

71EE-52520

CATCH ASSY

#0021

1шт.

1-2

74N8-52520

CATCH ASSY

#0022

1шт.

1-3

71EE-53531

STOPPER-A

1шт.

1-4

S681-100400

GROMMET

#0248

1шт.

1-5

S772-024000

WEATHER STRIP

1шт.

1-6

S035-061522

BOLT-W/WASHER

2шт.

2

71NA-62200

SIDE COVER ASSY-LH(RR)

BLACK #0248

1шт.

2

71NA-62200Y

SIDE COVER ASSY-LH/RR

YELLOW #0022 - #0248

1шт.

2

72NA-62200

SIDE COVER ASSY-LH(RR)

#0249

1шт.

2-1

71NA-62210

SIDE COVER WA-LH(RR)

1шт.

2-2

71NA-62230

SPONGE

1шт.

2-3

71EE-52520

CATCH ASSY

#0021

1шт.

2-3

74N8-52520

CATCH ASSY

#0022

1шт.

2-4

71EE-53531

STOPPER-A

1шт.

2-5

71EM-51580

CAP-STUD BOLT

15шт.

2-6

S681-100400

GROMMET

#0248

1шт.

2-7

S772-027500

WEATHER STRIP

1шт.

2-8

S035-061522

BOLT-W/WASHER

4шт.
