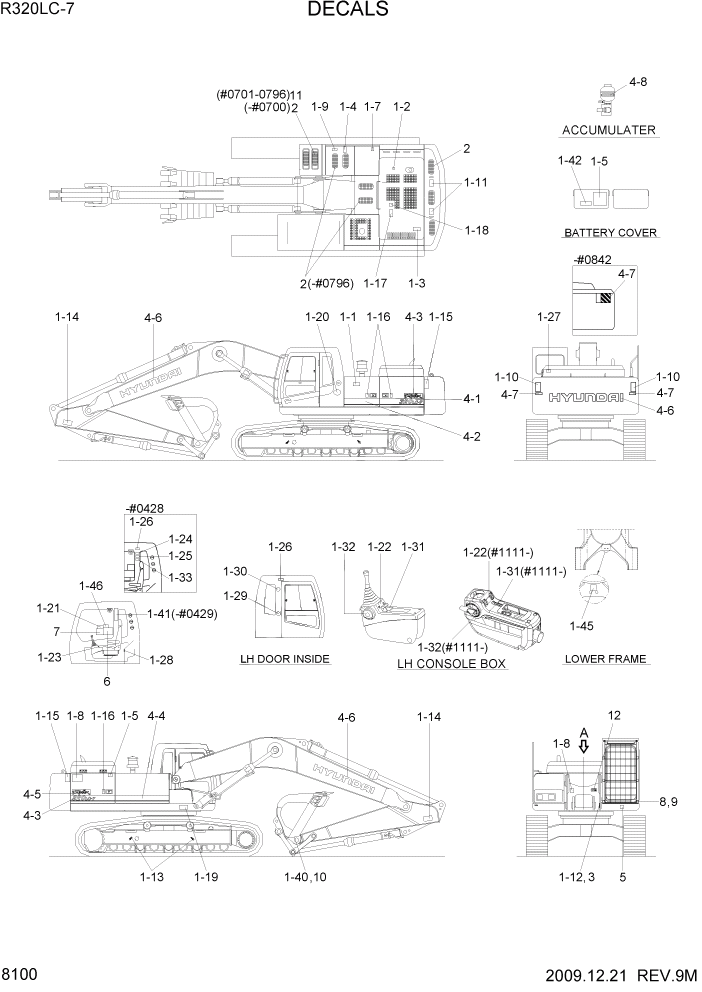

Запчасти Hyundai R320LC7 PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

1

91N9-00100

DECAL KIT

#0106

1шт.

1

91N8-00104

DECAL KIT

#0107 - #0428

1шт.

1

91N8-00105

DECAL KIT

#0429 - #0554

1шт.

1

91N8-00106

DECAL KIT

#0555 - #0700

1шт.

1

91N8-00107

DECAL KIT

#0701

1шт.

1

94N8-00100

DECAL KIT

UPGRADE CABIN #1111

1шт.

1-1

91N6-01102

AIR CLEANER FILTER

1шт.

1-2

91N6-01111

TURBOCHARGER COVER

1шт.

1-3

91N6-01121

RADIATOR CAP

1шт.

1-4

91N6-01131

FUELING

1шт.

1-5

91N6-02120

BATTERY ACCIDENT

1шт.

1-6

91N6-03102

HYD OIL LEVEL

1шт.

1-7

91N6-03111

HYD OIL LUBRICATION

1шт.

1-8

91N6-03130

HIGH PRESSURE HOSE

2шт.

1-9

91N6-03140

FALLING

1шт.

1-1

91N6-04122

KEEP CLEAR/RR

2шт.

1-11

91N6-04132

LIFTING EYE

2шт.

1-12

91E1-14110

NAME PLATE

1шт.

1-12

91E1-14130

NAME PLATE

EUROPE

1шт.

1-13

91N6-05110

SLINGING IDEOGRAM

4шт.

1-14

91N6-06110

KEEP CLEAR-ATTACH

2шт.

1-15

91N6-07102

KEEP CLEAR

2шт.

1-16

91N6-07112

STAY FIX

3шт.

1-17

91N6-07121

SHEARING

1шт.

1-18

91N6-07131

NO STEP

1шт.

1-19

91N6-07141

TRANSPORTING

1шт.

1-2

91E1-27110

LOW EMISSION ENGINE

1шт.

1-21

91N6-07201

CONTROL IDEOGRAM

1шт.

1-22

91N6-07212

CONTROL IDEOGRAM-LH

1шт.

1-22

92N6-07210

CONTROL IDEOGRAM-LH

UPGRADE CABIN #1111

1шт.

1-23

91N6-07221

CONTROL IDEOGRAM-RH

1шт.

1-23

92N6-07220

CONTROL IDEOGRAM-RH

UPGRADE CABIN #1111

1шт.

1-24

91N6-07231

REF OPERATOR MANUAL

#0428

1шт.

1-25

91N6-07241

MAX HEIGHT

#0428

1шт.

1-26

91N6-07252

SAFETY FRONT WINDOW

#0428

2шт.

1-26

91N6-07252

SAFETY FRONT WINDOW

#0429

1шт.

1-27

91N6-07261

ALTERNATE EXIT

1шт.

1-28

91N6-07272

AIR CONDITIONER FILTER

1шт.

1-29

91N6-07280

HAMMER

1шт.

1-3

91N6-07290

FIRE

1шт.

1-31

91N6-07301

CONSOLE BOX TILTING

1шт.

1-31

92N6-07300

CONSOLE BOX TILTING

UPGRADE CABIN #1111

1шт.

1-32

91N6-07311

SAFETY LEVER

1шт.

1-32

92N6-07310

SAFETY LEVER

UPGRADE CABIN #1111

1шт.

1-33

91N6-07320

INTERFERENCE

#0428

1шт.

1-4

91N6-06410

NAME PLATE-BUCKET

#0107

1шт.

1-41

91N6-07370

CABIN RH PILLAR

#0429

1шт.

1-42

91LB-06350

MCU CONNECT

#0555

1шт.

1-45

91N6-05120

TIE

#0701

2шт.

1-46

91N6-07390

TURBOCHARGER

#0701

1шт.

2

91E1-26300

STEP TREAD

#0700

9шт.

2

91E1-26300

STEP TREAD

#0701 - #0796

8шт.

2

91E1-26300

STEP TREAD

#0797

3шт.

3

91EK-12010

RIVET

4шт.

4

91N9-10100

TRADE MARK KIT

#0047

1шт.

4

91N9-10200

TRADE MARK KIT

NLC #0008 - #0047

1шт.

4-1

91N9-17110

MODEL NAME-LH

#0047

1шт.

4-1

91N9-17111

MODEL NAME-LH/RR

#0048 - #1118

1шт.

4-1

91N9-17112

MODEL NAME

#1119

1шт.

4-1

91N9-18110

MODEL NAME-LH

NLC #0008 - #0047

1шт.

4-1

91N9-18111

MODEL NAME-LH/RR

NLC #0048 - #1118

1шт.

4-1

91N9-18112

MODEL NAME

NLC #1119

1шт.

4-2

91N8-17210

MODEL NAME-LH/FR

#0048 - #1118

1шт.

4-3

91N9-17120

MODEL NAME-RH

#0047

1шт.

4-3

91N9-17121

MODEL NAME-RH/RR

#0048 - #1118

1шт.

4-3

91N9-18120

MODEL NAME-RH

NLC #0008 - #0047

1шт.

4-3

91N9-18121

MODEL NAME-RH/RR

NLC #0048 - #1118

1шт.

4-4

91N9-17220

MODEL NAME-RH/FR

#0048

1шт.

4-5

91N8-17140

LOGO-ROBEX

2шт.

4-6

91N6-21130

DECAL-BOOM/CWT

3шт.

4-7

91N6-04101

KEEP CLEAR-REF

#0482

2шт.

4-7

91N6-04170

REFLECTING

#0483

2шт.

4-8

91N6-03200

ACCUMULATOR

#1229

1шт.

5

91N6-22180

DECAL-NOISE LWA/108DB

#0047

1шт.

5

91N6-22170

DECAL-NOISE LWA/107DB

#0048 - #0541

1шт.

5

91N6-22150

DECAL-NOISE LWA/105DB

#0542

1шт.

6

91N9-17160

SERVICE INSTRUCTION

#0007

1шт.

6

91N9-17161

SERVICE INSTRUCTION

#0008 - #0215

1шт.

6

91N9-17162

SERVICE INSTRUCTION

#0216 - #0439

1шт.

6

91N9-17163

SERVICE INSTRUCTION

#0440 - #1263

1шт.

6

91N9-17164

SERVICE INSTRUCTION

#1264 - #1702

1шт.

6

91N9-17165

SERVICE INSTRUCTION

#1703 - #1813

1шт.

6

91N9-17166

SERVICE INSTRUCTION

#1814

1шт.

7

91N9-17400

KIT-LIFTING CHART

1шт.

7-1

91N9-17410

DECAL-LIFTING CHART

6.45BM+3.20AM #0001

1шт.

7-2

91N9-17420

LIFTING CHART

6.45BM+2.20AM #0001

1шт.

7-3

91N9-17430

LIFTING CHART

6.45BM+2.50AM #0001

1шт.

7-4

91N9-17440

LIFTING CHART

6.45BM+4.05AM #0001

1шт.

7-5

91N9-17450

LIFTING CHART

6.15BM+2.20AM #0001

1шт.

7-6

91N9-17460

LIFTING CHART

6.15BM+2.50AM #0001

1шт.

7

91N9-18400

LIFTING CHART

#0008

1шт.

7-1

91N9-18410

LIFTING CHART(NLC)

6.45BM+3.20AM #0008

1шт.

7-2

91N9-18420

LIFTING CHART(NLC)

6.45BM+2.20AM #0008

1шт.

7-3

91N9-18430

LIFTING CHART(NLC)

6.45BM+2.50AM #0008

1шт.

7-4

91N9-18440

LIFTING CHART(NLC)

6.45BM+4.05AM #0008

1шт.

7-5

91N9-18450

LIFTING CHART(NLC)

6.15BM+2.20AM #0008

1шт.

7

91N9-17500

KIT-LIFTING CHART

#0008

1шт.

7-1

91N9-17510

LIFTING CHART(H/WALK)

6.45BM+3.20AM #0008

1шт.

7-2

91N9-17520

LIFTING CHART(H/WALK)

6.45BM+2.20AM #0008

1шт.

7-3

91N9-17530

LIFTING CHART(H/WALK)

6.45BM+2.50AM #0008

1шт.

7-4

91N9-17540

LIFTING CHART(H/WALK)

6.45BM+4.05AM #0008

1шт.

7-5

91N9-17550

LIFTING CHART(H/WALK)

6.15BM+2.20AM #0008

1шт.

8

91N6-01280

FOPS FOG PLATE

OPTION #0701

1шт.

9

91EK-12010

RIVET

OPTION #0701

4шт.

10

91N6-06420

METAL TACK

#0107

4шт.

11

91N6-27510

SAFETY

#0701 - #0796

2шт.

12

91N6-03121

REDUCTION GEAR GREASE

#1703

1шт.
