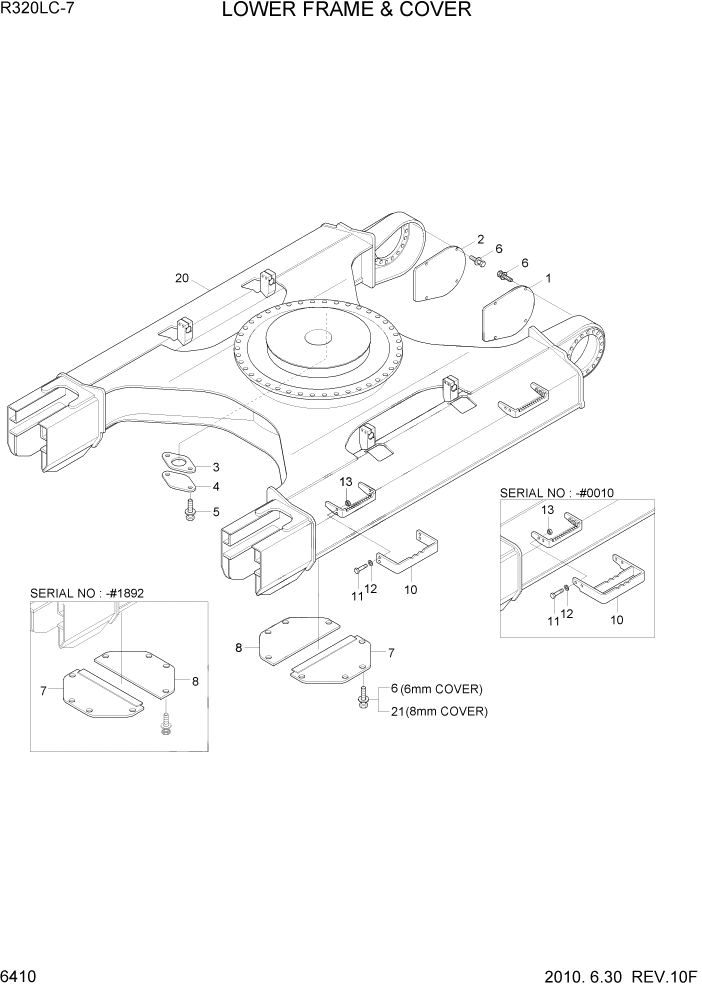

Запчасти Hyundai R320LC7 PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51N8-11112

COVER WA-T/MOTOR,LH

#1118

1шт.

1

51N8-11112BG

COVER WA-T/MOTOR,LH

#1119

1шт.

2

51N8-11122

COVER WA-T/MOTOR,RH

#1118

1шт.

2

51N8-11122BG

COVER WA-T/MOTOR,RH

#1119

1шт.

3

41N6-10100

COVER

1шт.

4

41E9-1306

SEAL

1шт.

5

S037-102056

BOLT-W/WASHER

2шт.

6

S037-123556

BOLT-W/WASHER

16шт.

6

S037-124556

BOLT-W/WASHER

OPT, ADDITION #0976

8шт.

7

51N6-11211

COVER-BOTTOM(A)

STD, 6MM #1118

1шт.

7

51N6-11211BG

COVER-BOTTOM(A)

STD, 6MM #1119

1шт.

7

51N6-11230

COVER-BOTTOM(A)

OPT, 8MM #0976 - #1118

1шт.

7

51N6-11230BG

COVER-BOTTOM(A)

OPT, 8MM #1119

1шт.

8

51N6-11221

COVER-BOTTOM(B)

STD, 6MM #1118

1шт.

8

51N6-11221BG

COVER-BOTTOM(B)

STD, 6MM #1119

1шт.

8

51N6-11240

COVER-BOTTOM(B)

OPT, 8MM #0976 - #1118

1шт.

8

51N6-11240BG

COVER-BOTTOM(B)

OPT, 8MM #1119

1шт.

10

51N8-20011

BOARD-FOOT

700MM SHOE #0010

1шт.

10

51N6-02640

BOARD-FOOT

700MM SHOE #0011 - #1118

1шт.

10

51N6-02640BG

BOARD-FOOT

#1119

1шт.

10

51N8-20051

BOARD-FOOT

800MM SHOE #0010

1шт.

10

51N6-02650

BOARD-FOOT

800MM SHOE #0011 - #1118

1шт.

10

51N6-02650BG

BOARD-FOOT

#1119

1шт.

10

51N8-20081

BOARD-FOOT

900MM SHOE #0010

1шт.

10

51N6-02660

BOARD-FOOT

900MM SHOE #0011 - #1118

1шт.

10

51N6-02660BG

BOARD-FOOT

#1119

1шт.

11

S017-160552

BOLT-HEX

16шт.

12

S441-160002

WASHER-HARDENED

32шт.

13

S207-161002

NUT-HEX

10шт.

20

51N9-00011

LOWER FRAME WA

#0010

1шт.

20

51N9-00012

LOWER FRAME WA

#0011 - #0975

1шт.

20

51N9-00013

LOWER FRAME WA

#0976 - #1118

1шт.

20

51N9-00013BG

LOWER FRAME WA

#1119

1шт.

20

51N8-06012

LOWER FRAME WA

HIGH WALKER #0008 - #0975

1шт.

20

51N8-06013

LOWER FRAME WA

#0976 - #1118

1шт.

20

51N8-06013BG

LOWER FRAME WA

#1119

1шт.

20

51N9-05010

LOWER FRAME WA

NARROW TRACK #0015 - #1118

1шт.

20

51N9-05010BG

LOWER FRAME WA

#1119

1шт.

21

S037-124556

BOLT-W/WASHER

#0976

8шт.
