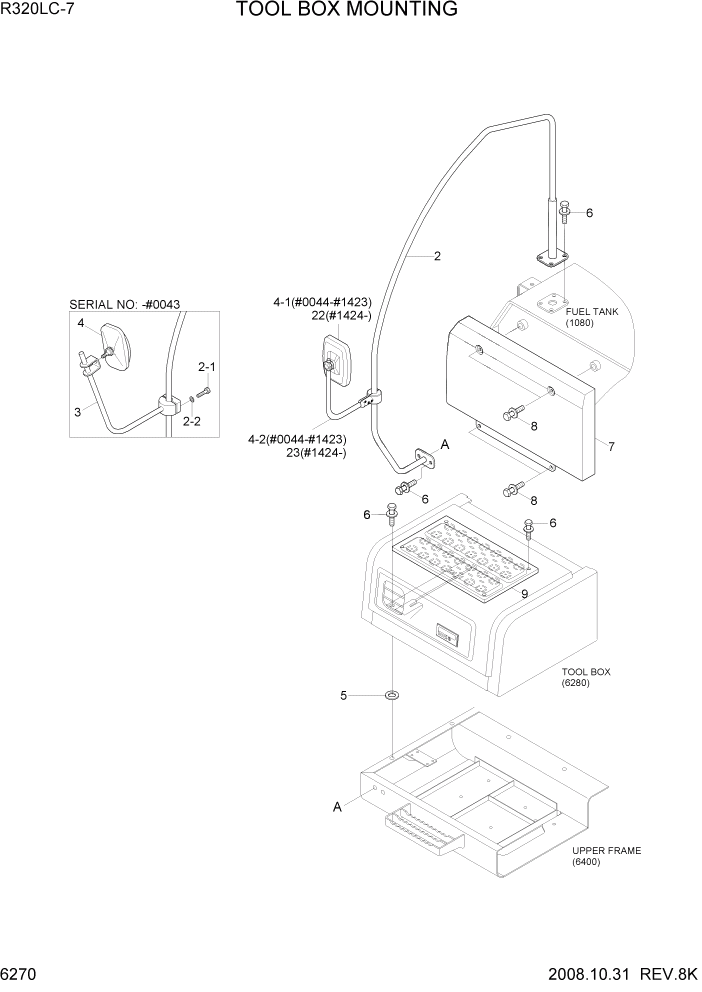

Запчасти Hyundai R320LC7 PAGE 6270 TOOL BOX MOUNTING СТРУКТУРА

2

71N8-42005

PIPE WA

#1118

1шт.

2

71N8-42005BG

PIPE WA

#1119

1шт.

2-1

S015-080402

BOLT-HEX

#0043

2шт.

2-2

S411-080002

WASHER-SPRING

#0043

2шт.

3

71N8-45000

STAY-MIRROR

#0043

1шт.

4

71N8-46000

MIRROR

#0043

1шт.

4

71N8-48000

MIRROR & STAY ASSY-RH

#0044 - #0102

1шт.

4

71N8-48001

MIRROR & STAY ASSY-RH

#0103 - #1118

1шт.

4

71N8-48001BG

MIRROR & STAY ASSY-RH

#1119 - #1423

1шт.

4-1

71N8-47100

MIRROR

#0044 - #1423

1шт.

4-2

71N8-48100

STAY ASSY-RH

#0044 - #0102

1шт.

4-2

71N8-48101

STAY ASSY-RH

#0103 - #1118

1шт.

4-2

71N8-48101BG

STAY ASSY-RH

#1119 - #1423

1шт.

5

S390-015040

SHIM-ROUND(0.5T)

4шт.

6

S037-122552

BOLT-W/WASHER

#0796

8шт.

6

S037-122552

BOLT-W/WASHER

#0797

14шт.

7

71N8-44100

COVER-FUEL TANK

#0001

1шт.

8

S037-122552

BOLT-W/WASHER

4шт.

9

72N8-49100

FOOT BOARD-TOOL BOX

#0797

1шт.

22

71N8-47101

MIRROR

#1424

1шт.

23

71N8-48102BG

STAY ASSY-RH

#1424

1шт.
